Product Description

EVER POWER specializes in the development and production of hyperboloid right-angle reducers. These products feature a compact, aesthetically pleasing design; they are oil-resistant and durable, requiring no regular lubrication. The gear materials and craftsmanship are professionally guaranteed for a long lifespan; they offer low noise and minimal vibration; and they are widely adaptable, with options for non-standard voltages and frequencies available or customizable. EVER POWER right-angle reducers are available in the following types: F Series: Flange-Mounted L Series: Floor-Mounted, Foot-Mounted S Series: Dual-Flat, with flat mounting surfaces on both sides Motor Power Range: 0.1kW-3.7kW EVER POWER is equipped with a professional reducer design and R&D team and can undertake the development and production of non-standard reducers. We welcome new and existing customers to visit us and collaborate with us.

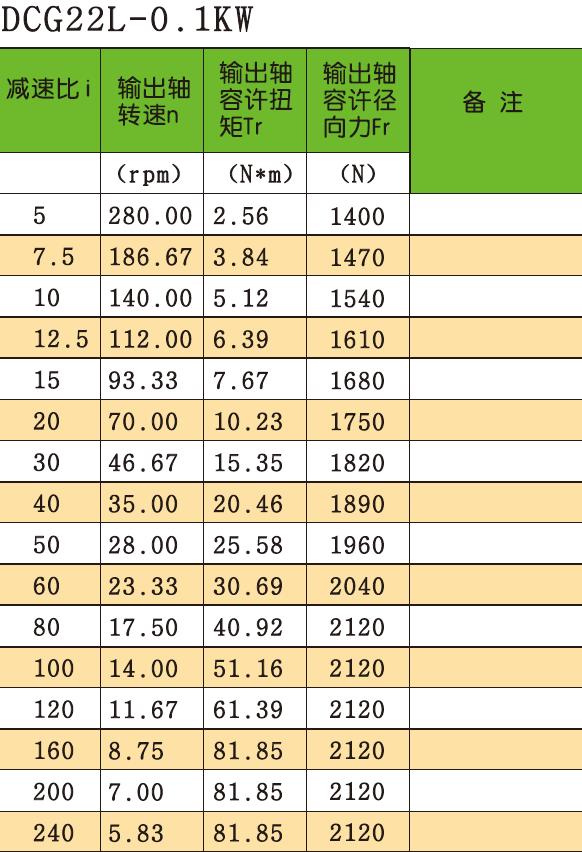

Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	2.56	1400
7.5	186.67	3.84	1470
10	140	5.12	1540
12.5	112	6.39	1610
15	93.33	7.67	1680
20	70	10.23	1750
30	46.67	15.35	1820
40	35	20.46	1890
50	28	25.58	1960
60	23.33	30.69	2040
80	17.5	40.92	2120
100	14	51.16	2120
120	11.67	61.39	2120
160	8.75	81.85	2120
200	7	81.85	2120
240	5.83	81.85	2120

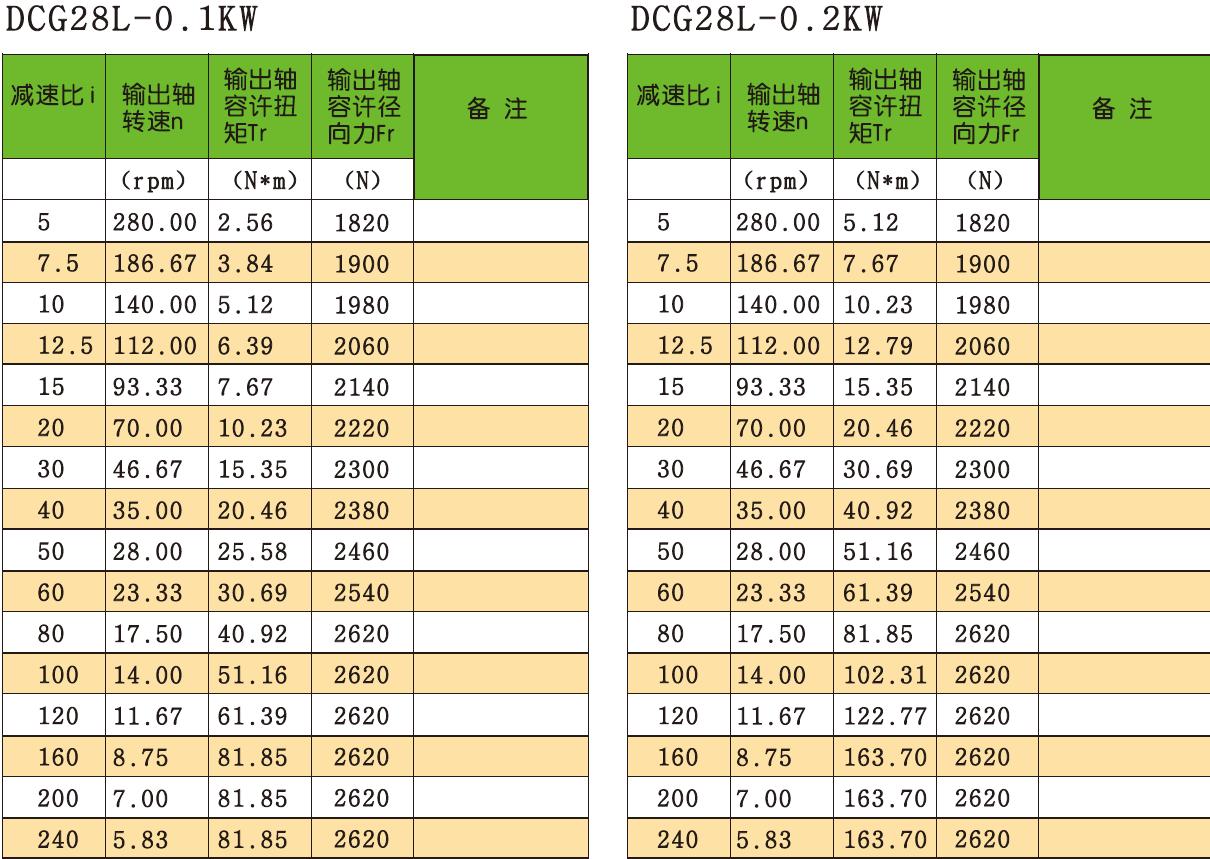

	DCG28L-0.1KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	2.56	1820
7.5	186.67	3.84	1900
10	140	5.12	1980
12.5	112	6.39	2060
15	93.33	7.67	2140
20	70	10.23	2220
30	46.67	15.35	2300
40	35	20.46	2380
50	28	25.58	2460
60	23.33	30.69	2540
80	17.5	40.92	2620
100	14	51.16	2620
120	11.67	61.39	2620
160	8.75	81.85	2620
200	7	81.85	2620
240	5.83	81.85	2620

	DCG28L-0.2KW
Reduction Ratio i	Output Shaft Speed n (rpm)	Output Shaft Torque Tr (N·m)	Allowable Radial Force Fr (N)
5	280	5.12	1820
7.5	186.67	7.67	1900
10	140	10.23	1980
12.5	112	12.79	2060
15	93.33	15.35	2140
20	70	20.46	2220
30	46.67	30.69	2300
40	35	40.92	2380
50	28	51.16	2460
60	23.33	61.39	2540
80	17.5	81.85	2620
100	14	102.31	2620
120	11.67	122.77	2620
160	8.75	163.7	2620
200	7	163.7	2620
240	5.83	163.7	2620

Application

Advantages of Straight Cross-axis Dual Surface Gear Reducer
1. High Torque Transmission – Delivers superior torque output with minimal energy loss, ideal for heavy-load applications.

2. Compact & Space-Saving – Cross-axis design allows for efficient power transmission in confined spaces.

3. High Efficiency (90%+) – Dual-surface gear engagement ensures smooth power transfer with reduced friction.

4. Low Noise & Vibration – Precision-engineered gears minimize operational noise, suitable for noise-sensitive environments.

5. High Rigidity & Durability – Robust construction (hardened steel gears, reinforced housing) enhances longevity under harsh conditions.

6. Low Backlash – Ensures precise motion control, critical for automation and robotics.

7. Versatile Mounting Options – Supports horizontal, vertical, and flange mounting for flexible integration.

8. Maintenance-Free Operation – Sealed design with long-life lubrication reduces servicing needs.

Applications of Straight Cross-axis Dual Surface Gear Reducer
Industrial Robotics – Precision joints and articulated arms requiring high torque and accuracy.

Packaging Machinery – High-speed filling, sealing, and labeling equipment.

Medical Equipment – Surgical robots, imaging systems, and adjustable patient beds.

Aerospace & Defense – Actuators for flight control systems and radar positioning.

Automotive Manufacturing – Assembly line robots, welding arms, and conveyor systems.

Renewable Energy – Solar tracker systems and wind turbine pitch control mechanisms.

Material Handling – AGVs (Automated Guided Vehicles), cranes, and lifting systems.

Machine Tools – CNC machining centers requiring high precision and rigidity.

Standard definition of output shaft direction and terminal box location

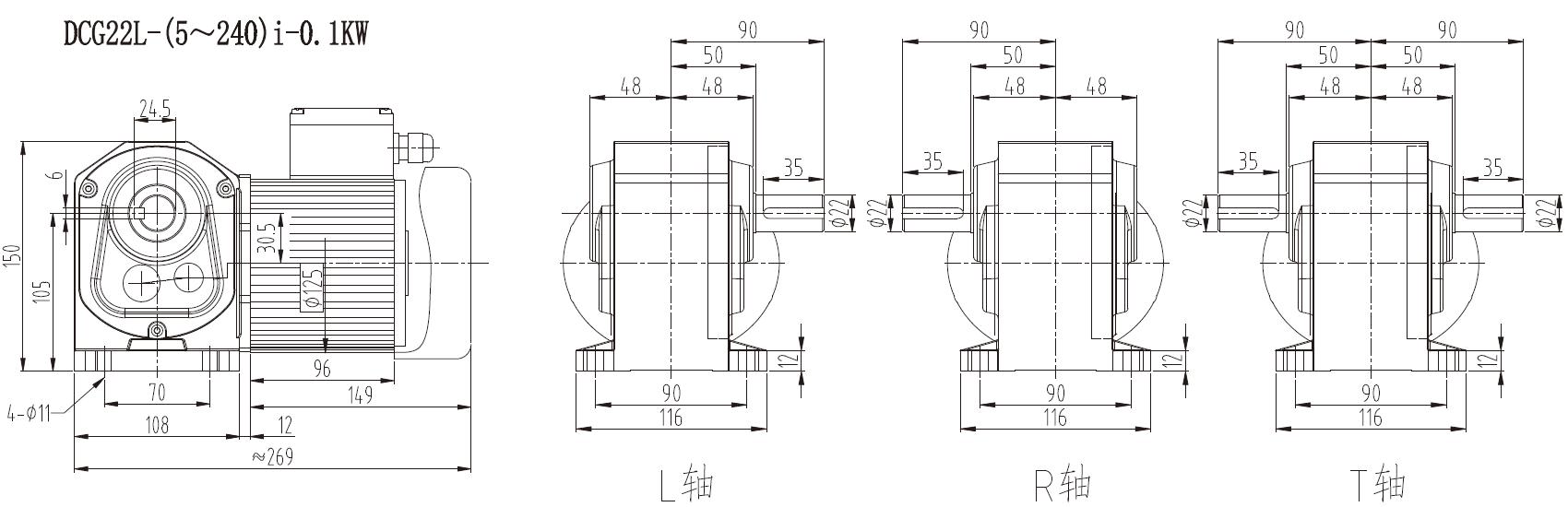

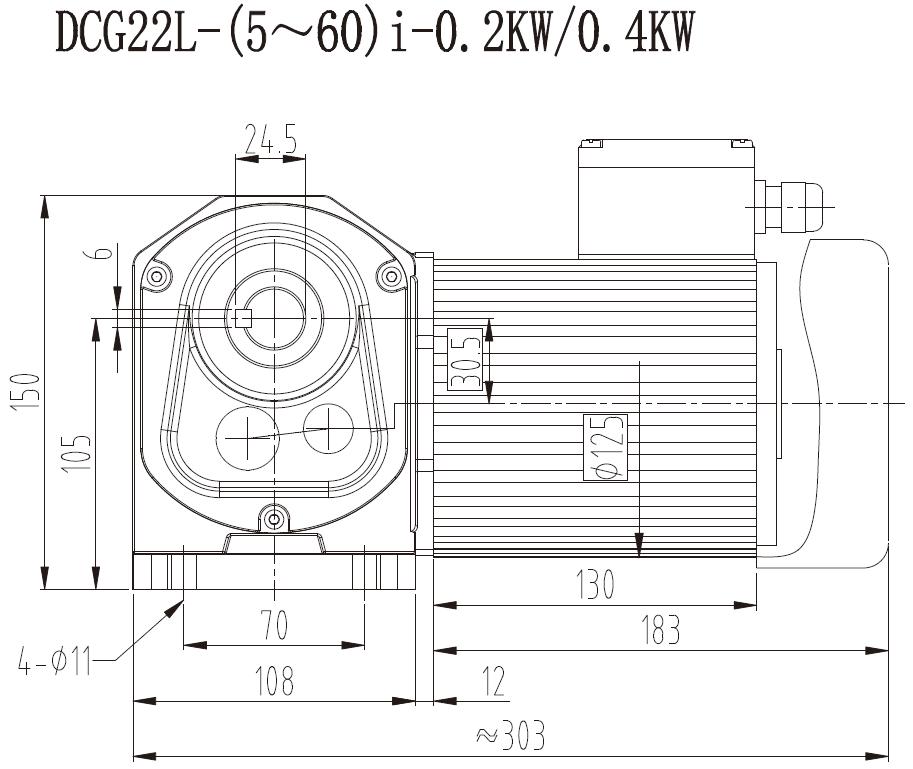

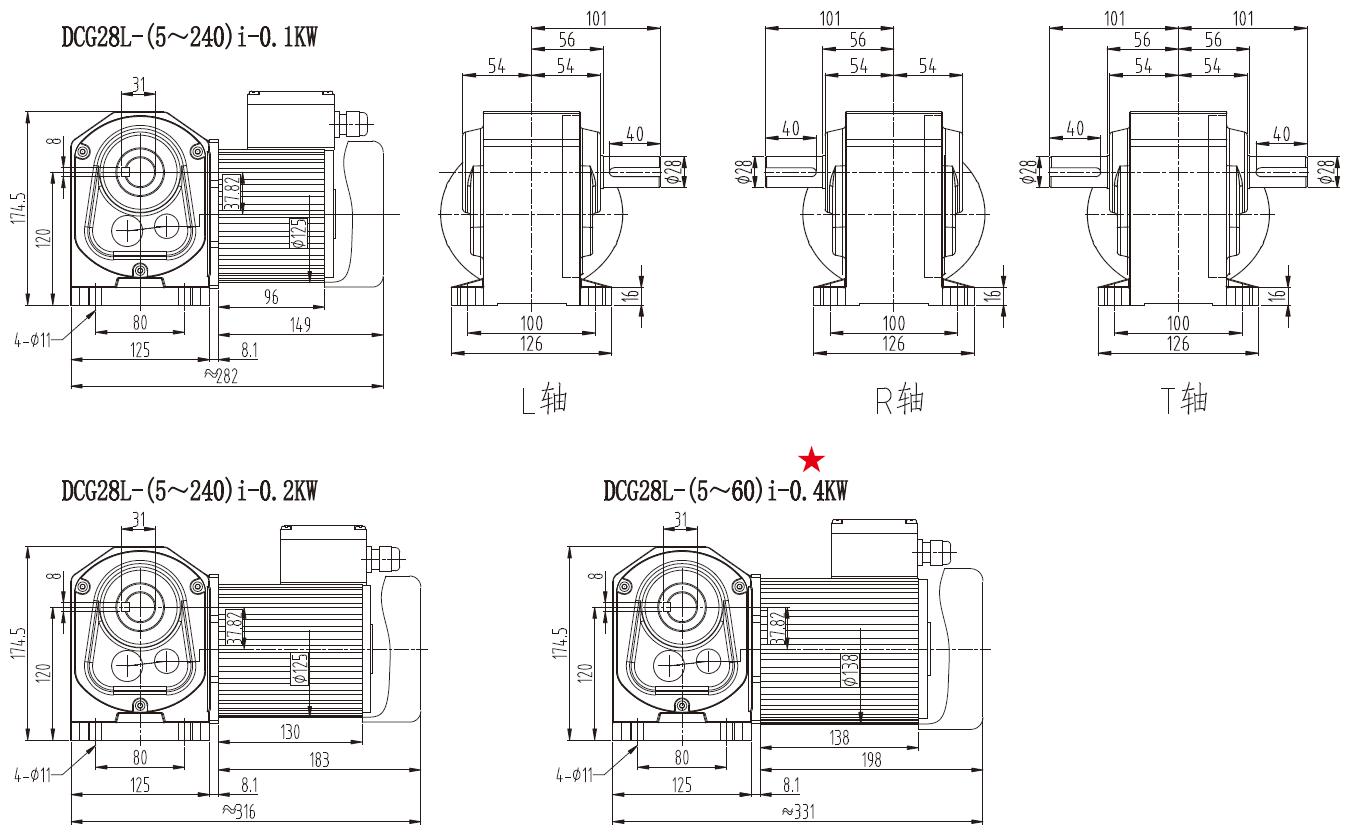

Technical Specifications
