Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane

Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;......Keywords:Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox For Mining Construction Crane - Buy Parallel Shaft Gear Unit industry H / B Series Heavy Duty Gearbox industry H / B Series Flender Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox For Mining Construction Crane Product on CMN Industry Inc

Send Inquiry

Product Description

Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane
Design 1. The parallel shaft and orthogonal shaft gearbox adopt a new design, and its unique innovation lies in: 2. The types of parts and components are reduced, while the specifications and models are increased· 3. The operation reliability is improved and the transmission power is increased; 4. The flange type output shaft can be provided to make the gearbox meet the installation requirements in a narrow space according to (supplied according to the user's requirements). Installation method 1. The gearbox can be installed horizontally or vertically. 2. Other installation forms can also be used if required by the user. 3. Flange and torque support device for motor installation are standard configuration of the product. Noise characteristics of gears 1. Use the latest design ideas to thoroughly improve the noise characteristics of gears through the following ways 2. Use a box structure that absorbs noise; 3. Adopt extra large tooth surface contact ratio. Gearbox heat dissipation The gearbox not only has high transmission efficiency, but also has good heat dissipation performance, mainly through the following methods: 1. Increase the surface area of the box 2. Large fan and new type guide fan cover are adopted; 3. Select the gearbox according to the lower maximum allowable oil temperature. In this way, the reliability of equipment operation can be improved due to the longer oil change period, and the equipment maintenance cost can be reduced. According to the modular design principle of unit structure, the stock gearbox greatly reduces the types of parts
Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane
Power
4-5000kw
Ratio
1.25-450
Input Speed
1450RMP, 960RMP, 710RMP
Torque
2300-900000N.m
Transmission stage
1 stage, 2 stage, 3 stage, 4 stage
Mounting position
Vertical, horizontal
Housing
HT250 cast iron
Gear
20CrMnTi H, high grade allo with carburization, surface
Hardness
58-62HRC, center hardness: 33-48HRC
Grinding precision grade
ISO1328-1: 1995 class 5-6, surfaceness: 0.8,
carburization depth
0.6-1.5mm
Bearing
42CrMo
H Series
B Series
Ratio range
1.25 ~ 450
5 to 400
Torque range
2 ~ 900 kNm
5.8 ~ 900 kNm
Power range
4 ~ 5000 kW
2.8 ~ 3000kW

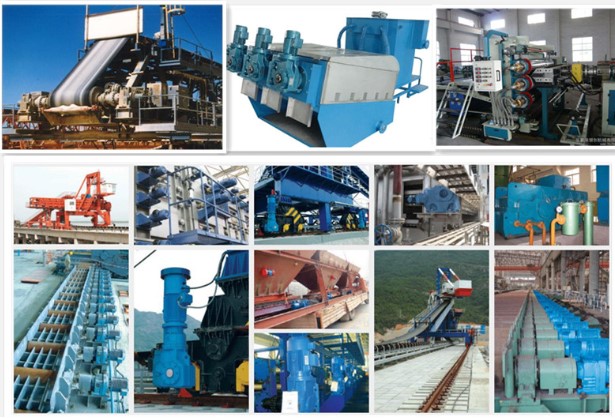

The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment
protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.
Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane
Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane
Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane
CMN's main products include: SLR series helical gear reducer, SLS series helical worm gear reducer, and SL κ Sixteen series, including series bevel gear reducers, SLF series helical gear reducers, SLH, SLB series high-power reducers, SLP series planetary gear reducers, Ⅹ, 8000 series cycloidal pin gear reducers, SLXG series suspension reducers, SLSWL series worm gear elevators, SLT series spiral bevel gear steering boxes, have a total of more than 10000 transmission ratios, with specifications ranking first in the domestic industry

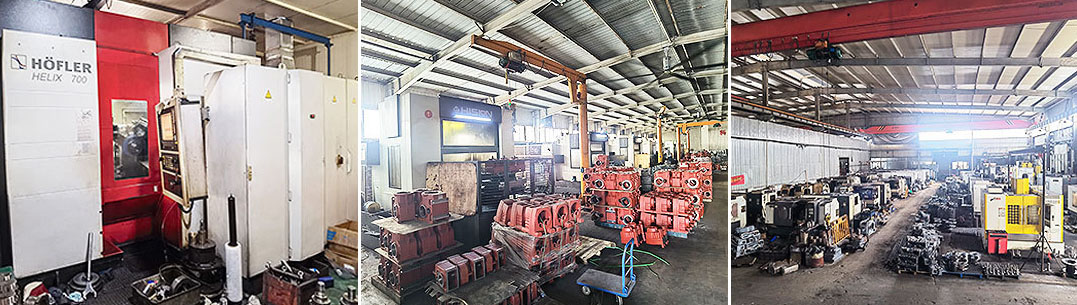

In order to improve the technical equipment and process level of the enterprise, the company has introduced more than 300 sets of German HOFLER forming gear grinding machine and the most advanced precision CNC lathe, machining center, precision worm wheel grinder, CNC worm wheel gear grinder, gear hobbing machine, three coordinate measuring instrument, gear testing instrument and other precision equipment in China, so that the product manufacturing process and equipment have the domestic leading level. At the same time, the company took the lead in passing the S09001 international quality system certification in the same industry in China.

Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane
Industry H / B Series Heavy Duty Hardness Gear Parallel Shaft Gear Unit Reducer Helical Gearbox for Mining Construction Crane
