Product Description

Product overview

TYC series (IP55) rare earth permanent magnet three-phase synchronous motor Overview SUMMARY The TYC series ultra-high efficiency rare earth permanent magnet synchronous motor, which exceeds the IE4 efficiency standard, is our company's latest green energy-saving motor. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates with encoderless vector control, and has an internal magnetic steel structure. It has the advantages of high efficiency, reliable operation, and good installation interchangeability. MAIN CHARACTERISTICS Simple and reliable structure: encoderless vector control can achieve smooth stepless speed regulation from 0 to 1.5 times the rated speed, and can achieve unlimited start and stop. High protection level: IP55 protection level eliminates the disadvantage of permanent magnets of motors with lower protection levels absorbing iron dust and blocking the air gap. Strong anti-demagnetization ability: adopts internal magnetic steel structure and designs a higher maximum demagnetization working point. High power density and small size: The permanent magnet magnetic field of the motor rotor and the rotating magnetic field of the stator run synchronously without slip loss. The stator winding does not need to absorb reactive current from the power grid, which greatly reduces motor loss and temperature rise. Under the same power and torque, the motor mass and volume can be reduced by 70%, and the frame size or center height can be reduced by 1~2 levels. Ultra-High Efficiency Operation: This motor meets the Class 1 energy efficiency standard specified in GB/30253-2024, "Energy Efficiency Limits and Efficiency Grades for Permanent Magnet Synchronous Motors," and exceeds the IE4 efficiency standard (stray losses are calculated using the recommended values of the 112B method). IE5 or higher efficiency standards can be provided upon request. The motor also delivers exceptional efficiency across the entire speed and power range.

Main Specifications & Technical Data

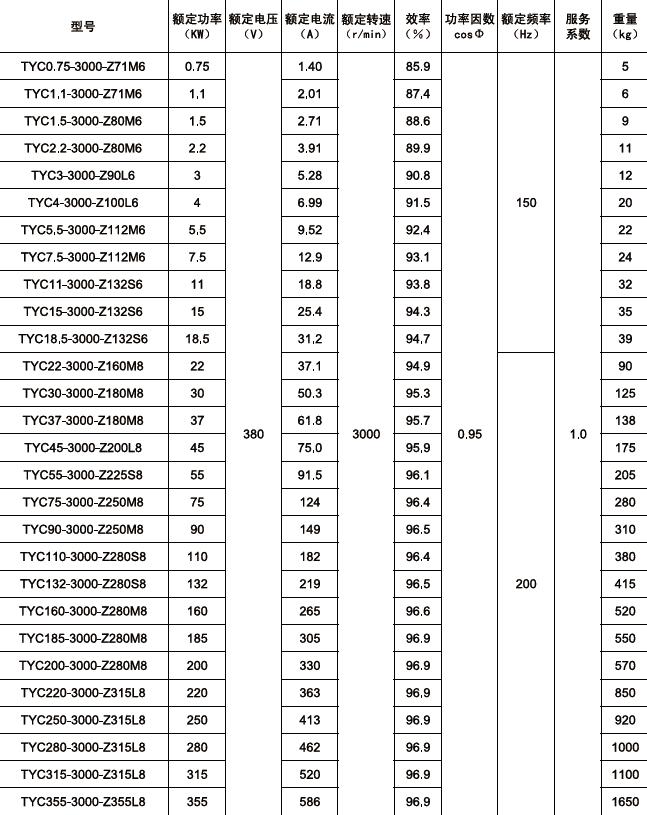

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC0.75-3000-Z71M6	0.75	380	1.4	3000	85.9	0.95	50	1	5
TYC1.1-3000-Z71M6	1.1	380	2.01	3000	87.4	0.95	50	1	6
TYC1.5-3000-Z80M6	1.5	380	2.71	3000	88.6	0.95	50	1	9
TYC2.2-3000-Z80M6	2.2	380	3.91	3000	89.9	0.95	50	1	11
TYC3-3000-Z90L6	3	380	5.28	3000	90.8	0.95	50	1	12
TYC4-3000-Z100L6	4	380	6.99	3000	91.5	0.95	50	1	20
TYC5.5-3000-Z112M6	5.5	380	9.52	3000	92.4	0.95	50	1	22
TYC7.5-3000-Z112M6	7.5	380	12.9	3000	93.1	0.95	50	1	24
TYC11-3000-Z132S6	11	380	18.8	3000	93.8	0.95	50	1	32
TYC15-3000-Z132S6	15	380	25.4	3000	94.3	0.95	50	1	35
TYC18.5-3000-Z132S6	18.5	380	31.2	3000	94.7	0.95	50	1	39
TYC22-3000-Z160M8	22	380	37.1	3000	94.9	0.95	50	1	90
TYC30-3000-Z180M8	30	380	50.3	3000	95.3	0.95	50	1	125
TYC37-3000-Z180M8	37	380	61.8	3000	95.7	0.95	50	1	138
TYC45-3000-Z200L8	45	380	75	3000	95.9	0.95	50	1	175
TYC55-3000-Z225S8	55	380	91.5	3000	96.1	0.95	50	1	205
TYC75-3000-Z250M8	75	380	124	3000	96.4	0.95	50	1	280
TYC90-3000-Z250M8	90	380	149	3000	96.5	0.95	50	1	310
TYC110-3000-Z280S8	110	380	182	3000	96.4	0.95	50	1	380
TYC132-3000-Z280S8	132	380	219	3000	96.5	0.95	50	1	415
TYC160-3000-Z280M8	160	380	265	3000	96.6	0.95	50	1	520
TYC185-3000-Z280M8	185	380	305	3000	96.9	0.95	50	1	550
TYC200-3000-Z280M8	200	380	330	3000	96.9	0.95	50	1	570
TYC220-3000-Z315L8	220	380	363	3000	96.9	0.95	50	1	850
TYC250-3000-Z400L8	250	380	413	3000	96.9	0.95	50	1	920
TYC280-3000-Z315L8	280	380	462	3000	96.9	0.95	50	1	1000
TYC315-3000-Z315L8	315	380	520	3000	96.9	0.95	50	1	1100
TYC355-3000-Z355L8	355	380	586	3000	96.9	0.95	50	1	1650

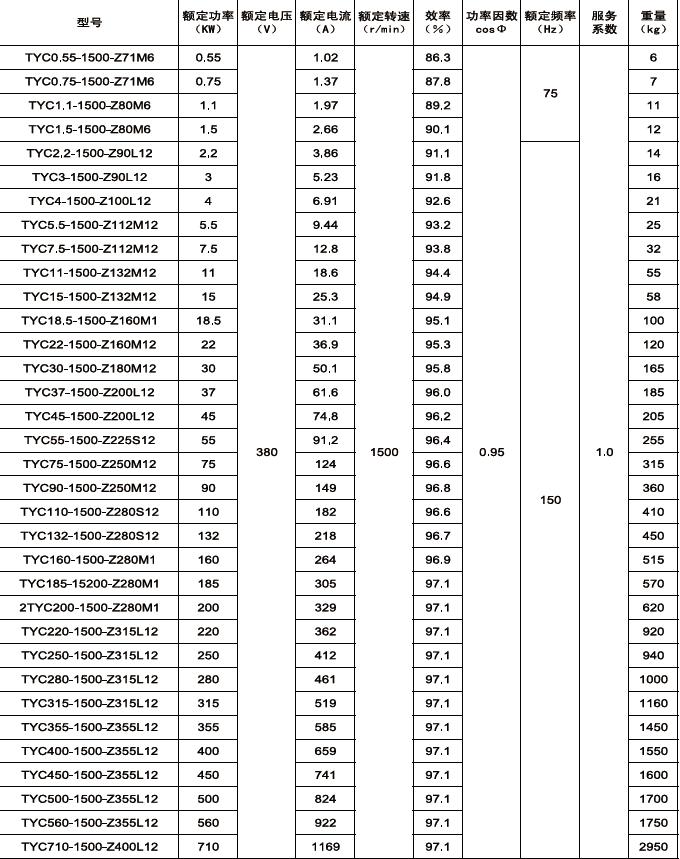

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC0.55-1500-Z71M6	0.55	380	1.02	1500	86.3	0.95	50	1	6
TYC0.75-1500-Z71M6	0.75	380	1.37	1500	87.8	0.95	50	1	7
TYC1.1-1500-Z80M6	1.1	380	1.97	1500	89.2	0.95	50	1	11
TYC1.5-1500-Z80M6	1.5	380	2.66	1500	90.1	0.95	50	1	12
TYC2.2-1500-Z90L12	2.2	380	3.86	1500	91.1	0.95	50	1	14
TYC3-1500-Z90L12	3	380	5.23	1500	91.8	0.95	50	1	16
TYC4-1500-Z100L12	4	380	6.91	1500	92.6	0.95	50	1	21
TYC5.5-1500-Z112M12	5.5	380	9.44	1500	93.2	0.95	50	1	25
TYC7.5-1500-Z112M12	7.5	380	12.8	1500	93.8	0.95	50	1	32
TYC11-1500-Z132M12	11	380	18.6	1500	94.4	0.95	50	1	55
TYC15-1500-Z132M12	15	380	25.3	1500	94.9	0.95	50	1	58
TYC18.5-1500-Z160M1	18.5	380	31.1	1500	95.1	0.95	50	1	100
TYC22-1500-Z160M12	22	380	36.9	1500	95.3	0.95	50	1	120
TYC30-1500-Z180M12	30	380	50.1	1500	95.8	0.95	50	1	165
TYC37-1500-Z200L12	37	380	61.6	1500	96	0.95	50	1	185
TYC45-1500-Z200L12	45	380	74.8	1500	96.2	0.95	50	1	205
TYC55-1500-Z225S12	55	380	91.2	1500	96.4	0.95	50	1	255
TYC75-1500-Z250M12	75	380	124	1500	96.6	0.95	50	1	315
TYC90-1500-Z250M12	90	380	149	1500	96.8	0.95	50	1	360
TYC110-1500-Z280S12	110	380	182	1500	96.6	0.95	50	1	410
TYC132-1500-Z280S12	132	380	218	1500	96.7	0.95	50	1	450
TYC160-1500-Z280M1	160	380	264	1500	96.9	0.95	50	1	515
TYC185-1500-Z280M1	185	380	305	1500	97.1	0.95	50	1	570
2TYC200-1500-Z280M1	200	380	329	1500	97.1	0.95	50	1	620
TYC220-1500-Z315L12	220	380	362	1500	97.1	0.95	50	1	920
TYC250-1500-Z315L12	250	380	412	1500	97.1	0.95	50	1	940
TYC280-1500-Z315L12	280	380	461	1500	97.1	0.95	50	1	1000
TYC315-1500-Z315L12	315	380	519	1500	97.1	0.95	50	1	1160
TYC355-1500-Z355L12	355	380	585	1500	97.1	0.95	50	1	1450
TYC400-1500-Z355L12	400	380	659	1500	97.1	0.95	50	1	1550
TYC450-1500-Z355L12	450	380	741	1500	97.1	0.95	50	1	1600
TYC500-1500-Z355L12	500	380	824	1500	97.1	0.95	50	1	1700
TYC560-1500-Z355L12	560	380	922	1500	97.1	0.95	50	1	1750
TYC710-1500-Z400L12	710	380	1169	1500	97.1	0.95	50	1	2950

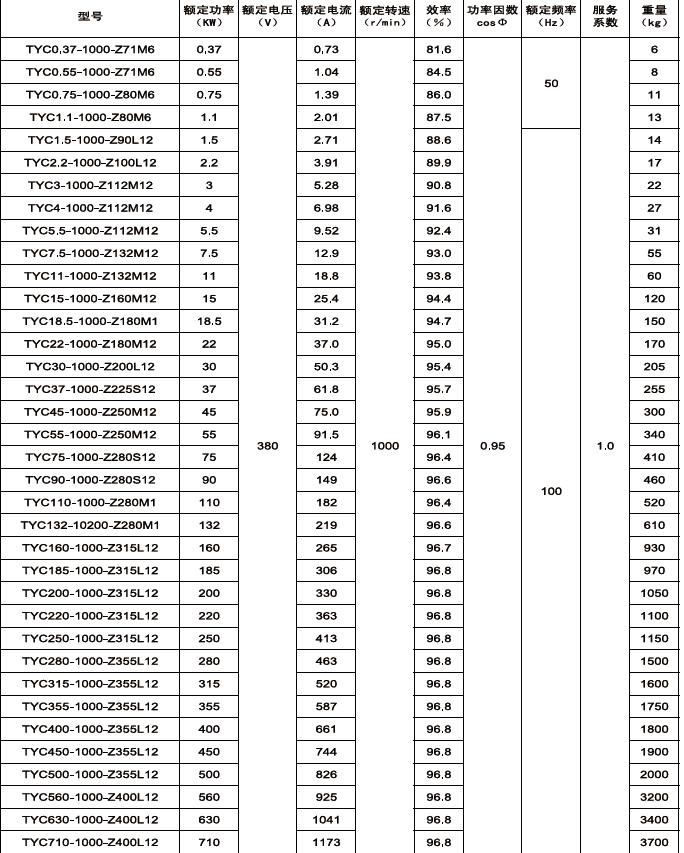

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC0.37-1000-Z71M6	0.37	380	0.73	1000	81.6	0.95	50	1	6
TYC0.55-1000-Z71M6	0.55	380	1.04	1000	84.5	0.95	50	1	8
TYC0.75-1000-Z80M6	0.75	380	1.39	1000	86	0.95	50	1	11
TYC1.1-1000-Z80M6	1.1	380	2.01	1000	87.5	0.95	50	1	13
TYC1.5-1000-Z90L12	1.5	380	2.71	1000	88.6	0.95	50	1	14
TYC2.2-1000-Z100L12	2.2	380	3.91	1000	89.9	0.95	50	1	17
TYC3-1000-Z112M12	3	380	5.28	1000	90.8	0.95	50	1	22
TYC4-1000-Z112M12	4	380	6.98	1000	91.6	0.95	50	1	27
TYC5.5-1000-Z112M12	5.5	380	9.52	1000	92.4	0.95	50	1	31
TYC7.5-1000-Z132M12	7.5	380	12.9	1000	93	0.95	50	1	55
TYC11-1000-Z132M12	11	380	18.8	1000	93.8	0.95	50	1	60
TYC15-1000-Z160M12	15	380	25.4	1000	94.4	0.95	50	1	120
TYC18.5-1000-Z180M1	18.5	380	31.2	1000	94.7	0.95	50	1	150
TYC22-1000-Z180M12	22	380	37	1000	95	0.95	50	1	170
TYC30-1000-Z200L12	30	380	50.3	1000	95.4	0.95	50	1	205
TYC37-1000-Z225S12	37	380	61.8	1000	95.7	0.95	50	1	255
TYC45-1000-Z225M12	45	380	75	1000	95.9	0.95	50	1	300
TYC55-1000-Z250M12	55	380	91.5	1000	96.1	0.95	50	1	340
TYC75-1000-Z280S12	75	380	124	1000	96.4	0.95	50	1	410
TYC90-1000-Z280S12	90	380	149	1000	96.6	0.95	50	1	460
TYC110-1000-Z280M1	110	380	182	1000	96.4	0.95	50	1	520
TYC132-1000-Z280M12	132	380	219	1000	96.6	0.95	50	1	610
TYC160-1000-Z315L12	160	380	265	1000	96.7	0.95	50	1	930
TYC185-1000-Z315L12	185	380	306	1000	96.8	0.95	50	1	970
TYC200-1000-Z315L12	200	380	330	1000	96.8	0.95	50	1	1050
TYC220-1000-Z315L12	220	380	363	1000	96.8	0.95	50	1	1100
TYC250-1000-Z315L12	250	380	413	1000	96.8	0.95	50	1	1150
TYC280-1000-Z355L12	280	380	463	1000	96.8	0.95	50	1	1500
TYC315-1000-Z355L12	315	380	520	1000	96.8	0.95	50	1	1600
TYC355-1000-Z355L12	355	380	587	1000	96.8	0.95	50	1	1750
TYC400-1000-Z355L12	400	380	661	1000	96.8	0.95	50	1	1800
TYC450-1000-Z355L12	450	380	744	1000	96.8	0.95	50	1	1900
TYC500-1000-Z355L12	500	380	826	1000	96.8	0.95	50	1	2000
TYC560-1000-Z400L12	560	380	925	1000	96.8	0.95	50	1	3200
TYC630-1000-Z400L12	630	380	1041	1000	96.8	0.95	50	1	3400
TYC710-1000-Z400L12	710	380	1173	1000	96.8	0.95	50	1	3700

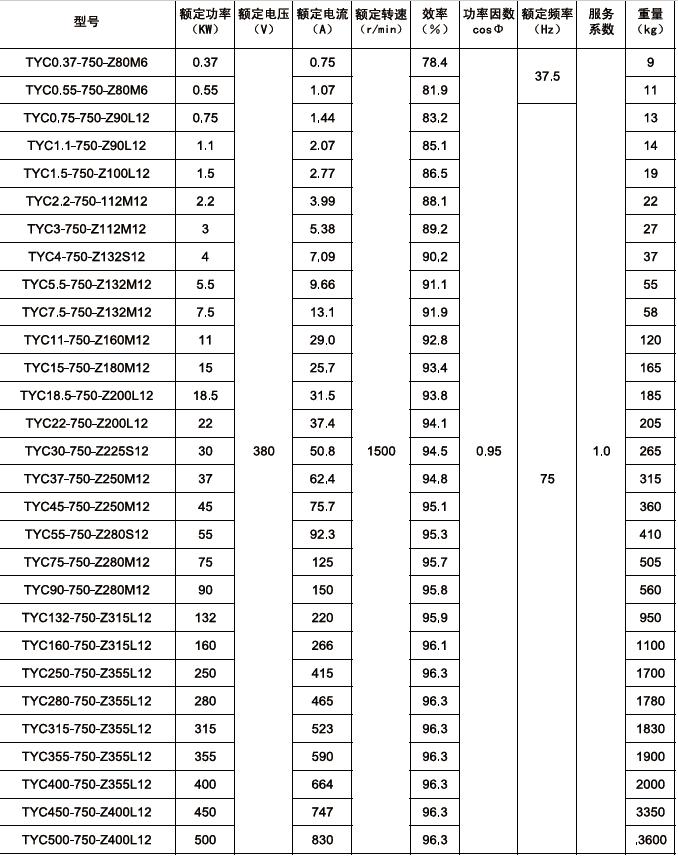

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC0.37-750-Z80M6	0.37	380	0.75	750	78.4	0.95	50	1	9
TYC0.55-750-Z80M6	0.55	380	1.07	750	81.9	0.95	50	1	11
TYC0.75-750-Z90L12	0.75	380	1.44	750	83.2	0.95	50	1	13
TYC1.1-750-Z90L12	1.1	380	2.07	750	85.1	0.95	50	1	14
TYC1.5-750-Z100L12	1.5	380	2.77	750	86.5	0.95	50	1	19
TYC2.2-750-112M12	2.2	380	3.99	750	88.1	0.95	50	1	22
TYC3-750-Z132S12	3	380	5.38	750	89.2	0.95	50	1	27
TYC4-750-Z132M12	4	380	7.09	750	90.2	0.95	50	1	37
TYC5.5-750-Z132M12	5.5	380	9.66	750	91.1	0.95	50	1	55
TYC7.5-750-Z132M12	7.5	380	13.1	750	91.9	0.95	50	1	58
TYC11-750-Z160M12	11	380	29	750	92.8	0.95	50	1	120
TYC15-750-Z180M12	15	380	25.7	750	93.4	0.95	50	1	165
TYC18.5-750-Z200L12	18.5	380	31.5	750	93.8	0.95	50	1	185
TYC22-750-Z200L12	22	380	37.4	750	94.1	0.95	50	1	205
TYC30-750-Z225M12	30	380	50.8	750	94.5	0.95	50	1	265
TYC37-750-Z225S12	37	380	62.4	750	94.8	0.95	50	1	315
TYC45-750-Z250M12	45	380	75.7	750	95.1	0.95	50	1	360
TYC55-750-Z280S12	55	380	92.3	750	95.3	0.95	50	1	410
TYC75-750-Z280M12	75	380	125	750	95.7	0.95	50	1	505
TYC90-750-Z280M12	90	380	150	750	95.8	0.95	50	1	560
TYC132-750-Z315L12	132	380	220	750	95.9	0.95	50	1	950
TYC160-750-Z315L12	160	380	266	750	96.1	0.95	50	1	1100
TYC250-750-Z355L12	250	380	415	750	96.3	0.95	50	1	1700
TYC280-750-Z355L12	280	380	465	750	96.3	0.95	50	1	1780
TYC315-750-Z355L12	315	380	523	750	96.3	0.95	50	1	1830
TYC355-750-Z355L12	355	380	590	750	96.3	0.95	50	1	1900
TYC400-750-Z355L12	400	380	664	750	96.3	0.95	50	1	2000
TYC450-750-Z400L12	450	380	747	750	96.3	0.95	50	1	3350
TYC500-750-Z400L12	500	380	830	750	96.3	0.95	50	1	3600

Machanical data
