JSS Type Serpentine Spring Coupling Double-flange Connecting Coupling Rexnord Grid Coupling

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Jss Type Serpentine Spring Coupling Double-flange Connecting Coupling Rexnord Grid Coupling - Buy Grid Flexible Coupling grid Coupling shaft Coupling falk Grid Coupling steelflex Coupling falk Steelflex Grid Coupling rexnord Grid Coupling double-flange Connecting Coupling serpentine Spring Coupling jss Type Double-flange Connecting Coupling Product on CMN Industry Inc

Send Inquiry

Product Description

Grid coupling is a advanced structural coupling of metal flexible coupling, which depend on two and a half snake spring embedded within the alveolar coupling to transfer torque, mainly by the two half-coupling, two half-housings, two seals and serpentine springs slices.

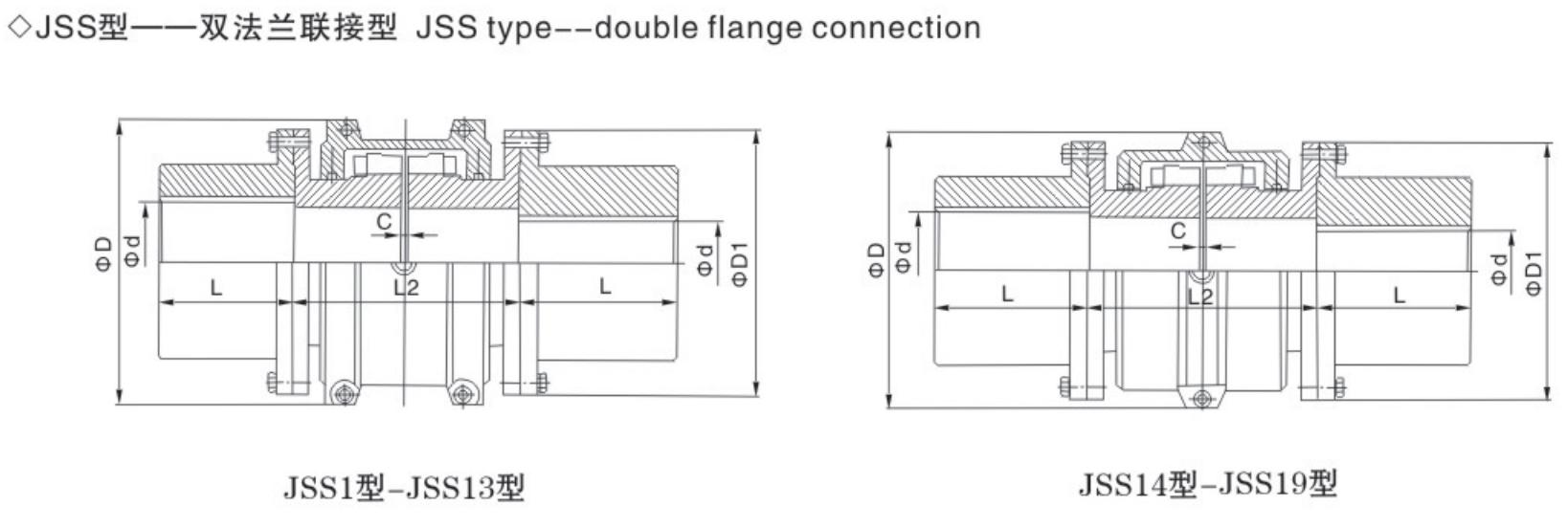

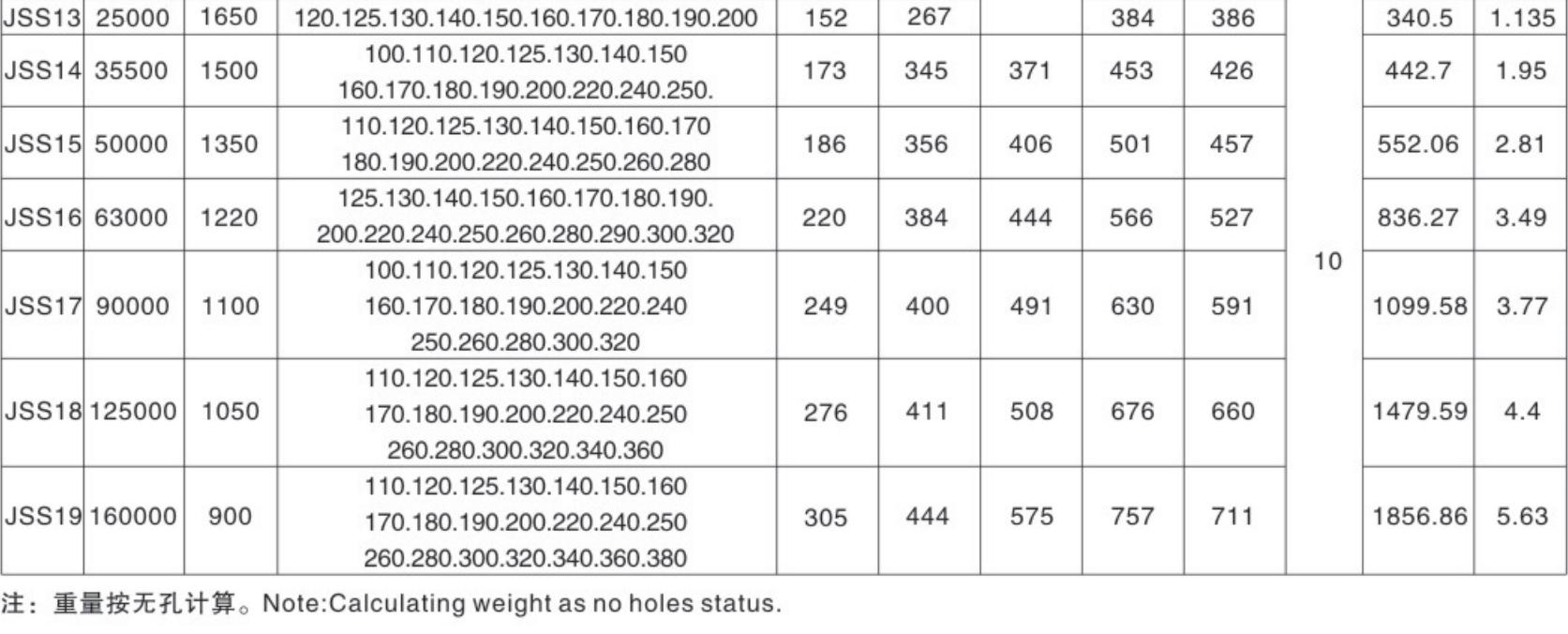

JSS Double Flange Coupling Product Introduction: The serpentine spring coupling is an advanced metal elastic coupling that transmits torque through a serpentine spring. It is one of the most advanced shaft connection and transmission components in the international machinery industry and is also a very versatile shaft connection and transmission component. There are nine types of serpentine spring couplings: the JS housing radially mounted serpentine spring coupling (basic type), the JSB housing axially mounted serpentine spring coupling, the JSS double flange serpentine spring coupling, the JSD single flange serpentine spring coupling, the SJS intermediate shaft serpentine spring coupling, the JSG high-speed serpentine spring coupling, the JSZ brake wheel serpentine spring coupling, the JSP brake disc serpentine spring coupling, and the JSA safety serpentine spring coupling. The serpentine spring coupling's main structure consists of two coupling halves, two housing halves, two sealing rings, and serpentine springs. Torque is transmitted by a serpentine spring embedded in the tooth grooves of the two coupling halves. The coupling connects the driving and driven shafts with serpentine spring plates embedded in the tooth grooves of the two coupling halves. During operation, torque is transmitted by the axial force exerted by the teeth of the driving end on the serpentine spring, driving the driven end. This significantly reduces resonance, and the elastic variation generated by the spring plate during torque transmission provides excellent vibration reduction for the mechanical system, with an average vibration reduction rate exceeding 36%.

Working principle and using life Grid coupling to the axial coupling of the alveolar embedded within two and a half to realize driving shaft and driven shaft of the connection. Running depends on the original fixed-side tooth face of the circumferential spring force driving the driven-side transmission torque, so the (phthalate extent to avoid the resonance phenomenon, and the reed in the transmission torque generated when the elastic deformation, so that the mechanical system to obtain better vibration reduction, the average damping rate of 36%. Serpentine spring high quality spring steel, by the strict processing, handling, good mechanical properties, so that the life of the coupling ratio of non-metallic flexible element coupling increases exponentially.

Positive protection against the damaging effects of shock loads, impact loads and vibration.
Ever power grid coupling is torsionally flexible. The circumferential flexibility is progressive due to the curved profile of the
grooves – ‘state-of-the-art’ in resilient coupling design.

Transfer efficiency, starting safety Transmission efficiency is 99.47%, the short-term overload capacity of twice the rated torque, safe and reliable operation. Simple structure, easy disassembly Small parts, small size, light weight, snake spring to be made up of two or three or more members, so that disassembly, maintenance is more convenient than other couplings.

Accommodating Shaft Misalignment and End-Float Ever power grid coupling will accommodate combinations of misalignment present at set-up or occurring during machine displacement, settlement, etc. Limited End-Float kits are available on request.
