Product Description

K23-442/443 electric brake The 12-1/4 "x 5" driver side electric trailer brake assembly is suitable for a 12000 pound axle. Install the flange using a 7-bolt pattern. Self adjusting brakes require almost no maintenance. Suitable for wheels 15 inches or larger.

Features: Electric brakes are easier to install than hydraulic brakes and provide more user control Only one electric brake controller is required (sold separately) - no actuator or hydraulic lines are required Self adjusting brakes can be automatically adjusted to provide optimal performance and braking power No need to manually adjust the brakes Appropriate adjustments can improve braking efficiency and reduce wear on tractor brakes Installation bolts and hardware sold separately

Specifications: Application: Most standard hub and drum components, including Dexter and Lippert (LCI) Configuration: Left hand (driver's side) Dimensions: 12-1/4 "diameter x 5" width Installation flange bolt type: 7 bolts Wheel size: 15 inches or larger Axle rating: 12000 pounds Limited 5-year warranty

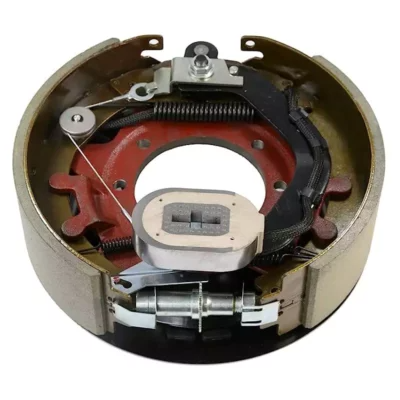

Brake Assembly Parts K23-442/443 trailer electric brake 12.25 x 5 "7 hole Look at the main components that make up the brake assembly: Reactor spring Actuating arm Brake shoe compression spring Main brake shoes Regulator Adjuster spring magnet Auxiliary brake shoes

How to test trailer brake magnets Visual inspection steps: If any coil can be seen in the center of the magnet, it indicates that the magnet is worn and should be replaced 2. Take a straight edge tool and place it horizontally on top of the magnet. The edge of the magnet should always be parallel to the straight edge. Any pitting or changes on the surface of the magnet indicate abnormal wear and should be replaced. 3. Check the magnet for any grease or oil residue, and if so, replace the magnet. Testing: A multimeter capable of reading amperes and ohms is required to test the trailer brake magnet. You can also use the ever power supply because it has built-in testing functions. To test with a multimeter, you need to connect a Ammeter to the blue wire on the back of the brake controller, or use the diagnostic readings of the brake controller. If the current intensity is greater than the specified value (see table below), please replace one or more magnets. If the reading is less than the specified value, it indicates that the wire is damaged and one or more magnets should be replaced.
