Low Noise High Torque Rated Speed 3000/1500/1000/750rpm Rare Earth Permanent Magnet Energy-saving Three Phase Synchronous Motors

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Low Noise High Torque Rated Speed 3000/1500/1000/750rpm Rare Earth Permanent Magnet Energy-saving Three Phase Synchronous Motors - Buy Rare Earth Permanent Magnet 3-phase Synchronous Motor Ac Servo Motor High Efficiency Ac Servo Motor Energy Saving Low Noise High Torque Density Compact Size Variable Speed Application Industrial Automation Robotics Cnc Machine Tools Electric Vehicles Renewable Energy Systems Permanent Magnet Generator Totally Enclosed Synchronous Motor With Rare Earth Permanent Magnet Product on CMN Industry Inc

Send Inquiry

Product Description

Product overview

TYC series (IP55) rare earth permanent magnet three-phase synchronous motor Overview SUMMARY The TYC series ultra-high efficiency rare earth permanent magnet synchronous motor, which exceeds the IE4 efficiency standard, is our company's latest green energy-saving motor. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates with encoderless vector control, and has an internal magnetic steel structure. It has the advantages of high efficiency, reliable operation, and good installation interchangeability. MAIN CHARACTERISTICS Simple and reliable structure: encoderless vector control can achieve smooth stepless speed regulation from 0 to 1.5 times the rated speed, and can achieve unlimited start and stop. High protection level: IP55 protection level eliminates the disadvantage of permanent magnets of motors with lower protection levels absorbing iron dust and blocking the air gap. Strong anti-demagnetization ability: adopts internal magnetic steel structure and designs a higher maximum demagnetization working point. High power density and small size: The permanent magnet magnetic field of the motor rotor and the rotating magnetic field of the stator run synchronously without slip loss. The stator winding does not need to absorb reactive current from the power grid, which greatly reduces motor loss and temperature rise. Under the same power and torque, the motor mass and volume can be reduced by 70%, and the frame size or center height can be reduced by 1~2 levels. Ultra-High Efficiency Operation: This motor meets the Class 1 energy efficiency standard specified in GB/30253-2024, "Energy Efficiency Limits and Efficiency Grades for Permanent Magnet Synchronous Motors," and exceeds the IE4 efficiency standard (stray losses are calculated using the recommended values of the 112B method). IE5 or higher efficiency standards can be provided upon request. The motor also delivers exceptional efficiency across the entire speed and power range.

Main Specifications & Technical Data

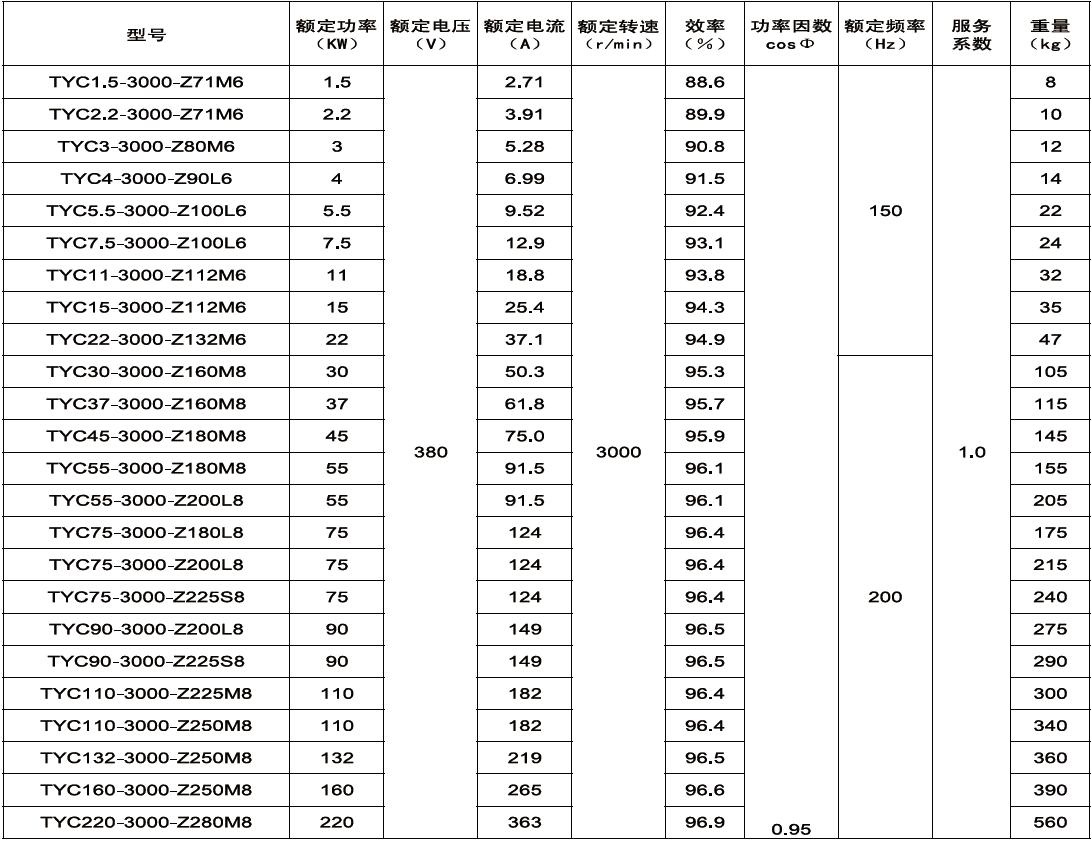

3000rpm

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC1.5-3000-Z71M6	1.5	380	2.71	3000	88.6	0.95	50	1	8
TYC2.2-3000-Z71M6	2.2	380	3.91	3000	89.9	0.95	50	1	10
TYC3-3000-Z80M6	3	380	5.28	3000	90.8	0.95	50	1	12
TYC4-3000-Z90L6	4	380	6.99	3000	91.5	0.95	50	1	14
TYC5.5-3000-Z100L6	5.5	380	9.52	3000	92.4	0.95	50	1	22
TYC7.5-3000-Z100L6	7.5	380	12.9	3000	93.1	0.95	50	1	24
TYC11-3000-Z112M6	11	380	18.8	3000	93.8	0.95	50	1	32
TYC15-3000-Z112M6	15	380	25.4	3000	94.3	0.95	50	1	35
TYC22-3000-Z130M6	22	380	37.1	3000	94.9	0.95	50	1	47
TYC30-3000-Z160M8	30	380	50.3	3000	95.3	0.95	50	1	105
TYC37-3000-Z160M8	37	380	61.8	3000	95.7	0.95	50	1	115
TYC45-3000-Z180M8	45	380	75	3000	95.9	0.95	50	1	145
TYC55-3000-Z180M8	55	380	91.5	3000	96.1	0.95	50	1	155
TYC55-3000-Z200L8	55	380	91.5	3000	96.1	0.95	50	1	205
TYC75-3000-Z180L8	75	380	124	3000	96.4	0.95	50	1	175
TYC75-3000-Z200L8	75	380	124	3000	96.4	0.95	50	1	215
TYC75-3000-Z225S8	75	380	124	3000	96.4	0.95	50	1	240
TYC90-3000-Z200L8	90	380	149	3000	96.5	0.95	50	1	275
TYC90-3000-Z225S8	90	380	149	3000	96.5	0.95	50	1	290
TYC110-3000-Z225M8	110	380	182	3000	96.4	0.95	50	1	300
TYC110-3000-Z250M8	110	380	182	3000	96.4	0.95	50	1	340
TYC132-3000-Z250M8	132	380	219	3000	96.5	0.95	50	1	360
TYC160-3000-Z250M8	160	380	265	3000	96.6	0.95	50	1	390
TYC220-3000-Z280M8	220	380	363	3000	96.9	0.95	50	1	560

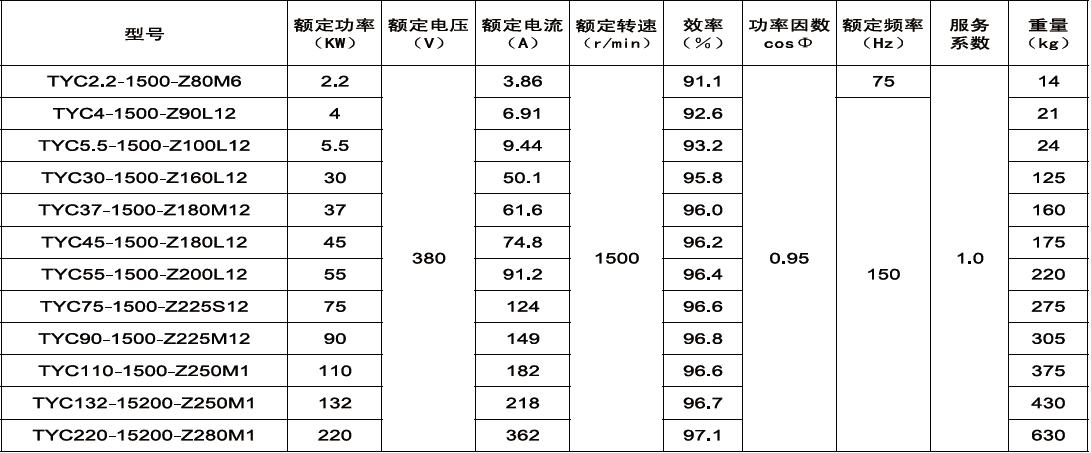

1500rpm

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC2.2-1500-Z80M6	2.2	380	3.86	1500	91.1	0.95	50	1	14
TYC4-1500-Z90L12	4	380	6.91	1500	92.6	0.95	50	1	21
TYC5.5-1500-Z100L12	5.5	380	9.44	1500	93.2	0.95	50	1	24
TYC30-1500-Z160L12	30	380	50.1	1500	95.8	0.95	50	1	125
TYC37-1500-Z180M12	37	380	61.6	1500	96	0.95	50	1	160
TYC45-1500-Z180L12	45	380	74.8	1500	96.2	0.95	50	1	175
TYC55-1500-Z200L12	55	380	91.2	1500	96.4	0.95	50	1	220
TYC75-1500-Z225S12	75	380	124	1500	96.6	0.95	50	1	275
TYC90-1500-Z225M12	90	380	149	1500	96.8	0.95	50	1	305
TYC110-1500-Z250M1	110	380	182	1500	96.6	0.95	50	1	375
TYC132-15200-Z250M1	132	380	218	1500	96.7	0.95	50	1	430
TYC220-15200-Z280M1	220	380	362	1500	97.1	0.95	50	1	630

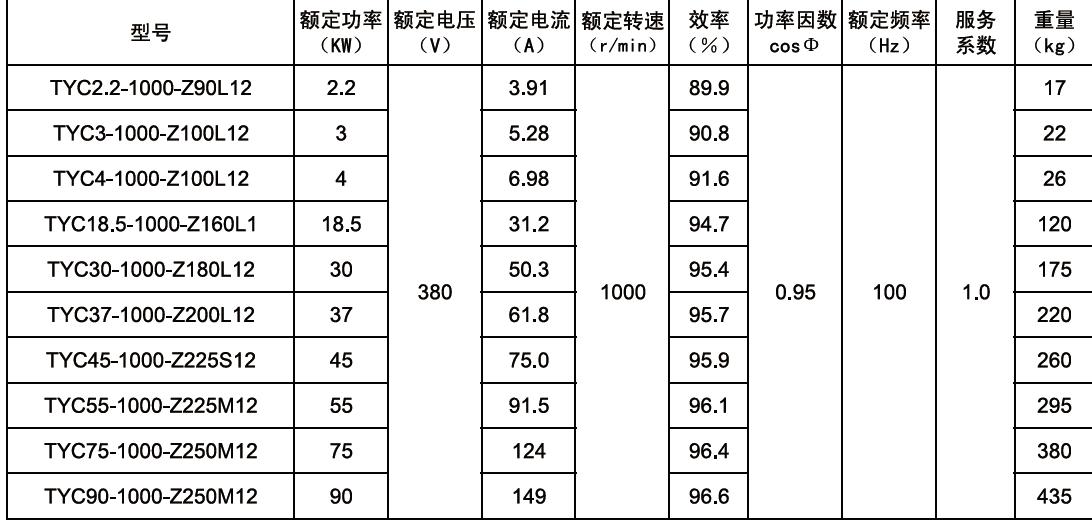

1000rpm

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC2.2-1000-Z90L12	2.2	380	3.91	1000	89.9	0.95	50	1	17
TYC3-1000-Z100L12	3	380	5.28	1000	90.8	0.95	50	1	22
TYC4-1000-Z100L12	4	380	6.98	1000	91.6	0.95	50	1	26
TYC18.5-1000-Z160L1	18.5	380	31.2	1000	94.7	0.95	50	1	120
TYC30-1000-Z180L12	30	380	50.3	1000	95.4	0.95	50	1	175
TYC37-1000-Z200L12	37	380	61.8	1000	95.7	0.95	50	1	220
TYC45-1000-Z225S12	45	380	75	1000	95.9	0.95	50	1	260
TYC55-1000-Z225M12	55	380	91.5	1000	96.1	0.95	50	1	295
TYC75-1000-Z250M12	75	380	124	1000	96.4	0.95	50	1	380
TYC90-1000-Z250M12	90	380	149	1000	96.6	0.95	50	1	435

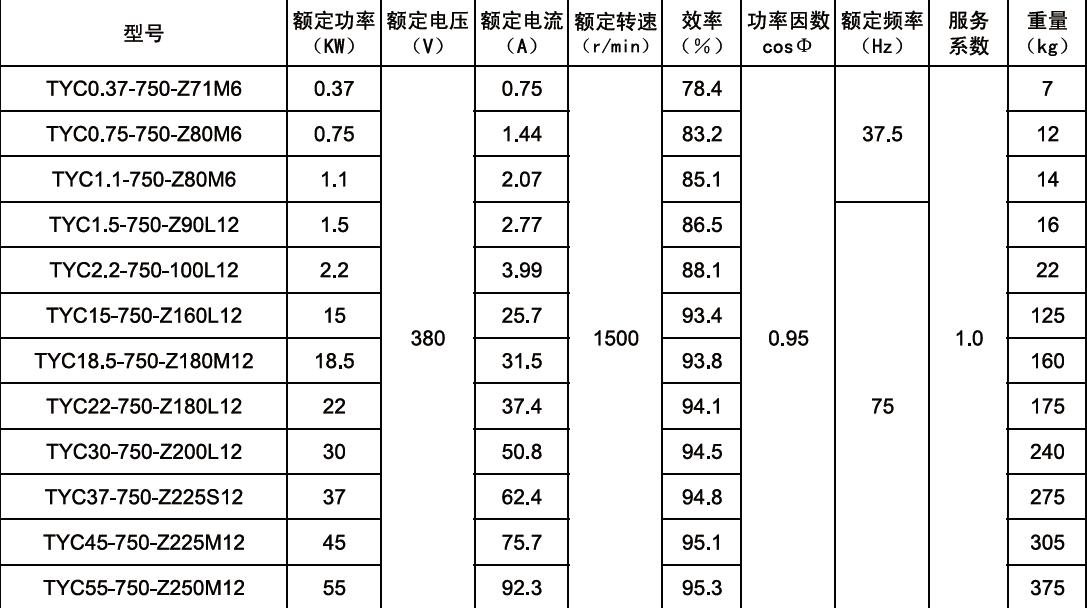

750rpm

Model Type	Rated Power (kW)	Rated Voltage (V)	Rated Current (A)	Rated Speed (r/min)	Efficiency (%)	Power Factor cosΦ	Rated Frequency (Hz)	Service Factor	Weight (kg)
TYC0.37-750-Z71M6	0.37	380	0.75	1500	78.4	0.95	37.5	1	7
TYC0.75-750-Z80M6	0.75	380	1.44	1500	83.2	0.95	37.5	1	12
TYC1.1-750-Z80M6	1.1	380	2.07	1500	85.1	0.95	37.5	1	14
TYC1.5-750-Z90L12	1.5	380	2.77	1500	86.5	0.95	75	1	16
TYC2.2-750-100L12	2.2	380	3.99	1500	88.1	0.95	75	1	22
TYC15-750-Z160L12	15	380	25.7	1500	93.4	0.95	75	1	125
TYC18.5-750-Z180M12	18.5	380	31.5	1500	93.8	0.95	75	1	160
TYC22-750-Z180L12	22	380	37.4	1500	94.1	0.95	75	1	175
TYC30-750-Z200L12	30	380	50.8	1500	94.5	0.95	75	1	240
TYC37-750-Z225S12	37	380	62.4	1500	94.8	0.95	75	1	275
TYC45-750-Z225M12	45	380	75.7	1500	95.1	0.95	75	1	305
TYC55-750-Z250M12	55	380	92.3	1500	95.3	0.95	75	1	375

Machanical data

Click here to contact us for more discounts！

EVER-POWER GROUP CO., LTD. is specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers’ drawings.

Innovative R&D Project: Many years of experience in motor customization and integrated design; Accumulated many years of motor technology advantages and numerous application cases. Smart high-volume manufacturing: Multiple automated and semi-automated production lines, producing more than 30,000 motors per month: Independent automation department promotes localization and innovation of automated production lines Internationally compatible quality management system: Consider the rationality and convenience of the production process from the design stage; Adopting internationally-compliant quality management systems, strictly managing production and quality; Professional and experienced service team: A dedicated customer demand analysis team is set up to respond to customer needs quickly and professionally; Professional sales engineers provide one-to-one, one-stop customized services; Competitive cost: The control system has a huge prototype database, providing reference data and saving development costs; A complete and stable supply chain system, obvious location advantages and saved logistics costs.
