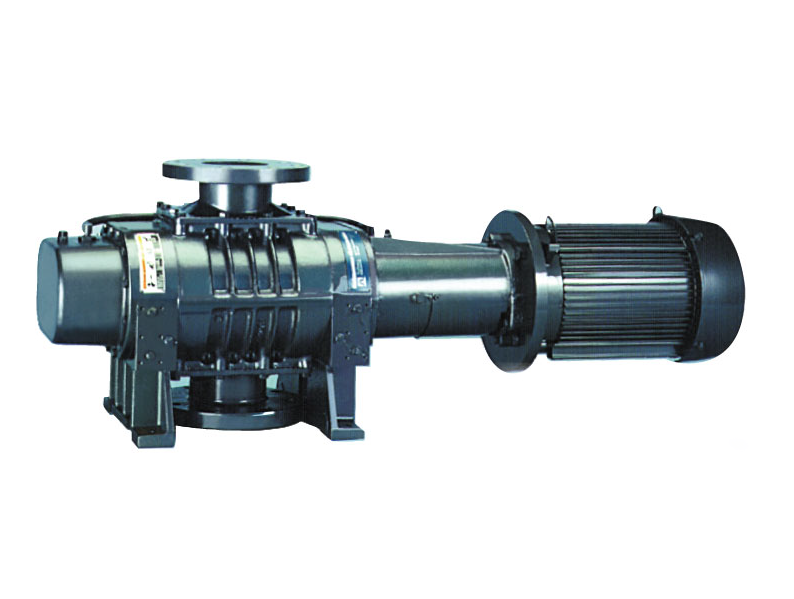

Low Noise KMBD540 KMBD2000 Screw Blower Vacuum Pump Roots Pump for Evaporation Coating Replacement of Kinney

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:297.81553398058253px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:297.81553398058253px}#detail_decora......Keywords:Low Noise Kmbd540 Kmbd2000 Screw Blower Vacuum Pump Roots Pump For Evaporation Coating Replacement Of Kinney - Buy Kinney Vacuum Pump roots Pump low Noise Kmbd540 Kmbd2000 Screw Blower Vacuum Pump Roots Pump For Evaporation Coating Product on CMN Industry Inc

Send Inquiry

Product Description

Our vacuum pump can perfectly replace the kinney vacuum pump, the following is the corresponding model of kinney

ROOTS PUMP is a positive displacement vacuum pump, also known as mechanical booster pump. It is one of the main pumping equipment for medium and high vacuum pumps at present. Its working principle is similar to Luodan blower. It uses two 8-shaped rotors to rotate synchronously in the pump shell to complete the process of suction and exhaust. The difference between zjp roots vacuum pump with overflow valve and z-li roots vacuum pump is that the inlet and exhaust ports of ZP pump are connected, A dead weight valve is vertically installed on the channel, which is used to keep the pressure difference between the exhaust port and the air inlet within a controllable value, which is the maximum pressure difference allowed when the pump operates reliably. Therefore, this valve is actually an overload automatic protection valve.

The greatest advantage of ROOTS PUMP is that it has a high extraction rate under low inlet pressure and can reach a relatively high limit vacuum. Since the pump is directly used for extraction, there is no relative moving contact between the main parts such as pump shell, rotor and end cover, the pump has stable operation performance, long service life and low maintenance cost, At present, this kind of pump is widely used in vacuum smelting, vacuum welding, vacuum casting, vacuum spraying, vacuum drying, vacuum power experiment, chemical pharmacy, electric vacuum device manufacturing and other vacuum treatment within the vacuum range that this type of pump can achieve

ROOTS PUMP
VP200	KMBD540
VP600	KMBD2000

Application

Roots pump with overflow valve is widely used in all aspects of vacuum acquisition. It extends the working range of oil sealed mechanical vacuum pump under low inlet pressure, has the characteristics of small volume and large pumping speed, and has large pumping speed within the inlet pressure range of 1 ~ 100Pa. It is especially suitable for vacuum systems requiring large pumping speed under low inlet pressure, such as vacuum drying of power transformer, power capacitor and power transformer Vacuum impregnation treatment, vacuum heat treatment, exhaust of vacuum smelting, pre extraction of vacuum coating equipment, exhaust of large-scale test wind tunnel and exhaust of lighting lamp production line, etc. If a suitable front-stage pump is selected, roots pump can also be widely used in the process of vacuum distillation, concentration and drying in food, chemical, pharmaceutical, light textile and other industries.

Hangzhou Ever-power Transmission Co., Ltd. is a manufacturer with decades of professional production experience of vacuum equipment. Its brand "Japanese business" has become one of the most influential brands in China. The company has strong technical force, professional technicians and decades of production experience, excellent processing equipment and strong awareness of quality management. Our products strictly implement ISO9001:2008 international quality system certification. So far, our factory has taken the lead in adopting German vacuum pump production technology. The core components are produced by the horizontal machining center and four axis vertical machining center imported from demagy, Germany. We provide our customers with vacuum equipment to meet their professional needs. Main products: single-stage rotary vane vacuum pump (XD, x), two-stage rotary vane vacuum pump (2x, 2XZ), roots pump (ZJ, jzp), water ring pump (SZ, 2BV, 2BEA), vacuum system (water ring closed-loop system, roots rotary vane unit, etc.), vacuum technology solution system. Main application fields of products: food machinery, pharmacy, refrigeration equipment, rubber machinery, solar photovoltaic, chemical vacuum heat treatment, smelting and other industries. We sincerely hope that we can continuously improve our service and provide customers with first-class vacuum products has always been our responsibility. We are willing to cooperate with you for common development and create brilliance.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
