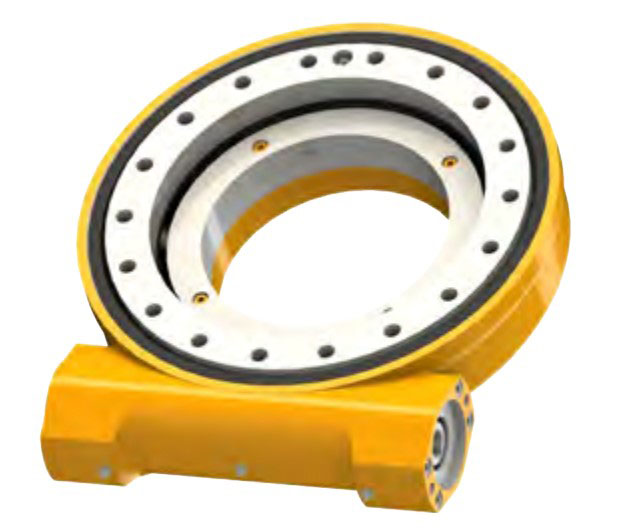

Hzpt rotary drive is a gearbox designed to handle radial or axial loads with high rotational torque. In addition, the slewing bearing is located in the center of the transmission, which enables it to withstand high overhang or moment loads. As the offspring of "worm" screw, rotary drive is widely used in engineering machinery, manufacturing industry, equipment and many other applications requiring strength and accuracy.
The physical characteristics of rotary drive make it a universal solution for many applications. In operation, the axial movement of the rotary drive or the movement about its axis interacts to generate a radial torque. This action occurs by meshing the groove of the horizontal screw with the teeth of the vertical gear. When rotating, the axial movement of the worm gear transmits the amplified torque to the radial gear. The number of threads on the horizontal screw and the number of interacting gears will determine the set speed ratio.
Depending on the task at hand, the swing drive has a variety of configurations. These can be single axis or double axis rotation.
The hourglass structure extends the ability of a single gear tooth to up to 11 to generate rotational torque by contacting the worm. Multiple gear teeth interact at the same time, making the equipment more efficient and generating more torque.
Rotary drive is most suitable for applications where high torque can achieve precise positioning and rotation accuracy. This design enables the device to work smoothly and forcefully with minimal clearance.
Due to the power and reliability generated by the rotary drive technology, the functions of this engineering technology are applicable to various types of equipment. For example, a special use of solar energy technology is to track the movement of the sun in a perfect time to produce the maximum energy output.
Any work requiring high load capacity and reliable positioning may require swing drive engineering.
Solid, stable and consistent rotary drives have a special position in manufacturing, construction and many other places. Based on hundreds of years of engineering concepts, the rotary drive operation equipment can be simple or complex, depending on the requirements.
Adding hydraulic, pneumatic or electric motors to single, double or hourglass designs depends on the application. Other functions, such as opening or closing the chassis brake or self-locking function, are one of many options.
The active application list of swing drive is very wide. Some industries need some form of rotary drive to improve their operational efficiency. Equipment used in mining, construction, metal processing and other applications requires uninterrupted strength and perfect accuracy, and rotary technology is used to ensure safety and accuracy.
Powerful equipment such as high-altitude lift, rotary forklift, truck mounted crane, cable winch, fire truck, hydraulic machinery and public equipment depends on the safety and strength of the slewing drive device.
Precision equipment, such as equipment, satellite antenna, solar tracker, printing press and telescope equipment, benefit from the sufficient precision provided by rotary drive.
In order to determine which kind of rotary drive you need, you must specify the configuration of the rotary drive and the purpose of the equipment; Each unit will have a different specification. When defining the type and capacity of the swing drive, the following variables are calculated:
*Transmission ratio*Accurate*Weight*Output*Tilting moment*Torque*Dynamic and static axial*Radial dynamics
