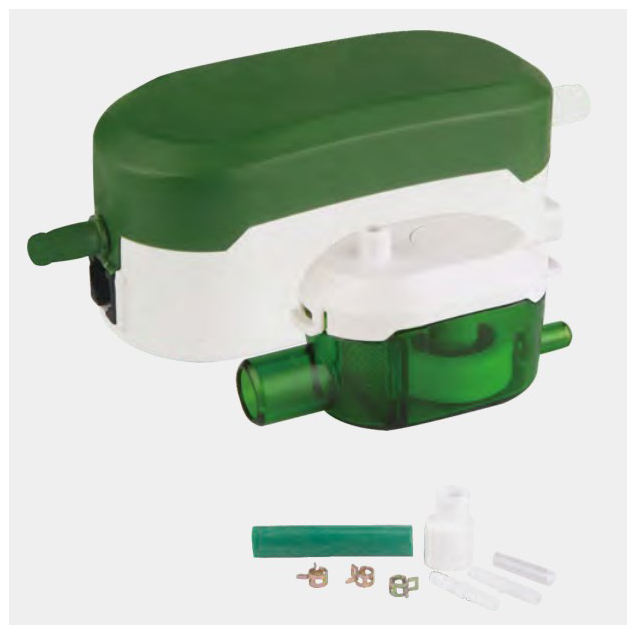

Max Discharge Head 10m 3W Power Consumption 35ml PC-12B PC-36B Mini-split Condensate Pump

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:686.25px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:686.25px}#detail_decorate_root .magic-3{border-......Keywords:Max Discharge Head 10m 3w Power Consumption 35ml Pc-12b Pc-36b Mini-split Condensate Pump - Buy Mini-split Condensate Pump condensate Pump pc-12b Pc-36b Mini-split Condensate Pump Product on CMN Industry Inc

Send Inquiry

Product Description

Product description: Cooling capacity of the air-conditionerhe AC cooling capacity ( often represented in kwh aibe found in your AC specifications ) is needed to estimate theamount of condensate discharged per hour ( kwh cooling load will generate about 04-0 . 8L / h ) Air-conditioners with largercooling capacities tend to generate more condensate than regular ones

Advantages:

Silent Operation ,Reliable Durable Ultra silent , non vibration Max discharge head at 10m Superior performance Plug play

Model	PC-12B	PC-36B
Voltage	100V-230V~/50-60Hz
Discharge head	Max.10m(33ft)
Suction lift	Max.2m(6.5ft)
Flow rate	Max.18L/h(4.8GPH) Max.36L/h(9.6GPH)
Tank capacity	35ml
Mini splits up to	8kW(30,000btu/hr)	15kW(45,000btu/hr)
Sound level at 1m	19dB(A)	21dB(A)
Ambient temp	0°℃~50℃
Power consumption	3W

The discharge headSelect a pump with a maximum lift rating that is suitable for your appll / on o oigure out the lift requirement for the pump by identifying where the pump wilmounted and where the discharge point wibe . Condensate flow will decrease in accordance with the height it must travel until maximum , or "shut-off" lift is reached..

Climate

Along with cooling capacity , location and climate also play a big role in measuring the amount of condensate . The dischargequantity can differ significantly between dry and humid climates . For example , the quantity of condensate in humid climatescan double that of dry climates . Therefore , you need a higher performance pump for humid climatic conditions.

Condensate Pump's Selection

Cooling capacity conversion 1btu / h = . 2931W , 1W = 3 . 412btu / h 1USRT = 3 . 517KW 1KW = 0 . 28434USRT
