Product Description

Model 6 series planetary gearbox The Model 6 series planetary gearbox is a gearbox that uses planetary gears to transmit torque and speed between the input and output shafts. It is designed for high torque applications, where accuracy and reliability are key factors. The Model 6 series gearbox is typically used in heavy-duty industrial machinery, mining equipment, and ship applications. The model 6 series planetary gearbox is similar in design to the models 4 and 5 series gearbox, but it has several advantages compared to these models. One of the main features of the Model 6 series transmission is its high torque capability, with a torque range of 500000 Nm to 5000000 Nm. This high torque capability is achieved through the use of high-strength materials and advanced manufacturing technology. Model 6 series planetary gearbox Another feature of the Model 6 series planetary gearbox is its low noise operation. The gearbox adopts optimized gear tooth shape and precision manufacturing design, which can reduce noise and vibration levels. This makes it an ideal choice for applications where noise reduction is very important. The Model 6 series planetary gearbox is also designed to be easily integrated with various types of motors, making it a popular choice for applications that require high power density and precise control. It has various transmission ratios and can be customized to meet specific torque and speed requirements. In addition, the Model 6 series planetary gearbox can withstand harsh operating conditions, including high impact loads, extreme temperatures, and exposure to water and dust. It is also corrosion-resistant and suitable for marine and offshore applications. Overall, the Model 6 series planetary gearbox is a reliable and durable solution for high torque applications, with precision and reliability being key factors. Its high torque capacity, low noise operation, and easy integration with various types of motors make it a popular choice for various industrial and marine applications.

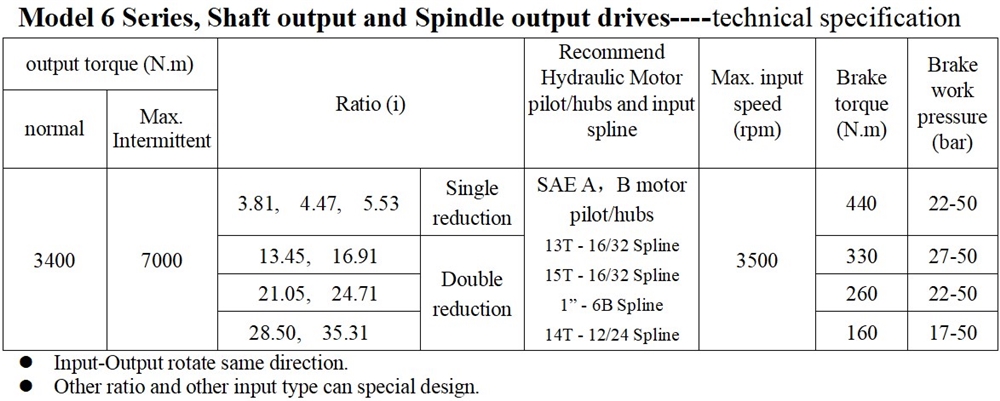

FEATURE CHART: MODEL 6 SERIES,SHAFT OUTPUT and SPINDLE OUTPUT DRIVES, SINGLE REDUCTION

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 6

MOTOR PILOT/HUBS

SAE A
SAE AF
SAE B
SAE BF

A
AF
B
BF

MOTOR INPUT SPLINE

INPUT SHAFT OPTIONS

13T - 16/32
1”- 6B
14T - 12/24
15T - 16/32
1-1/2”Keyed

13
6B
14
15
KOO

KOO

RATIO OPTIONS

3.81, 4.47, 5.53

03, 04, 05

OUTPUT SHAFT OPTIONS

OUTPUT SPINDLE OPTIONS

1-3/4 J501 Taper
17T-12/24 Spline
23T-12/24 Spline
23T-12/24 Short
1.75 Keyed
2.00 Keyed
2.00 Hollow
1.75 Hollow
2.00 Keyed
2.00 Round
2.56 Round
2.00 Hex
F1, F2, F3,
F3, F4, F5

T1
17
23
23S
K1
K2
K3
K4
K5
A1
A2
H1
F1, F2, F3
F3, F4, F5

BRAKE

160N.m
260N.m
330N.m
440N.m
Without Brake

B4D
B4F
B4H
B4L
WO

WHEEL STUDS(Only for output spindle)

1/2"×1.62
9/16"×2.75
NONE

4
7
0

Example of complete order code:

KOO

FEATURE CHART: MODEL 6 SERIES,SHAFT OUTPUT and SPINDLE OUTPUT DRIVES, DOUBLE REDUCTION

OPTIONS

DESCRIPTION

ORDER NUMBER

USE OPTION ORDER CODES TO BUILD ORDER NUMBER

MODEL SERIES

MODEL 6

MOTOR PILOT/HUBS

SAE A
SAE AF
SAE B
SAE BF
SAE C

A
AF
B
BF
C

MOTOR INPUT SPLINE

INPUT SHAFT OPTIONS

13T - 16/32
1”- 6B
14T - 12/24
15T - 16/32
1-1/2”Keyed

13
6B
14
15
KOO

RATIO OPTIONS

13.45, 16.97
21.53, 24.71
28.50, 35.31

13, 16
21, 24
28, 35

OUTPUT SHAFT OPTIONS

OUTPUT SPINDLE OPTIONS

1-3/4 J501 Taper
17T-12/24 Spline
23T-12/24 Spline
23T-12/24 Short
23T-8/16 Spline
1.75 Keyed
2.00 Keyed
3.00 Keyed
2.00 Hollow
1.75 Hollow
2.00 Keyed
2.00 Round
2.56 Round
2.00 Hex
F1, F2, F3,
F3, F4, F5

T1
17
23
23S
23L
K1
K2
K2B
K3
K4
K5
A1
A2
H1
F1, F2, F3
F3, F4, F5

BRAKE

160N.m
260N.m
330N.m
440N.m
Without Brake

B4D
B4F
B4H
B4L
WO

B4L

WHEEL STUDS(Only for output spindle)

1/2"×1.62
9/16"×2.75
NONE

4
7
0

Example of complete order code:

B4L

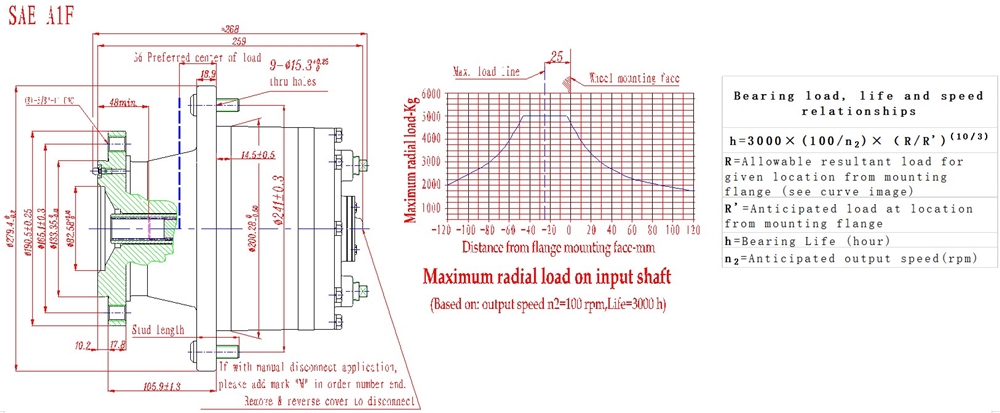

Model 6 Swing drives---dimensions (Style “SW”)

How to install the model 6 series planetary gearbox? The correct installation of the Model 6 series planetary gearbox is crucial for ensuring its reliable and efficient performance in demanding applications. Here are some important tips for installing the Model 6 series planetary gearbox: Model 6 series planetary gearbox 1. Check lubrication: Regularly check the lubrication of the gearbox to ensure it is fully lubricated. Use recommended lubricants and replace them at recommended intervals. Proper lubrication is crucial for preventing wear and tear on gears and other components. 2. Check for leaks: Check for leaks around the gearbox. If any leaks are found, immediate action should be taken to prevent damage to the transmission and other components. 3. Check the backlash: Regularly check the backlash of the gearbox to ensure it is within the recommended range. Excessive backlash may damage the gears and reduce the accuracy of the system. 4. Check for wear and damage: Regularly inspect the gearbox for wear and damage, such as cracks, debris, or other signs of wear. If any damage is found, please handle it immediately to prevent further damage to the gearbox and other components. 5. Check installation: Check the installation of the gearbox to ensure it is fully secured. Loose installation may cause vibration and damage to the gearbox and other components. 6. Keep the gearbox clean: Keep the gearbox clean and free of dirt and debris. Dirt and debris may damage gears and other components, and reduce the efficiency and performance of the gearbox. 7. Follow the manufacturer's recommendations: Follow the manufacturer's recommendations for gearbox maintenance and operation. This includes recommended lubricants, operating temperatures, and other important information. By following these tips, you can help ensure the reliable and efficient performance of the Model 5 series planetary gearbox. Regular maintenance and inspections also help prevent expensive repairs and shutdowns in industrial or marine applications.

Application of 6-series planetary gearbox The Model 6 series planetary gearbox is a high torque solution designed specifically for heavy-duty industrial machinery, mining equipment, and ship applications. It is a reliable and durable gearbox that can handle high torque loads and provide precise control in demanding applications. The following are some common applications of the Model 6 series planetary gearbox: 1. Mining equipment: The Type 6 series planetary gearbox is commonly used in mining equipment such as crushers, conveyors, excavators, etc. These applications require high torque and precise control, and the Model 6 series transmission can provide these functions. 2. Marine applications: The Model 6 series planetary gearbox is also used in marine applications, such as ship propulsion systems and deck machinery. These applications require gearboxes to withstand harsh operating conditions, including exposure to water and salt spray. 3. Heavy industrial machinery: Model 6 series planetary gearbox is applicable to heavy industrial machinery, such as steel mills, Paper mill and power plants. These applications require gearboxes that can handle high torque loads and provide precise control. Model 6 series planetary gearbox 4. Renewable energy: The Model 6 series planetary gearbox is increasingly being used for renewable energy applications, such as wind turbines and solar tracking systems. These applications require gearboxes that can handle high torque loads and provide precise control under variable operating conditions. 5. Aerospace applications: Model 6 series planetary gearboxes are also used for aerospace applications, such as satellite tracking systems and Space exploration equipment. These applications require a gearbox to handle high torque loads and precise control under extreme operating conditions. Overall, the Model 6 series planetary gearbox is a multifunctional and reliable gearbox that can be used in various industrial and marine applications. Its high torque capacity, low noise operation, and easy integration with various motors make it a popular choice for applications that require precise control and high power density.

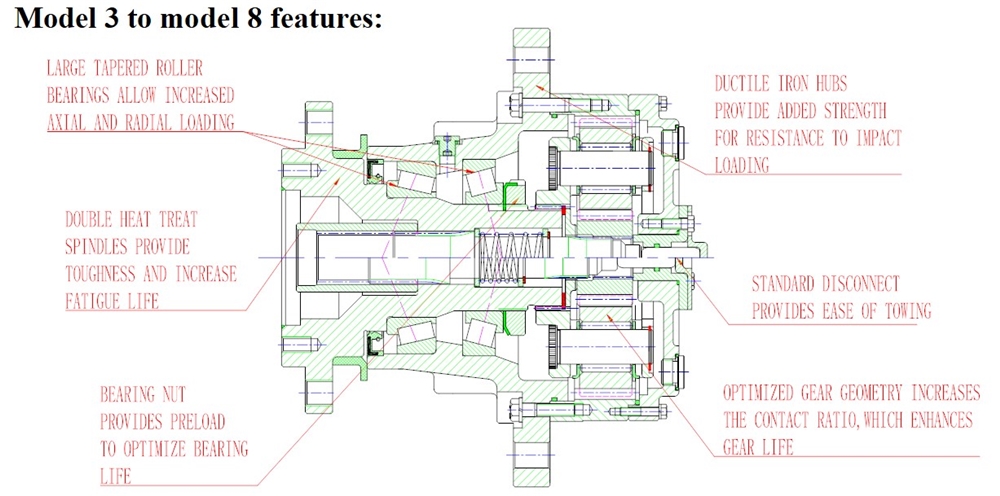

Our Factory At present, we produce NB3 series planetary gearbox, NB4 series track transmission, NB7 series rotary transmission, NB6 series wheel transmission, and American series planetary gear transmission; It has developed to 10000 specifications, with a reduction ratio range of 3.3 to 9000 and an output torque range of 500 to 450000N. m. Its products are exported to over 90% of the United States, Europe, Australia, South America, the Middle East, and Southeast Asia. We use well-known planetary gearboxes from Europe and America to manufacture products. The installation and dimensions of planetary gearboxes are identical and can be completely interchangeable for use. The company has a number of automatic integrated machining centers, CNC grinders, CNC gear machines, CNC machine tools and other high-quality equipment made in Made in Taiwan and Made in Taiwan, thus ensuring high-precision parts. Employees must undergo strict professional training, good skills, and excellent qualities. Adopting modern computer systems for comprehensive management, we have successfully passed the ISO9001:2000 quality system certification. This catalog introduces the Model 3 to Model 8 series of planetary gear transmissions in the United States. We provide services in design, engineering, prototype support, as well as complete testing and production capabilities. Product applications include aerial elevators, agriculture, automobiles, construction, forestry, industry, and the ocean.

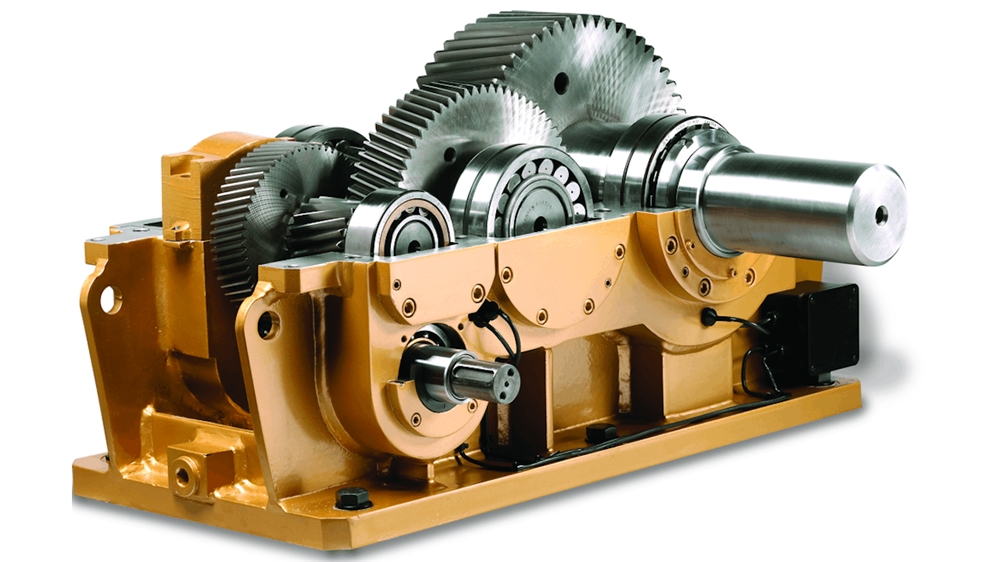

Other Types of Planetary Gearboxes

For more models or customization, please click here!

Click on the picture below for details

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
