Product Description

Worm Gear Screw Lift Jack System Swl Base Shoring Heavy Duty Landing Rod Trolley Hand Crank Geared Rack Screw Lift Jack

Function:

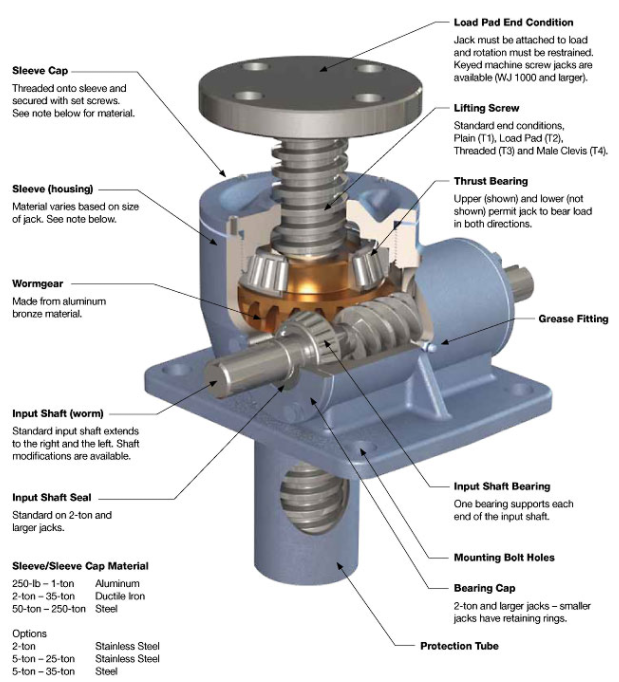

Screw jack/lift is a basis jack-up part, accomplanish the fuctions such as
lifting, drop, push and inverting through worm gear drives screw.
Advantages:
-Self-locking ability
-Can be driven directly by motor or other power or manual
-Can be customized according user's demand
-Compact configuration, small size, lightweight
-Convenient installation, flexible operation
-High reliability and stability
-Long service life
-More connection form etc.
Application Industry:
Screw jak is applied to all fields for lifting or pulling, such as
Aircraft maintenance platform, Solar plate, machinery, metallurgy,
water conservancy, medical treatment, chemical industry, culture and
hygienist etc.

Model				QJC-1.5B	QJC-3B	QJC-5B	QJC-10B	QJC-16B	QJC-20B
Rated capacity			t	1.5	3	5	10	16	20
Test load			kN	18.4	36.8	61.3	122.5	196	245
Lifting height			mm	350	350	300	300	300	400
Min.start jacking height	Over-bracket	mm	725	725	725	800	800	950
Min.start jacking height		Under-bracket	mm	70	75	75	85	95	110
Lifting height for the handle turn a ring			mm	15	8.5	4.3	5.0	3.5	2.5
The handle pull to lift full load			N	280	310	350	680	680	700
The number of operator			PCS	1	1	1	2	2	2
The handle turning radius R			mm	250	250	250	300	300	300
Dimensions mm			A	125	185	192	242	285	376
				B	293	304	330	485	492	505
				B1	193	204	232	254	282	295
				H	722	724	724	796	798	948
				h	68	72	74	82	93	108
				L	130	130	130	250	250	250
				W	130	130	150	150	160	200
				P	140	140	170	170	190	230
Net weight			kg	14.5	21	30	49	68	93
