Product Description

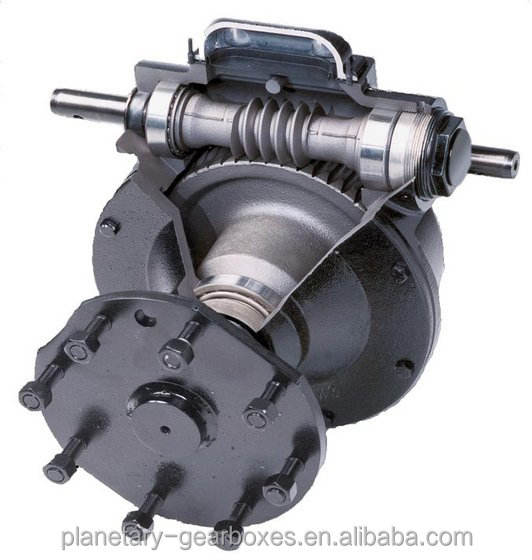

gearbox for center pivot irrigation system Gear Box for Valley Pivots replacement for Zimmatic Center Drive

Product category	Irrigation special gearbox
Input speed	<1500r/min
Body material	Cast iron
Input style	solid shaft
Output style	Hub connecting flange
Other characteristics	irrigate machine gearbox
Shaft orientation	90 degrees vertically
Gear type	Worm gearbox
Fixed way	flange
Ratio	50:1
Out Torque	Standard
Other parameters	Can replace UMC, DURST, ZIMMATIC, Valley gearbox

nput and output bearings: American made and case hardened; Industrys highest load rating for longer life

Gearbox housing: More material in high-stress areas to handle extreme operating conditions
Bronze bull gear option: Provides additional load capabilities with hardened steel worm for extreme operating conditions or extended life under less severe conditions

Large-capacity rubber diaphragm: Expands with heat and pressure to minimize water condensation.
Input and output bearings: American made and case hardened to provide the highest quality and highest load rating available in the industry.
Worm gear: High-strength ductile iron provides significantly longer wear life than steel when combined with a cast iron bull gear.
Tooth design: Industry exclusive 25° tooth angle provides 40% longer life and better reliability in tough conditions compared to normal 14 1/2° tooth designs.
Largest bull gear neck and keyway: For strength in critical load-bearing area.
Expansion chamber: Cap made of corrosion-resistant cast aluminum; rubber diaphragm allows oil to expand and contract during operation. Vented cap prevents pressure buildup and prevents seals from leaking.
Threaded endcap: Allows accurate bearing preload to increase bearing life.
50:1 gear ratio: Fully recessed tooth design keeps oil between engaged gears.
Bull gear: High-strength cast iron provides the highest load capacity and longest life in the industry. Optional bronze gear is available for extreme conditions.
Multi-viscosity gearbox oil: Exceeds 85w140 GL5 oil for long gear wear under extreme load conditions.
