New type ATV farm equipment disc harrow for sale
Company information :
:
:.
Main products :disc harrow , disc plough , cultivator, rotary tiller , trailer , sprayer , fertilizer spreader and so on.


ATV Disc harrow description :
Quadivator ATV tandem disc is a heavy-duty tandem disc designed ATVs but can also be used with UTVs, small tractors, or any other vehicle equipped with a 50 mm / 2'' hitch ball. The tandem disc comes with notched front discs that can easily cut through larger hard patches of soil, turf, and furrows and can also be used for grinding up dried vegetation for fallows. The ATV tandem disc is ideal for use in heavy weed-infested or high stubble/trash areas, and for discing-in fall garden vegetation.
The tandem disc is light and easily maneuverable making it also well suited for wet or boggy ground and tighter spaces, where larger equipment might struggle. The tandem disc attached to an ATV is capable enough for small and medium scale farming making work simple and fast.
ATV Disc harrow specification is as following :
| Model | ATV-900 |
| Working width | 900mm |
| Working depth | 140mm |
| Diameter of disc | 410mm |
| Thickness of disc | 3mm |
| Weight | 120kg |
| Matched power | 12-15hp |
| No. of disc | 8pcs |
| Bearing | sealed bearing pedestal, with grease fitting ,can add oil after working |
| Linkage | ball head link |

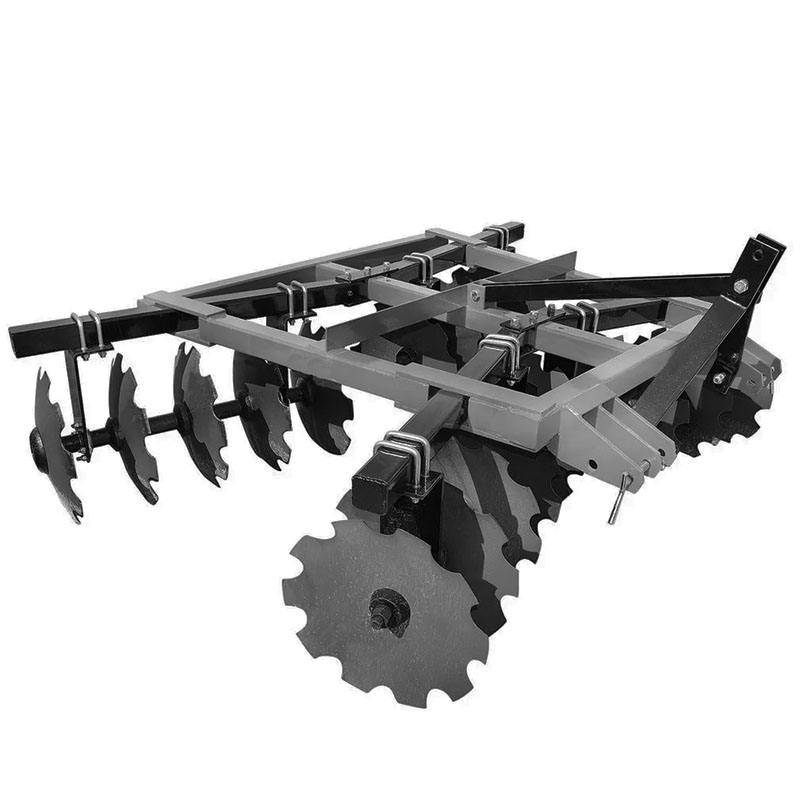

ATV Disc harrow picture :


Package is as following :
10sets packed in one iron case ,the package size is 2200*1000*720mm. so one 20'' containter can hold 90sets or 110sets.


The heavy duty disc harrow is packed in pallet and iron case, and if you want to hold more sets, i will suggest you to do the nude package, so one 20 feet containter will hold 16sets .


1. Warranty time
1.We can supply samples for customers.
2.We supply you 2 years warranty time.
2. Spare Parts
The Easy-damage parts, we will send you together with the Product for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3.Payment way
1. We accept T/T 30% in Advance, and 70% T/T after Shipping.
2. We alos accept L/C at sight
4.More information, please contact us
