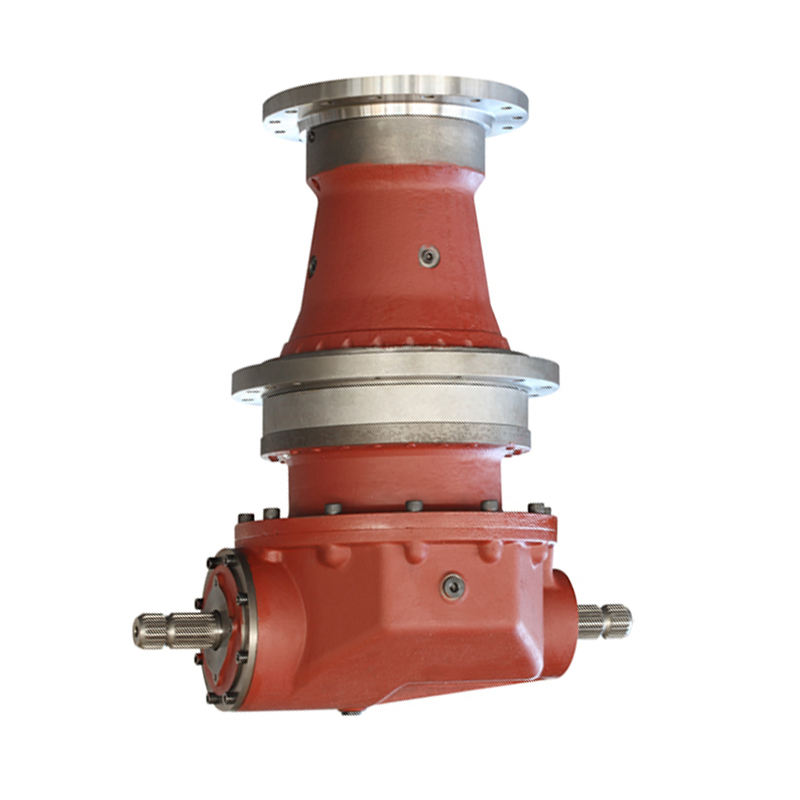

XHG01 series is a new type jiont developed by our company and domestic university. With its characteristics of big torque, reliable function, stable transmission, low noise, easy to be lubricated and long service life, it is widely used for industrial and agricultural agitators.
This series gearbox has already achieved national patent.
Details:
- ISO9001 Quality System examined & verified by Third Party of CQC and passed second-degree safety quality standardization for machinery manufacturing enterprise.
- Precision forging, cutting by CNC machine, heat treatment by German IPSON & laser techniques .
- Strictly quality control by German CMM.
- Various of gearboxes used in agricultural machines and industrial machines.
- Advanced technics, strong self-development power, able to produce new type gearbox according to customer's design drwings.
| Code |
Gear Ratio(i) |
Power (HP) |
Output Torque (Nm) |
Input Speed (r.p.m.) |
Input Torque (Nm) |
Weight (kg) |
| XHG01.51000.00 | 21.108 | 32.18 | 12010 | 540 | 569 | 256 |
| XHG01.51000.01 | 13.402 | 76.04 | 18020 | 540 | 1345 | 256 |
| XHG01.51000.02 | 25.986 | 72.62 | 18020 | 1000 | 693 | 290 |
| XHG01.51000.03 | 18.218 | 41.90 | 13500 | 540 |
741 |
256 |
| XHG01.51000.04 | 13.402 | 67.51 | 16000 | 540 | 1194 | 256 |
| XHG01.51000.05 | 13.402 | 76.04 | 18020 | 540 | 1345 | 280 |
| XHG01.51000.06 | 25.986 | 76.62 | 18020 | 1000 | 693 | 290 |
| XHG01.51000.07 | 25.986 | 76.62 | 18020 | 1000 | 693 | 290 |
| XHG01.51000.08 | 28.321 | 59.16 | 16000 | 1000 | 565 | 290 |
| XHG01.51000.09 | 28.321 | 59.16 | 16000 | 1000 | 565 | 290 |
