Product Description

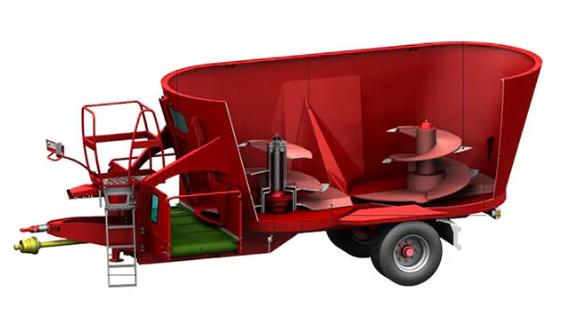

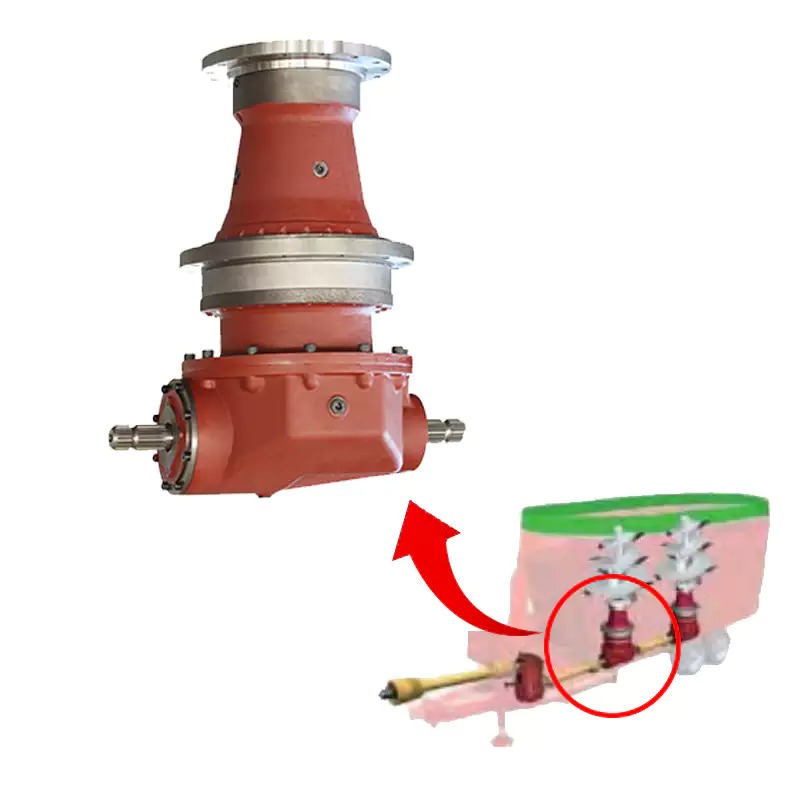

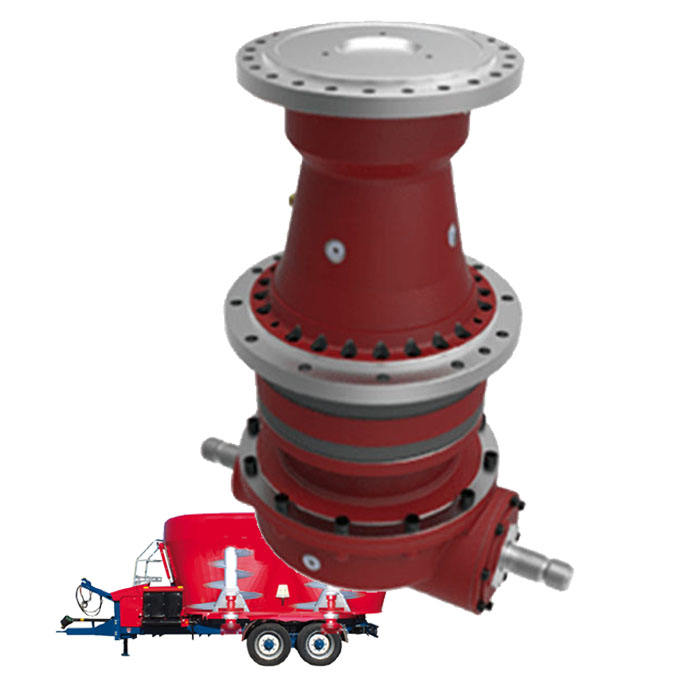

Description of PAG Auger Drive Planetary Gearbox Planetary gear boxes of feed mixers are widely used in agricultural and animal husbandry machinery in cattle farms. Ever power has developed more than 20 planetary gear reducers and feed mixer gearboxes of different sizes for regular customers. Popular models are available from stock. For the planetary gearbox of the feeding mixer driven by the tractor, the input speed usually does not exceed 540pm, and the output speed range is 20pm to 25m. The number of cows usually exceeds 200. The vertical planetary reducer of TMR mixer is a popular type of TMR mixer / feed. It is used in the gearbox of the mobile feeding mixer. Average mixing capacity: ≤ 25m3sgr provide planetary gearboxes of various sizes for mobile TMR feed mixer

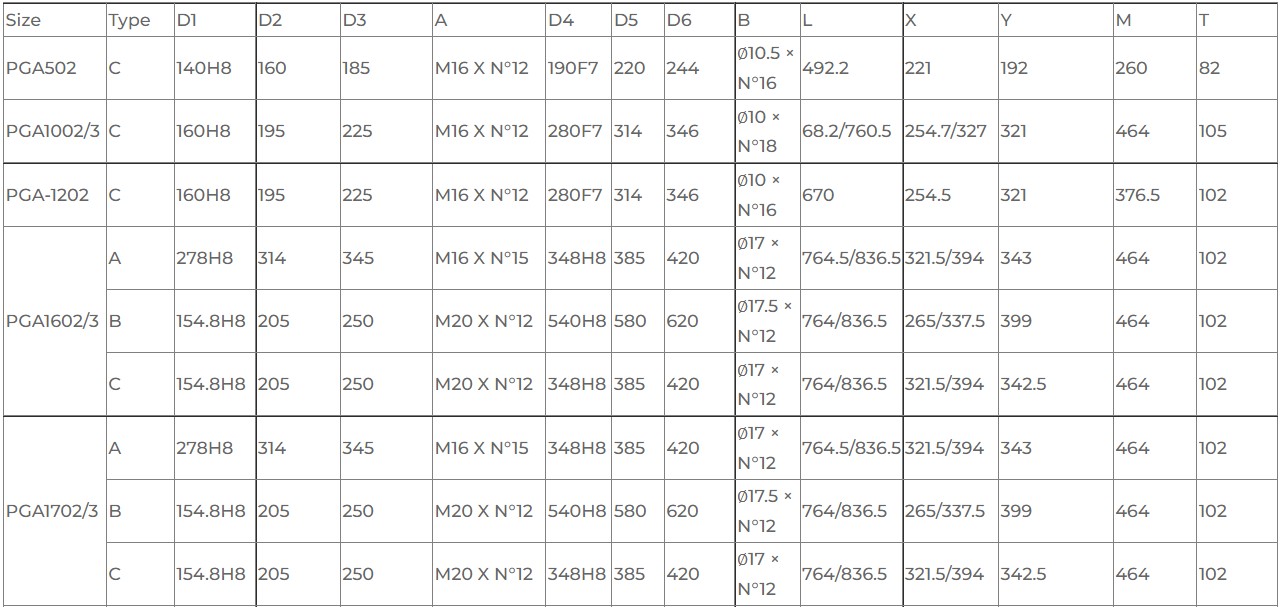

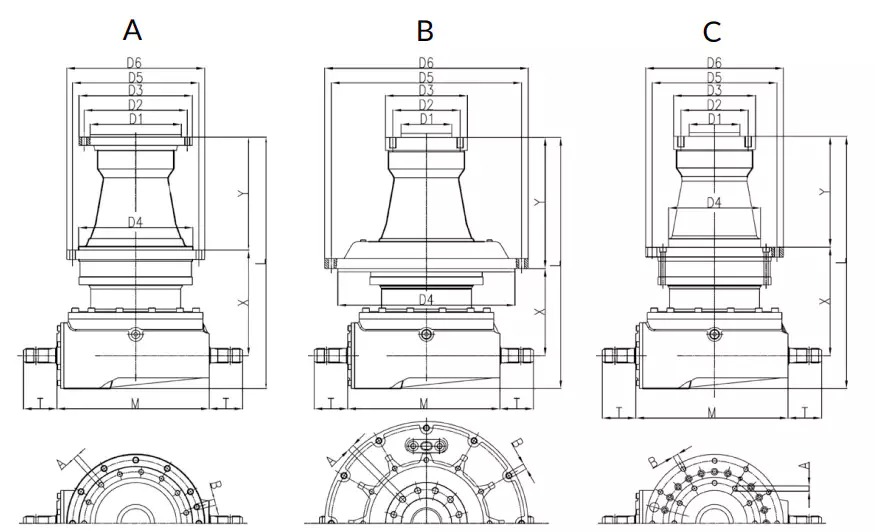

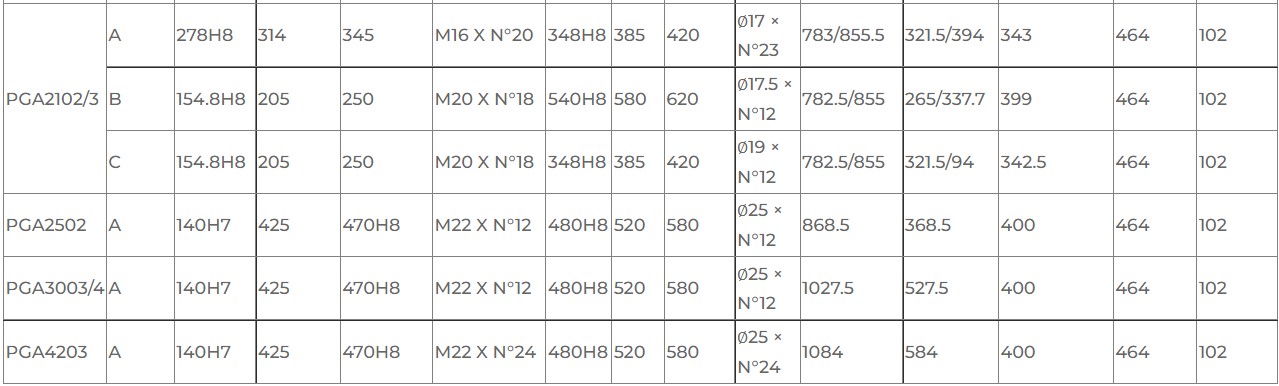

Parameter of PAG Auger Drive

Size	Continuous Torque Nm	Maximum Torque Nm	Input speed RPM	Transmission Ratio（Min-Max）i	Input Shaft
PGA502	3810	7620	540	12.36-15.51	1" 3/8 Z6
PGA1002/3	8500	17000	540	16.8-30.6	1" 3/4 Z20
PGA1202	11600	23200	540	11.1-19.4	1" 3/4 Z20
PGA1602/3	15700	31400	540	13.4-47.5	1" 3/4 Z20
PGA1702/3	15700	31400	540	13.4-47.5	1" 3/4 Z20
PGA2102/3	21000	47000	540	12.1-62.1	1" 3/4 Z20
PGA2502	23780	48000	540	13.6-23.6	1" 3/4 Z20
PGA3003/4	30760	61520	540	25.7-84.4	1" 3/4 Z20
PGA4203	42000	142000	540	27.8-91.4	1" 3/4 Z20

ITEM no.	Ratio	Power KW	Output Torque (Nm)	Input speed(r.p.m)	weigh(Kg)
E1	14.6	61.97	16000	540	256
E2	18.2	46.61	15000	540	256
E3	28.27	59.27	16000	1000	290
E4	16.13	55.04	15700	540	256
E5	18.2	41.95	13500	540	256
E6	21.1	32.16	12010	540	256
E7	13.4	76.05	18020	540	280
E8	28.27	61.12	16500	1000	330
E9	25.89	72.89	18020	1000	290
E10	13.4	67.52	16000	540	256
E11	25.89	34.95	16000	540	290
E12	13.4	67.52	16000	540	256
E13	18.2	41.95	13500	540	256
E14	21.1	32.16	12000	540	256
E15	25.8	73.14	18020	1000	290
E16	13.38	76.16	18020	540	256

Characteristics of PAG auger drive Modular Auger Drives

> transmission of the vertical and horizontal drive to the augers

> compact and versatile solutions that can be combined with hydraulic motors.

Planetary Wheel Drives

> compact drives

> high level of performances

> robustness > easy and economical installation on machines

> reliability for the application

> excellent mobility required by vehicle type.

Modular design, easy to install Peak torque capacity Lubricated upper bearings ensure faster, unobtrusive performance 16.32:1 wide scale range to achieve multi-functional performance Labyrinth seal protection increases durability and stability Modular design, easy to maintain industrial gearbox High performance output, compact size PAG planetary gearbox is characterized by fast cleaning speed

Application of PAG screw transmission The planetary gearbox manufactured by Reggiana riduttoiri is used to provide the rotation of feed mixer and biogas plant. The planetary gear transmission structure is firm and compact, and the installation is simple: Carriage Self propelled machine Stationary machine It ensures the operation of feed and biogas applications.

PAG auger drive manufacturer For 15 years, we have been focusing on mechanical transmission solutions. We are always committed to providing customers with high-quality reducers and professional configurations to meet their unique requirements. We have established long-term cooperative relations with customers in many fields. We sincerely hope that you can become one of them and work with us to promote technological progress and explore the future.

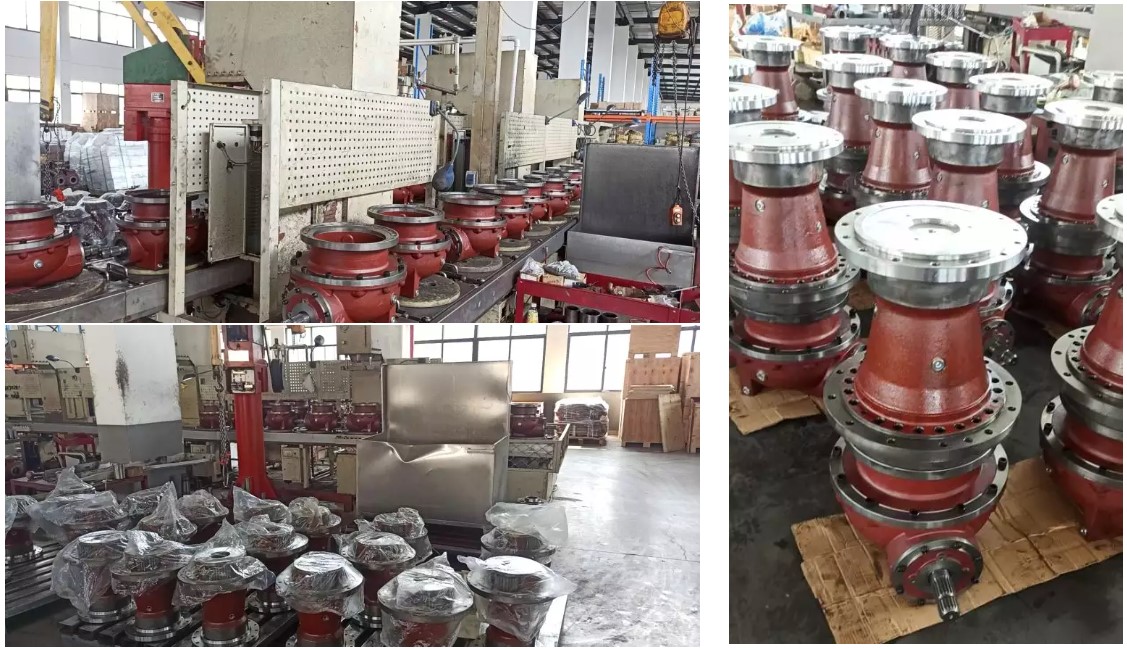

We have the most advanced testing equipment, such as spectrum analyzer, tensile strength tester, impact value tester, hardness tester, magnetic particle flaw detector, sand blasting machine and heat treatment equipment, which are used to detect the chemical composition of rubber materials. In addition, the precision machining workshop has advanced equipment: 23 CNC lathes, 10 vertical CNC boring and milling machines imported from South Korea, 1 horizontal boring and milling center, 2 ordinary milling machines, 2 general lathes, 1 grinder, 10 drilling machines and taps, 2 semi-automatic saws, 1 coordinate measuring machine, 1 projector, 1 processing surface quality testing machine, 1 precision machining workshop, 1 milliampere hour altimeter. The tolerance of our products can be controlled below 0.01mm.

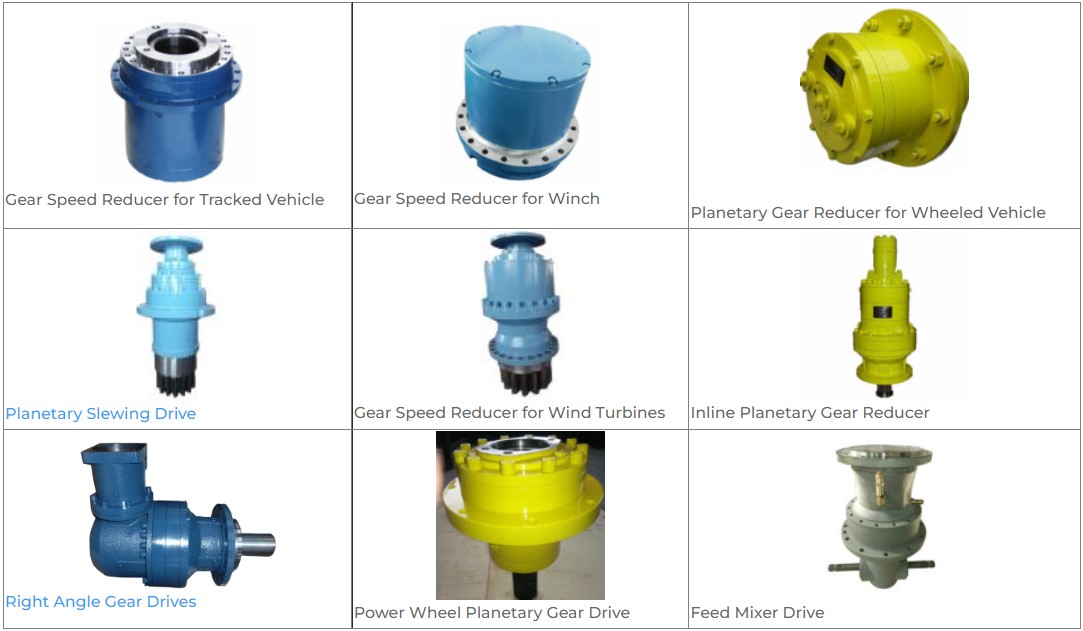

Other Types of Planetary Gearboxes

For more models or customization, please click here！

We also provide feed mixer parts

Planetary gearbox for feed mixer

Couples the Driveshaft to the Vertical Auger.

PTO Shaft

Couples between the tractor power take-off and the driveshaft.

Auger Knives

Cuts the feed material as the auger rotates.

Trailer Jack

also known as hitch jack or tongue jacks. Raises and lowers the height of the trailer tongue and coupler.

Conveyor sprocket & chain

Various sprockets and chains are used not only in the feeding system but also in various drive systems of the mixer.

Driveline Bearing

Pedestal bearing is also called Plummer block or pillow block. It supports a rotating shaft with the help of compatible bearing &
various accessories.

Wheel & Wheel Hubs

Hydraulic Motor and Hydraulic Cylinder (push rod)

Drive Motor

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
