Professional 2xz-2 Series Two-stage Low Noise Rotary Vane Vacuum Pump with Low Price

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:435.1145038167939px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:435.1145038167939px}#detail_decorate......Keywords:Professional 2xz-2 Series Two-stage Low Noise Rotary Vane Vacuum Pump With Low Price - Buy 2xz-2 Series Rotary Vane Vacuum Pump,Two-stage Rotary Vane Vacuum Pump,Low Noise Rotary Vane Vacuum Pump Product on CMN Industry Inc

Send Inquiry

Product Description

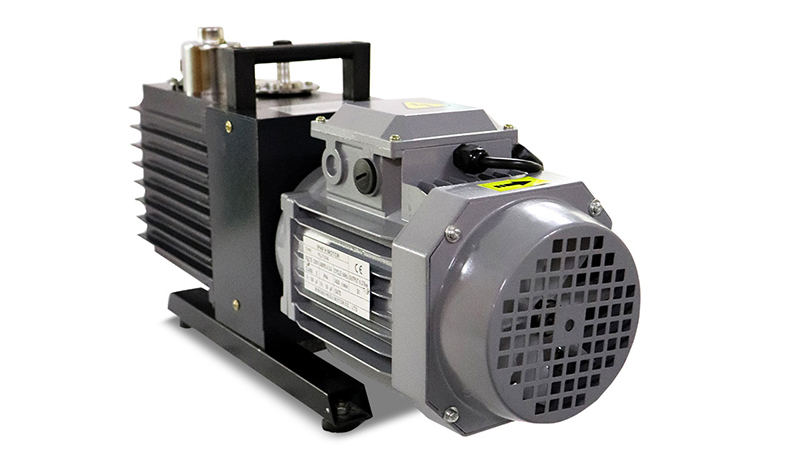

2XZ -2 Series Rotary Vane Vacuum Pump

2XZ - 2 series rotary vane vacuum pump is a two-stage high-speed direct-drive rotary vane vacuum pump (in the following called “the pump” for short). Its working principle is the same as the 2XZ type pump. Rotors are eccentrically mounted within the cylindrical housing of the stators, and vanes are fitted freely inside the respective slots of the rotor.

2XZ-2 double stage rotary vane vacuum working principle

2XZ series rotary vane vacuum pump is a dual stage high-speed direct coupling structure rotary vane type vacuum pump, which is the essential equipment used to pump gas of the sealing container. The pump cavity is provided with a rotor, and the rotor slot with a rotary vane. The rotor drives the rotary vane rotation, the rotary vane is close to the chamber wall and separates the air inlet port from the discharge port, and the air inlet area of cavity volume is periodically enlarged and inhaled; discharge chamber volume is reduced regularly and compressed gas, open the exhaust valve to exhaust gas and then to obtain vacuum.

Its operating performance is composed of two parts: the high and the low levels. Its suction is connected to vacuum equipment; when in operation, The gas in the container will have a large number of suction and discharge; when the equipment got vacuumed, the high-pressure-grade exhaust valve is closed, high-pressure grade inlet gas will be transferred to the second level, and through the second stage suction and discharge vacuum equipment, it can obtain a particular vacuum. Pump connecting shaft with motor, high speed, small appearance, compact structure, convenient mobility work.

Advantage:

1. It is equipped with an anti-oil return device when the pump is stopped, which is convenient to restart.
2. Light weight, small size and low noise.
3. Equipped with a gas ballast valve to remove a small amount of water vapor.
4. High pumping speed can still be maintained under low pressure.
5. No oil return, no pollution and energy saving.
6. Beautiful appearance and low price.

Applications:

2XZ Series Rotary Vane Vacuum Pump is widely used in aerospace, semiconductor, coating, food packaging, drying, refrigeration, scientific research, medical, electronic, chemical, pharmaceutical and other professional units, colleges, universities and other departments of the laboratory.

Products Parameters

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
