Home > Products > Ungrouped > Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price
Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price

Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price

#detail_decorate_root .magic-0{vertical-align:top}#detail_decorate_root .magic-1{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-2{vertical-align:top;box-sizing:border-box;pa......Keywords:Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant For Restaurant Use Low Price - Buy Bl Series Stainless Steel Leaf Chain high Strength Leaf Chain heat Resist Stainless Steel Leaf Chain Product on CMN Industry Inc

Send Inquiry

Product Description

Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price

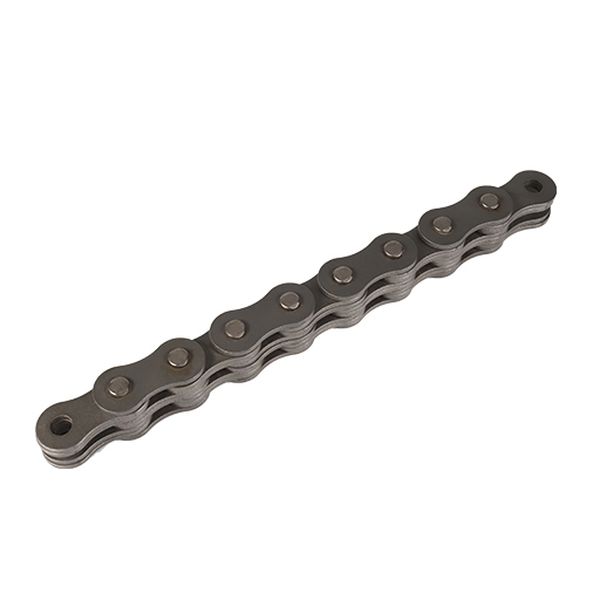

AL Series Leaf Chain

Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price

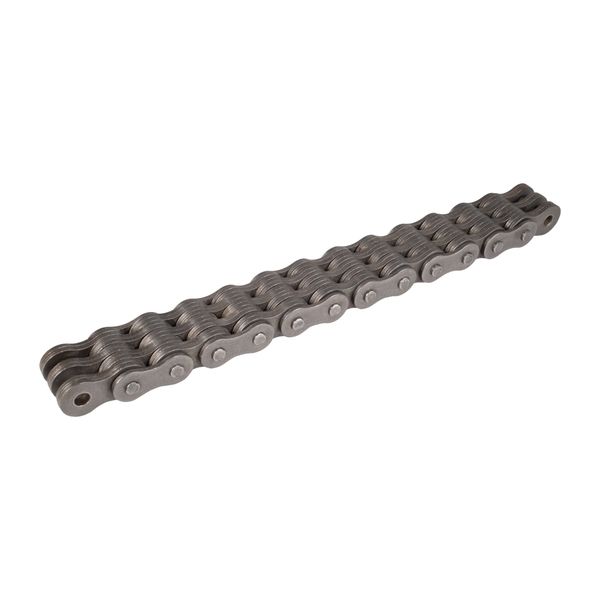

BL Series Leaf Chain

Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price

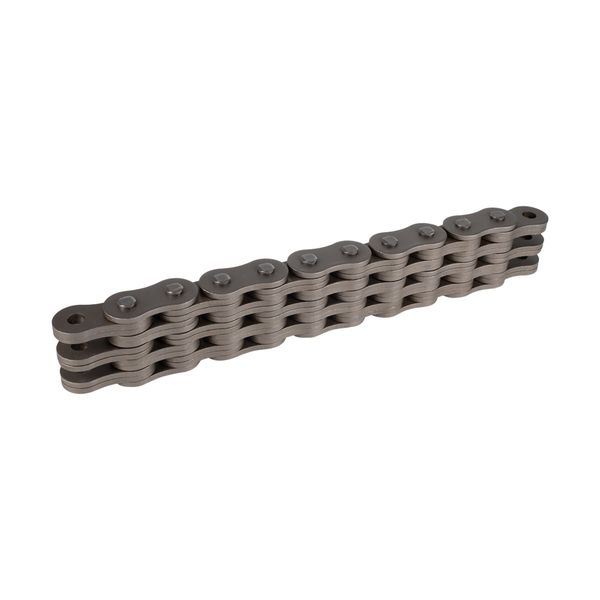

LL Series Leaf Chain

BL Series Leaf Chains

We have the leaf chain for you whether you are looking for a BL series leaf chain for forklifts or even gantry cranes (container cranes). BL series leaf chains are considered “heavy duty” style leaf chains because of their thick side panels and oversized pins. The large pins are an ANSI B299 standard that enables these chains to have ultra-high tensile strength and shock load capacity. For example, a BL8 series leaf chain uses an ANSI #100 chain pin diameter.
Regarding our BL series leaf chain selection, we go above and beyond the “standard” by using fully heat treated and shot peened plates (leafs) and pins. And a preventative pre-stretching/preloading process ensures our advertised advantages are accurate. Exceeding the industry “standard” is our leaf chain selection to become one of the most popular products in the industry. We offer stainless steel or premium quality leaf chains depending on your application and requirements. In addition, we can supply stainless steel and anti-corrosion-coated lead chains on request.

Leaf chain application industry
Leaf chains are steel link plates that can be adjusted to achieve the required tension. They are used where a chain needs to be held in tension and can move in either direction. These chains are used in many industries. Here are some things leaf chains are used for.
(1) Agricultural Applications A leaf chain is a specialized chain that consists of figure-eight steel link plates that move around the axis of a pin. They can move in either direction and are commonly used in agricultural applications. Agricultural leaf chains are a versatile choice for many applications. The design allows for more flexibility when it comes to customization. High-quality steel can be welded to bars and conveying components to meet requirements. These chains are used in machines for enterprise-level farming.
(2) Conveyor Applications Leaf chains have a unique design. Unlike other chains, leaf chains consist of pins and link plates that alternate between the pin and articulated links. They are commonly used for conveyor applications, counterbalancing, lifting, and straddle carriers. They are highly malleable, with high strength and high yield strength. Their high yield strength and low wear resistance make them the best choice for conveyors. A leaf chain is a movable assembly that must withstand high loads. It should be durable enough to handle the stresses placed on it. (3) Industrial Applications Leaf chains are a standard transmission and lifting device. They are most often used in drives with high power and slow speeds. They are also suitable for clean environments and can withstand high and low temperatures. These chains are used in many industrial applications, including in the bulk materials industry, lifting equipment, and construction machinery. They are specifically used for ascent and descent platforms. The leaf chain is manufactured according to various specifications. These leaf chains are commonly used in lift trucks and forklifts. Their design allows them to handle heavy loads without bending or breaking.
Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price
Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price
Chain Size
Lacing
Pitch (P)
Tensile Strength
Weight (Per Ft)
Pin Diameter (D)
Pin Length (L)
Plate Height
Plate Thickness (T)
BL422
2X2
0.500"
6,200 lbs
0.46 lbs
0.200"
0.427"
0.472"
0.080"
BL423
2X3
0.500"
6,200 lbs
0.56 lbs
0.200"
0.510"
0.472"
0.080"
BL434
3X4
0.500"
9,300 lbs
0.76 lbs
0.200"
0.677"
0.472"
0.080"
BL444
4X4
0.500"
12,580 lbs
0.86 lbs
0.200"
0.764"
0.472"
0.080"
BL446
4X6
0.500"
11,000 lbs
1.11 lbs
0.200"
0.929"
0.472"
0.080"
BL466
6X6
0.500"
18,360 lbs
1.32 lbs
0.200"
1.094"
0.472"
0.080"
BL488
8X8
0.500"
24,500 lbs
1.61 lbs
0.200"
1.402"
0.472"
0.080"
BL522
2X2
0.625"
9,600 lbs
0.64 lbs
0.234"
0.498"
0.591"
0.094"
BL523
2X3
0.625"
9,600 lbs
0.79 lbs
0.234"
0.594"
0.591"
0.094"
BL534
3X4
0.625"
14,700 lbs
1.14 lbs
0.234"
0.791"
0.591"
0.094"
BL544
4X4
0.625"
18,050 lbs
1.27 lbs
0.234"
0.888"
0.591"
0.094"
BL546
4X6
0.625"
18,050 lbs
1.61 lbs
0.234"
1.083"
0.591"
0.094"
BL566
6X6
0.625"
28,000 lbs
1.88 lbs
0.234"
1.278"
0.591"
0.094"
BL588
8X8
0.625"
38,100 lbs
2.49 lbs
0.234"
1.665"
0.591"
0.094"
BL622
2X2
0.750"
14,100 lbs
1.13 lbs
0.312"
0.645"
0.713"
0.125"
BL623
2X3
0.750"
14,100 lbs
1.37 lbs
0.312"
0.778"
0.713"
0.125"
BL634
3X4
0.750"
23,000 lbs
1.90 lbs
0.312"
1.041"
0.713"
0.125"
BL644
4X4
0.750"
27,000 lbs
2.14 lbs
0.312"
1.173"
0.713"
0.125"
BL646
4X6
0.750"
27,000 lbs
2.69 lbs
0.312"
1.437"
0.713"
0.125"
BL666
6X6
0.750"
42,000 lbs
3.18 lbs
0.312"
1.701"
0.713"
0.125"
BL688
8X8
0.750"
53,682 lbs
4.02 lbs
0.312"
2.248"
0.713"
0.125"
BL822
2X2
1.000"
24,300 lbs
1.74 lbs
0.375"
0.794"
0.949"
0.156"
BL823
2X3
1.000"
24,300 lbs
2.15 lbs
0.375"
0.953"
0.949"
0.156"
BL834
3X4
1.000"
38,000 lbs
2.98 lbs
0.375"
1.281"
0.949"
0.156"
BL844
4X4
1.000"
48,000 lbs
3.39 lbs
0.375"
1.453"
0.949"
0.156"
BL846
4X6
1.000"
48,000 lbs
4.25 lbs
0.375"
1.772"
0.949"
0.156"
BL866
6X6
1.000"
72,000 lbs
5.07 lbs
0.375"
2.098"
0.949"
0.156"
BL888
8X8
1.000"
92,000 lbs
6.62 lbs
0.375"
2.764"
0.949"
0.156"
BL1022
2X2
1.250"
33,000 lbs
2.53 lbs
0.437"
0.994"
1.185"
0.187"
BL1023
2X3
1.250"
33,000 lbs
3.15 lbs
0.437"
1.138"
1.185"
0.187"
BL1034
3X4
1.250"
52,000 lbs
4.40 lbs
0.437"
1.530"
1.185"
0.187"
BL1044
4X4
1.250"
65,000 lbs
5.03 lbs
0.437"
1.708"
1.185"
0.187"
BL1046
4X6
1.250"
65,000 lbs
6.24 lbs
0.437"
2.114"
1.185"
0.187"
BL1066
6X6
1.250"
96,000 lbs
7.50 lbs
0.437"
2.514"
1.185"
0.187"
Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price
Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
Professional Bl Series Stainless Steel Leaf Chain High Strength Heat Resistant for Restaurant Use Low Price
