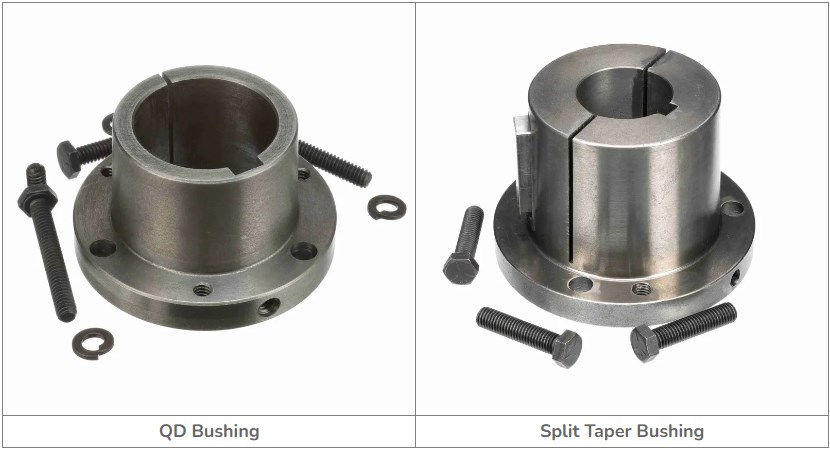

The difference between QD sleeve and open cone sleeve:
QD (Quick Disconnect) bushings and open cone bushings are mechanical components used to install pulleys, sprockets, and other rotating equipment on shafts, but there are some key differences between them.
1. Design: The main difference between QD bushings and open tapered bushings is their design. The QD bushing has a flange connected to the equipment hub with screws or bolts, as well as a bushing installed on the shaft. Then secure the bushing to the shaft using bolts or set screws. On the other hand, the open tapered bushing has a conical sleeve that can be installed on the column and fixed with screws or bolts. Then connect the equipment hub to the bushing with screws or bolts.
2. Installation: QD bushings are usually easier to install and remove than open tapered bushings. The QD bushing can be installed by simply sliding it onto the shaft and tightening the bolts or set screws. It can also be easily removed by loosening the bolts or fixing screws and sliding the bushing off the shaft. Due to the fact that the conical sleeve must be compressed onto the pillar and then fixed with screws or bolts, installing the split conical sleeve requires more effort. They may also be more difficult to remove, mainly if they have been present for a long time.
3. Load capacity: QD bushings are usually more suitable for heavy-duty applications as they can handle higher loads than open tapered bushings. This is due to their sturdy design and the fact that they are directly bolted to the equipment hub, providing a safer and more stable connection between the bushing and the equipment.
4. Usability: Compared to QD bushings, the split conical bushing has higher usability and versatility. This is partly due to their ease of installation and disassembly, which makes them more convenient in many industrial applications.
Overall, QD and open tapered bushings have both advantages and disadvantages depending on the specific application. It is crucial to choose the correct casing type based on load capacity, installation convenience, and other specific application factors.
