Plum blossom type elastic shaft coupling is made up of semi-shatf coupling with the same protruding claw and elastic component.utilizing the plum blossom elastic component put between the protruding claw and two half shaft coupling. in order to realize the connection of two semiaxis devices. It has compensating by two axle to be relative skew, reducing shaking buffering. smaller diameter simple structure. without lubricating. bearing large capacity, and convenient repair But the semi-shaft coupling needs to move along the axial while changing the elastic component. It Is suitable for two with axis, start frequent, positive and negative change, low-speed and medium speed. medium and small powerrotate axle department, requiring working dependability high working position; it is not suitable for the heavily loaded and restricted axial in size. Two axis put in the difficult position after exchange of elastic component.

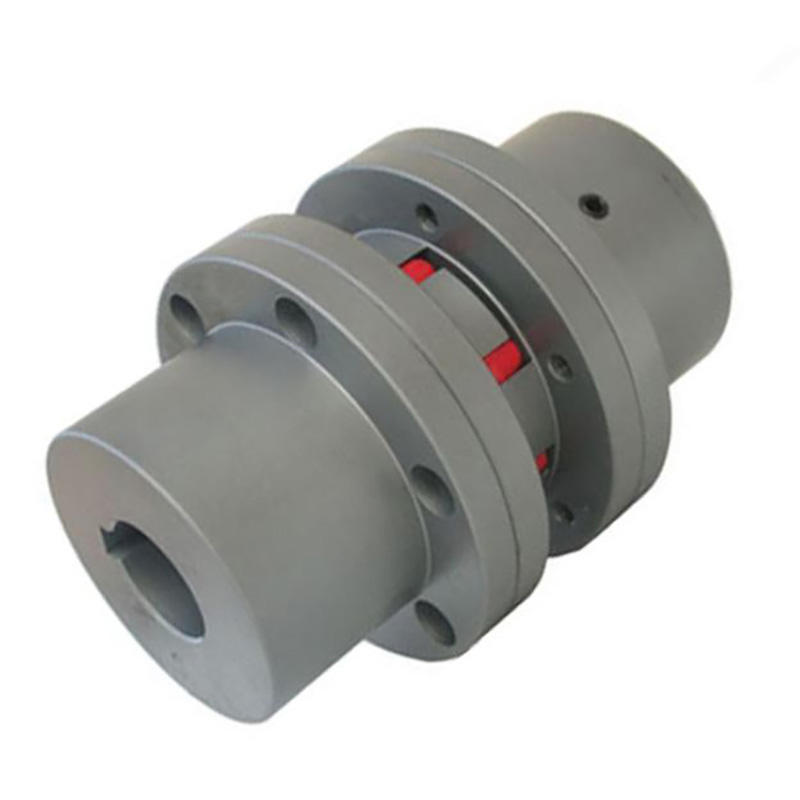

Double Flange Plum Blossom Flexible Coupling. The plum blossom-shaped flexible coupling has the following features: Its simple structure, small radial dimensions, light weight, and low moment of inertia make it suitable for medium- and high-speed applications. It operates stably and reliably, with excellent vibration damping, cushioning, and electrical insulation properties. It offers significant axial, radial, and angular compensation capabilities. Its high-strength polyurethane elastic element is wear-resistant and oil-resistant, offering a high load capacity, long service life, and safety. The coupling requires no lubrication, requiring minimal maintenance, and can operate continuously for extended periods.

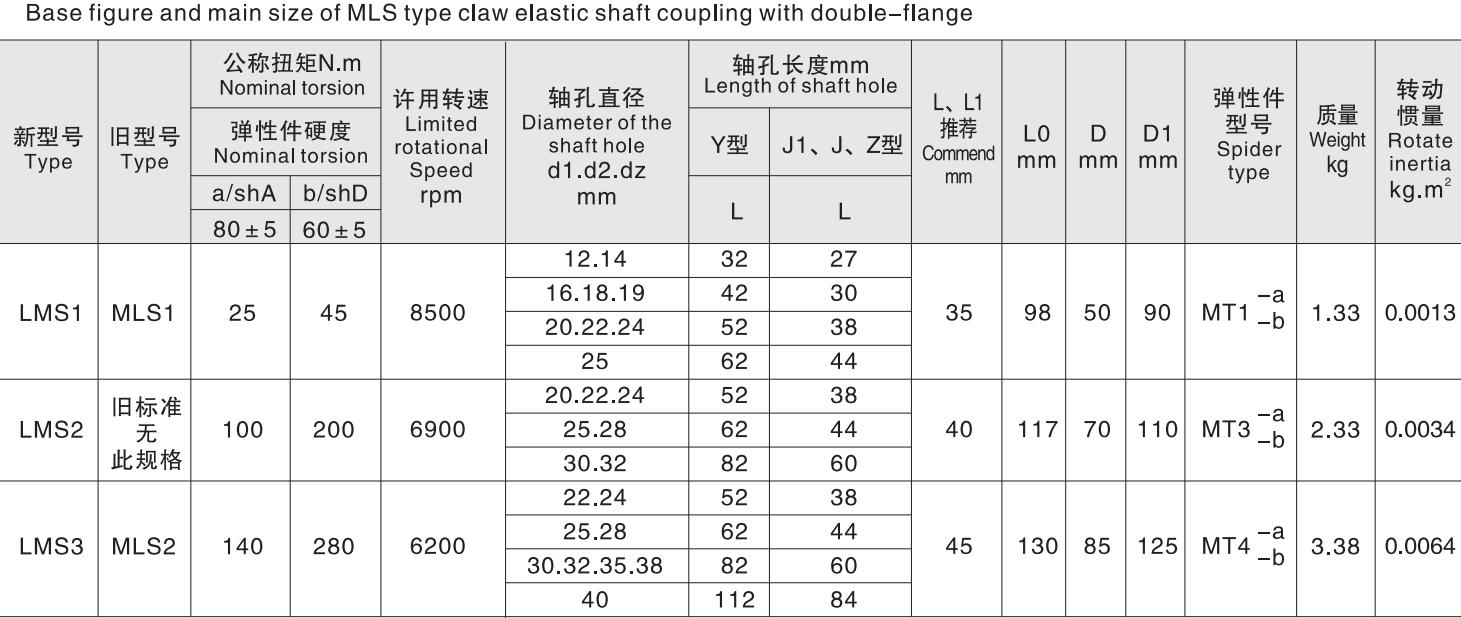

MLS3 type claw flexible couplings
The hardness of MT3a spider is shA80

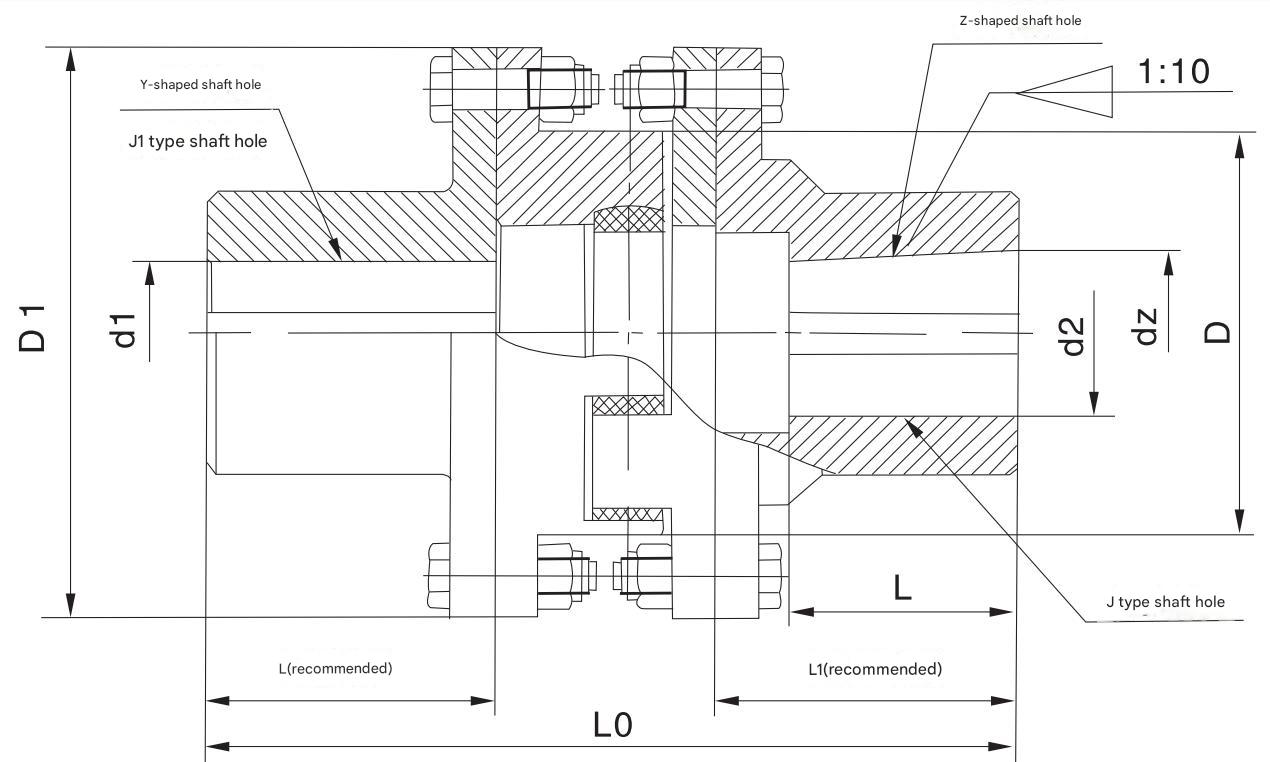

Drive end Z type shaft hole. C type key way diameter of shaft hole dz is 30mm
Length of shaft hole Lis 60mm(counterbore is not included)
Briven end Y type shaft hole. B type key way, shaft hole diameter d2 is 25mm
Length of shaft hole Lis 62mm
Marked as: MLS3
Zc30 x 60 B25 x 62
Mt3a GB/T5272-2002
