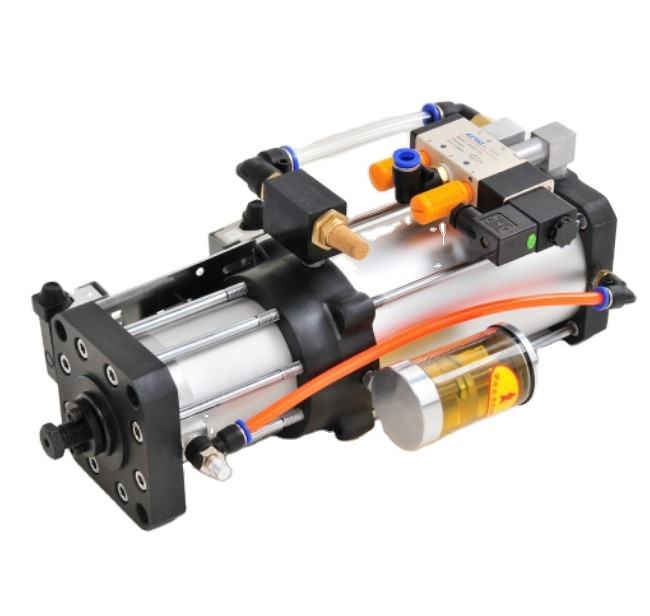

Professional Manufacture Cheap Spindle Unit Pneumatic Unclamp Cylinder

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .mag......Keywords:Professional Manufacture Cheap Spindle Unit Pneumatic Unclamp Cylinder - Buy Pneumatic Unclamp Cylinder,Spindle Unit,Unclamp Cylinder Product on CMN Industry Inc

Send Inquiry

Product Description

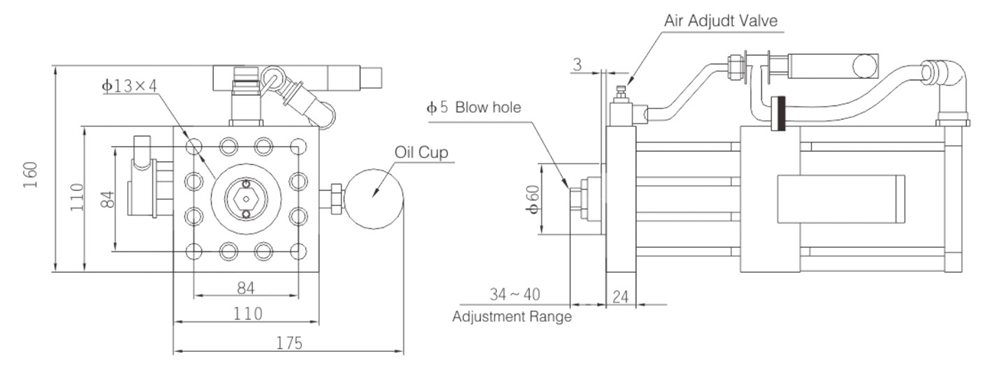

NOTE: 1.The pneumatic unclamp cylinder can be installed vertical and horizontal , the oil cup must be upward 2.The input gas source must be treated by the gas source triplet .For dry and clean air, the minimum pressure is 6kgf / cm² 3.The minimum safe oil content in the oil cup is 1/5, and the highest oil content is 4/5

Pneumatic Unclamp Cylinder Pneumatic Unclamp Cylinders are used in many different industrial applications. Generally, they are made of stainless steel or aluminium. They also use polyurethane or acrylonitrile butadiene rubber as piston seals. They are available in various sizes, shapes, and designs, and can be mounted on a variety of surfaces. Other uses for pneumatic cylinders include conveyor stops and work holding clamps. This tool is very useful for clamping and unclamping pieces on a cutting machine. However, it is important to choose the right cylinder for the job at hand. If the clamping action is too fast, the pieces may get trapped and may break. To avoid this, it is recommended that the cylinder is adjusted to slow the clamping action. A Pneumatic Unclamp Cylinder can be either single-acting or double-acting. Single-acting models have one air valve, which pushes the piston in one direction and forces the piston back to its original position when air pressure is removed. A double-acting model, on the other hand, has multiple air valves. The air in the cap-end port pushes the piston forward while forcing air out of the rod-end port. The cylinder's alignment can be checked by moving the load between the stroke extremities. A blow gun can be used at the appropriate ports to actuate the movement. If the load moves smoothly, then the alignment is satisfactory. However, this method does not account for deflections caused by reactive forces. It is therefore advisable to repeat this procedure after adjusting the cylinder's alignment to ensure it is right. The piston rod is a key part of the pneumatic cylinder. It has the necessary diameter and length to withstand a wide range of load conditions. The piston rod is made of hard chromed high carbon steel and has adjustable pneumatic damping. If you need to adjust the piston rod to a specific position, then you can add a position sensor to the cylinder. There are several different types of pneumatic cylinders available in the market today. Whether you need a standard or a custom-made cylinder, you can find the right one for your application. ISO 15552 pneumatic cylinders are commonly used in general automation systems, machine and system construction, and the food and beverage industry. Pneumatic cylinders are designed to move objects with a single or multiple cables. Smaller air cylinders can pick up small electronic components, while larger air cylinders can lift vehicles. Pneumatic cylinders can also be used in some special circumstances instead of hydraulic cylinders.

For more details, please click here to contact us!

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
