Professional Manufacturer Trailing Mower Gearbox Speed Reducer Pull-behind Mower Gear Drive Gearbox Replacement of Comer T-279D

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:267.7930622009569px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:267.7930622009569px}#detail_decorate......Keywords:Professional Manufacturer Trailing Mower Gearbox Speed Reducer Pull-behind Mower Gear Drive Gearbox Replacement Of Comer T-279d - Buy Trailing Mower Gearbox Pull-behind Mower Gear Drive Gearbox Replacement Of Comer T-279d Product on CMN Industry Inc

Send Inquiry

Product Description

Definition: A trailing mower gearbox is a mechanical device used in agricultural machinery, specifically in trailing mowers or rotary mowers. It is responsible for transmitting power from the tractor or vehicle to the cutting blades or rotary shaft, enabling the efficient cutting and maintenance of grass and vegetation. Functional Features: 1. Power Transmission: The primary function of a trailing mower gearbox is to transfer power from the tractor's power take-off (PTO) shaft to the cutting blades or rotary shaft of the mower. It ensures the consistent and reliable delivery of power for effective mowing operations. 2. Speed Control: The gearbox allows for speed control, enabling operators to adjust the rotational speed of the cutting blades or rotary shaft based on the desired grass height and cutting conditions. 3. Torque Conversion: The gearbox converts the high-speed, low-torque input from the tractor's PTO into lower-speed, higher-torque output suitable for cutting through thick grass and vegetation. 4. Directional Change: In some models, the gearbox facilitates the change in rotational direction, allowing the mower to operate in both forward and reverse modes for versatile mowing applications.

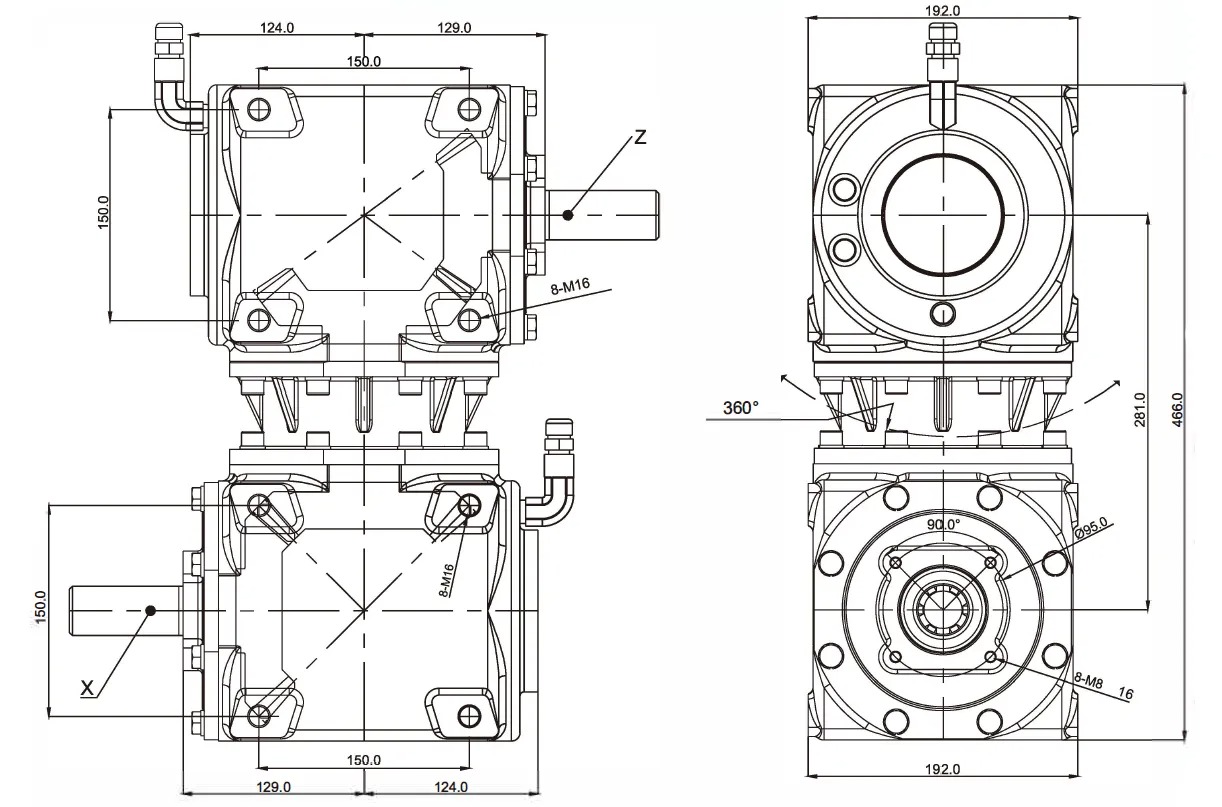

Dimension

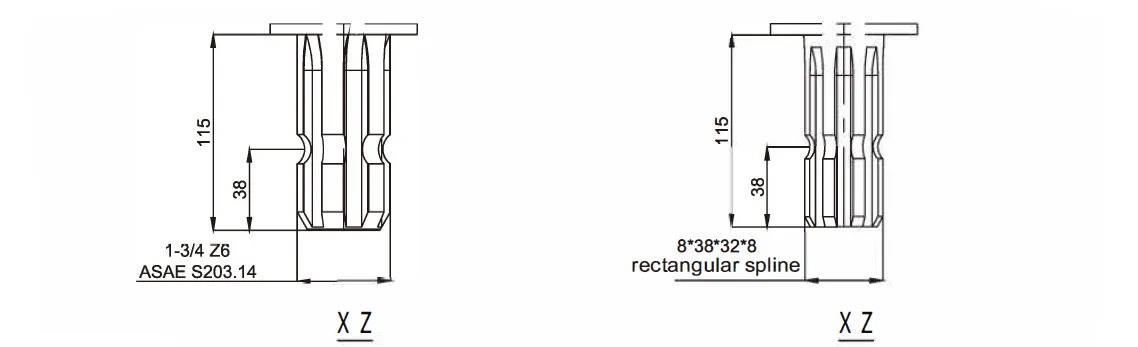

Shaft Dimension

Suitable

Rpm input

Rpm output

KW(Nom)

Output torque

Toothing

r/min

N.m

Speed increase

1: 1

Lawn mower, etc

540

1400

Gleason Helical
Teeth

Remark: If you have any special require feel free let me know, we also accept custom.

For more details, please click here to contact us!

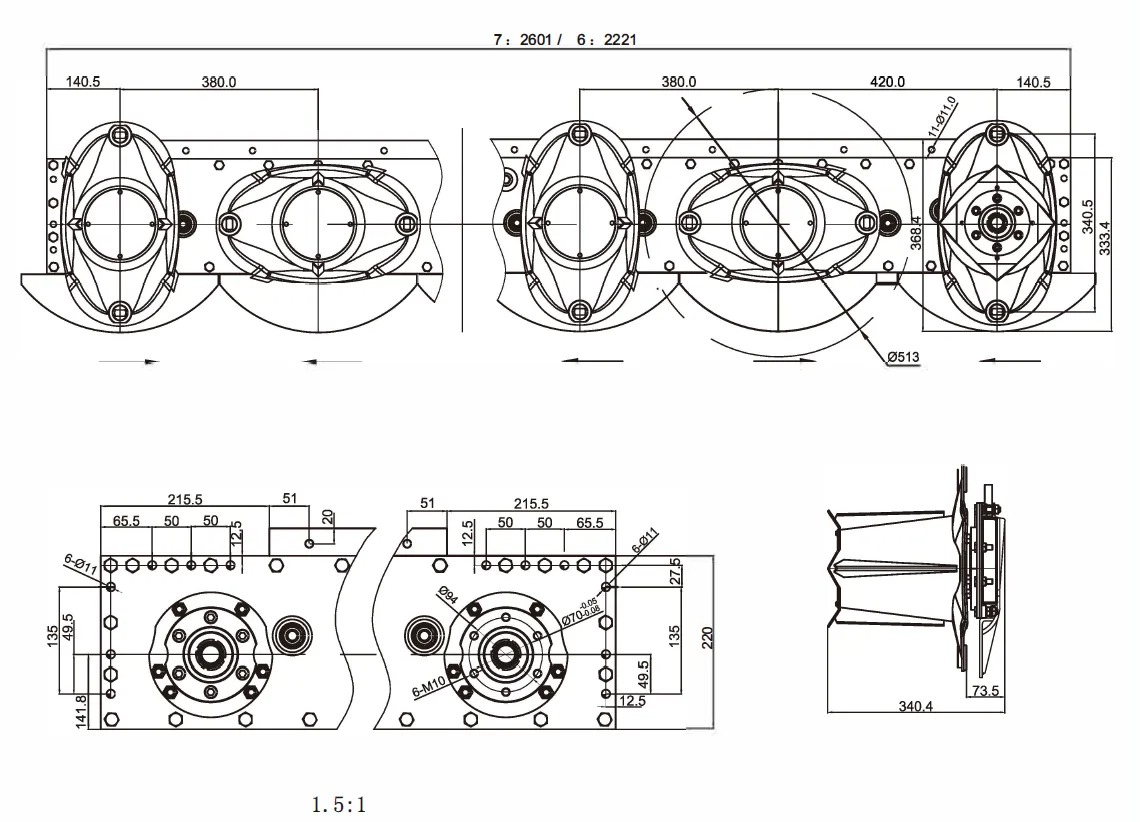

Pull-behind Mower Cutter Bar (Trailing Mower Cutter Bar) EP-GT Dimensions

Model number	EP-GT06	EP-GT07
MOP (kw/hp)	52/70	66/90
Work breadth (m)	2.5	3.0
cutter number (n)	6	7
Number of blades (n)	12	14
Rpm input (r/min)	3000
Rpm output (r/min)	3000
Remark: If you have any special require feel free let me know, we also accept custom.

Working Principle: The trailing mower gearbox is typically driven by the tractor's PTO shaft. The PTO transfers rotational power from the tractor's engine to the gearbox input shaft. Inside the gearbox, a combination of gears, such as spur gears or helical gears, transmit the power and torque to the output shaft connected to the cutting blades or rotary shaft. The gears are designed to achieve the desired rotational speed and torque required for efficient grass cutting.

We also provide PTO shafts.

How the PTO shaft and trailing mower gearbox work together The PTO shaft and trailing mower gearbox work together in a coordinated manner to facilitate the efficient operation of a trailing mower. Here's how they interact: 1. Power Transfer: The PTO shaft, driven by the tractor's engine, delivers rotational power to the trailing mower gearbox. It connects to the input shaft of the gearbox, transmitting the engine's power to the gearbox assembly. 2. Speed and Torque Conversion: The PTO shaft typically rotates at a high speed with low torque, while the trailing mower requires lower rotational speed but higher torque to effectively cut through grass and vegetation. The gearbox contains a set of gears that convert the high-speed, low-torque input from the PTO shaft into the lower-speed, higher-torque output required for the cutting blades or rotary shaft of the mower. 3. Directional Change: In some cases, the gearbox may also facilitate the change in rotational direction. This allows the trailing mower to operate in both forward and reverse modes, enabling operators to mow in different directions and maneuver the mower efficiently. 4. Cutting Operation: The output shaft of the gearbox is connected to the cutting blades or rotary shaft of the trailing mower. As the gearbox transfers power and converts speed and torque, it drives the cutting mechanism. The rotational motion generated by the gearbox powers the cutting blades or rotary shaft, enabling them to cut through grass and vegetation effectively. By combining the power transmission capabilities of the PTO shaft and the speed and torque conversion capabilities of the trailing mower gearbox, the two components work together to ensure that the trailing mower receives the appropriate power and rotational characteristics for efficient grass cutting operations. This collaboration allows the tractor's engine power to be effectively utilized and optimizes the performance of the trailing mower in various cutting applications.

Applications: Trailing mower gearboxes are primarily used in agricultural machinery, specifically in trailing mowers or rotary mowers. These mowers are commonly used for cutting grass, weeds, and vegetation in various applications, including lawns, fields, parks, and road maintenance. Trailing mower gearboxes enable the effective transmission of power from the tractor to the cutting blades or rotary shaft, ensuring precise and efficient grass cutting operations. In summary, a trailing mower gearbox is a vital component in agricultural machinery used for grass cutting. It provides power transmission, speed control, torque conversion, and directional change capabilities. By effectively transferring power from the tractor's PTO shaft to the cutting blades or rotary shaft, the gearbox enables efficient and precise grass cutting operations in a variety of applications.

Other agricultural gearbox

HZPT MACHINERY (HANGZHOU) CO.LTD is a professional reducer high-tech enterprise integrating scientific research, production and sales, a high-tech small and medium-sized enterprise in Zhejiang Province, a member of Hangzhou R&D center, and a specialized and special new small and medium-sized enterprise in Zhejiang Province. We have a professional R&D team and technical staff specializing in the production of various gearboxes, gearbox assemblies, and components. The products include various series of helical gear reducers, agricultural machinery gearboxes, industrial gearboxes, etc. A number of technical patents and products are pioneering in China. We strictly follows the quality management system to manufacture high-quality products, which are highly appreciated by domestic and foreign customers. In recent years, We has been adhering to the concept and spirit of "innovating with determination, advancing with the times, and creating the future intelligently", and is committed to high-end gearbox, gearbox development and manufacturing. Founded in 2017, We have rich production experience, perfect organizational structure, and complete R&D and design capabilities. It also provides technical support and design and development cases for customers in various industries and has been widely praised by customers.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
