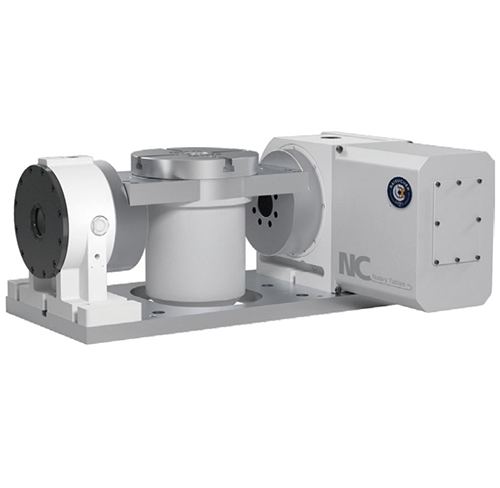

RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components

RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components

Products DescriptionHigh precision, high performance, high efficiencyFive axis machining, modular design Optional fixture oil circuit, Optional hydraulic brake Product ModelRTS-200Servo motor (optional)Rotation axis β2iFANUC ;Tilt axis β8iFANUCPanel Size200mmReduction RatioRotation axis 1:121 ;Tilt ......Keywords:Rts-200 Cnc Machining Center Parts New Turntable Rotary Table For Cnc Machinery With Gear And Bearing Core Components - Buy New Condition Cnc Machinery Cnc Machining Center Parts Gear Cnc Machining Center Parts Bearing Rotary Table Accessories Rts-200 Product on CMN Industry Inc

Send Inquiry

Product Description

RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components
Products Description
High precision, high performance, high efficiency
Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

Product Model
RTS-200
Servo motor (optional)
Rotation axis β2iFANUC ;Tilt axis β8iFANUC
Panel Size
200mm
Reduction Ratio
Rotation axis 1:121 ;Tilt axis 1:90
Disk Aperture
40mm
Maximum Rotation Speed Of Worktable
33.3 r.p.m
T-groove Of Disk Surface
12H8mm
Minimum Setting Angle
0.001°deg
Tilt Angle
±110°deg
Segmentation Accuracy
Rotation axis 20″sec;Tilt axis 15″sec
Rotation Angle
360°deg
Repeat Positioning Accuracy
Rotation axis 4″sec;Tilt axis 4''sec
0 ° Time Disk Height
255mm
Locking torque of rotating shaft
Rotation axis 412N.m;Tilt axis 450N.m
90° Time Center Height
135mm
Brake Pressure
Rotation axis pressure machine;Tilt axis oil pressure 15Kg/cm²
Net Weight (about)
180Kg
Allowable Cutting Force
Rotation axis 18Kgf-m;Tilt axis 30Kgf-m
Horizontal placement
80KG
Ninety ° Time
50KG
RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components
RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components
Related Products

Company Information
RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad. Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components
Product packaging
RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components
FAQ
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
