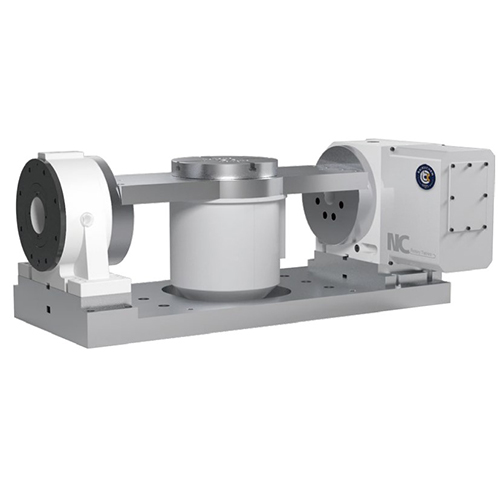

RTS-255 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery

RTS-255 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery

Products DescriptionHigh precision, high performance, high efficiencyFive axis machining, modular design Optional fixture oil circuit, Optional hydraulic brakeProduct ModelRTS-255Servo motor (optional)Rotation axis β8iFANUC;Tilt axis β8iFANUCPanel Size255mmReduction RatioRotation axis 1:121 ;Tilt ax......Keywords:Rts-255 5 Axis Machine Cnc Machining Center Parts Cnc Turntable Rotary Table For Cnc Machinery - Buy Rotary Table vacuum Table For Cnc rts-255 Machine Cnc Machining Center Parts Cnc Turntable Rotary Table For Cnc Machinery Product on CMN Industry Inc

Send Inquiry

Product Description

RTS-255 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
Products Description
High precision, high performance, high efficiency
Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake
Product Model
RTS-255
Servo motor (optional)
Rotation axis β8iFANUC;Tilt axis β8iFANUC
Panel Size
255mm
Reduction Ratio
Rotation axis 1:121 ;Tilt axis 1:121
Disk Aperture
50mm
Maximum Rotation Speed Of Worktable
33 r.p.m
T-groove Of Disk Surface
12H8mm
Minimum Setting Angle
0.001°deg
Tilt Angle
±120°deg
Segmentation Accuracy
Rotation axis 20″sec;Tilt axis 20″sec
Rotation Angle
360°deg
Repeat Positioning Accuracy
Rotation axis 4″sec;Tilt axis 4''sec
0 ° Time Disk Height
367.5mm
Locking torque of rotating shaft
Rotation axis 1980N.m;Tilt axis 1200N.m
90° Time Center Height
213mm
Brake Pressure
Rotation axis pressure motor+machine;Tilt axis oil pressure 35Kg/cm²
Net Weight (about)
270Kg
Allowable Cutting Force
Rotation axis 160Kgf-m;Tilt axis 120Kgf-m
Horizontal placement
150KG
Ninety ° Time
100KG

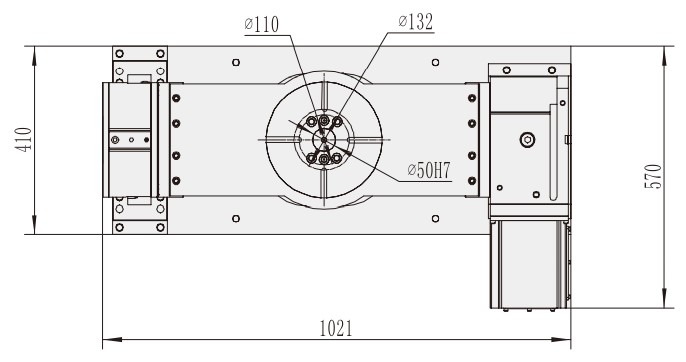

RTS-255 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery

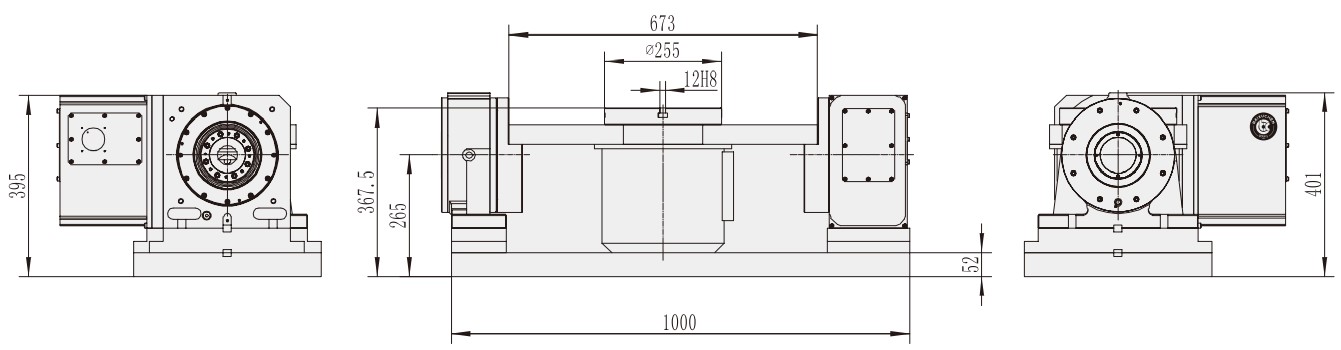

RTS-255 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
