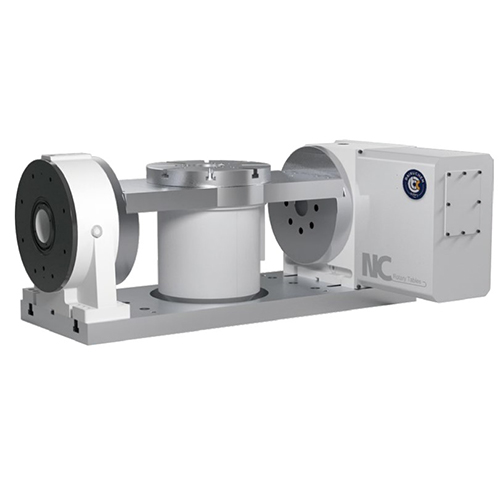

RTS-320 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery

Products DescriptionHigh precision, high performance, high efficiencyFive axis machining, modular design Optional fixture oil circuit, Optional hydraulic brakeProduct ModelRTS-320Servo motor (optional)β 8iFANUC;β 22iFANUCPanel Size320mmReduction Ratio1:121 ;1:120Disk Aperture80mmMaximum Rotation Spe......Keywords:Rts-320 5 Axis Machine Cnc Machining Center Parts Cnc Turntable Rotary Table For Cnc Machinery - Buy Cnc Turntable 5 Axis cnc Rotary Table rts-320 5 Axis Machine Cnc Machining Center Parts Cnc Turntable Rotary Table For Cnc Machinery Product on CMN Industry Inc

Send Inquiry

Product Description

Products Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

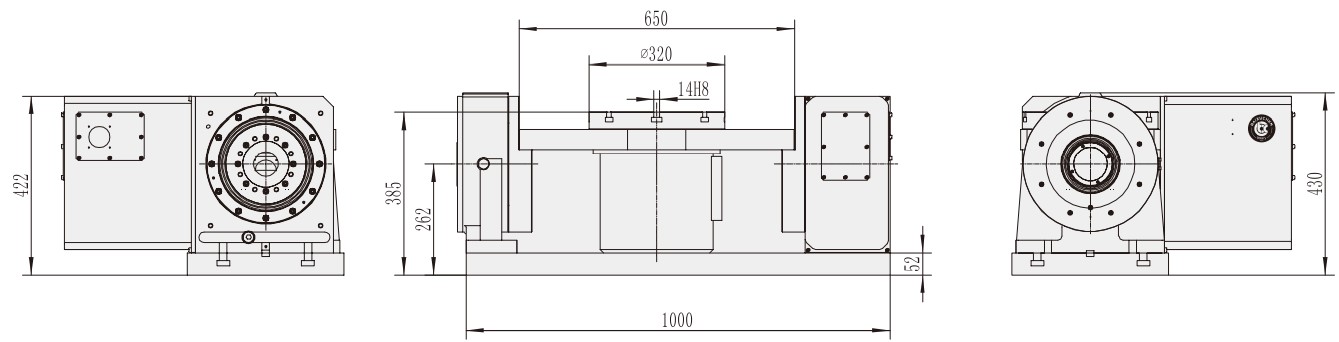

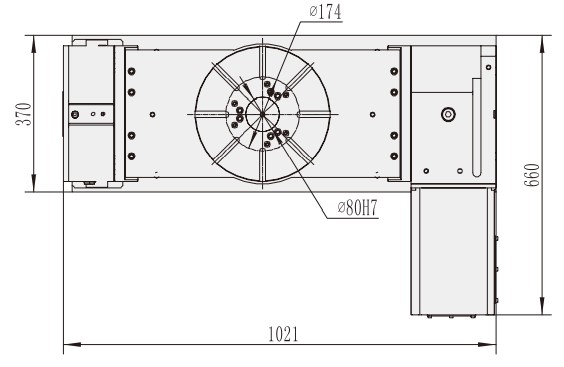

Product Model	RTS-320	Servo motor (optional)	β 8iFANUC;β 22iFANUC
Panel Size	320mm	Reduction Ratio	1:121 ;1:120
Disk Aperture	80mm	Maximum Rotation Speed Of Worktable	33r.p.m
T-groove Of Disk Surface	12H8mm	Minimum Setting Angle	0.001°deg
Tilt Angle	±120°deg	Segmentation Accuracy	20″sec;20″sec
Rotation Angle	360°deg	Repeat Positioning Accuracy	4″sec;4''sec
0 ° Time Disk Height	385mm	Locking torque of rotating shaft	1980N.m;1200N.m
90° Time Center Height	210mm	Brake Pressure	+;35Kg/cm²
Net Weight (about)	360Kg	Allowable Cutting Force	160Kgf-m;120Kgf-m
Horizontal placement	200KG	Ninety ° Time	150KG

Company Information

Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad. Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.

Product packaging

FAQ

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
