Product Description

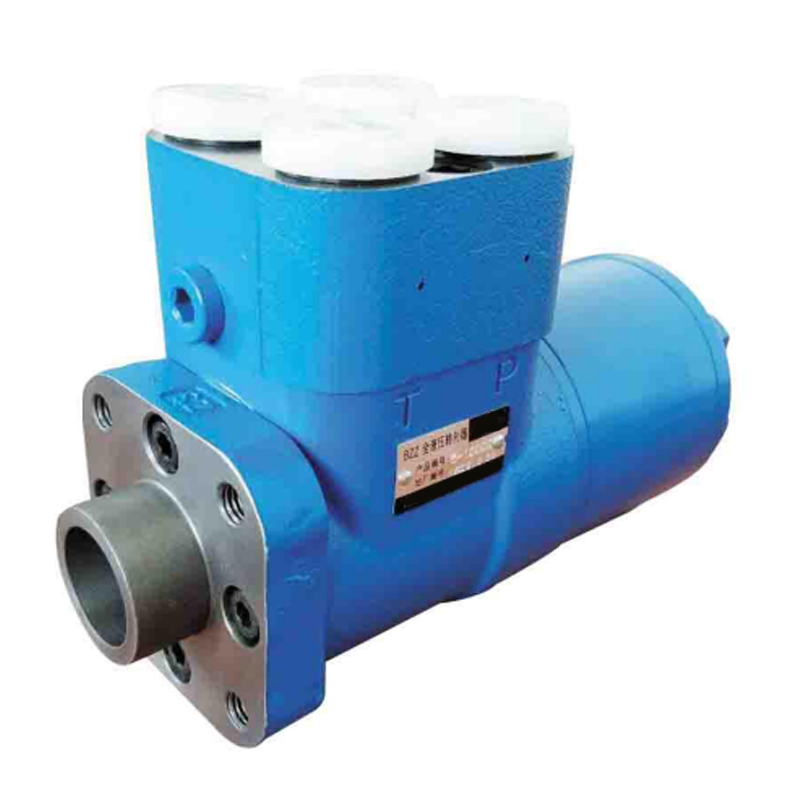

S45 Series Hydraulic Steering Control Unit

he S45 series hydraulic steering control unit is a flow amplification type hydraulic steering control unit.
When turning at low speed, the displacement is small and light; when turning quickly, it has a larger displacement.
Displacement is divided into: 630, 800, 1000, 1250 ml/r. Mainly used for large construction machinery.

---Optimized control rotary valve design, superior performance
---Low hydraulic noise
---Casting inner channel design, small pressure loss
---Three basic types: open core, closed core and load sensing

Main performance parameters

Maximum inlet pressure………………16MPa
Maximum continuous back pressure………………2.1MPa
input torque………………………………2.8-4.0Nm
Maximum system temperature………………93°C
Recommended Oil Cleanliness………ISO 18/13

Product Features					Displacement/No.
Type	Connection	Oil port	630	800	1000	1250
Static signal load sensing flow amplification	Short stop	4-M20X1.5 &M12X1.5 4-M10 2-M12	S40-5101	-5102	-5103	-5104
			Long stop		S40-5201	-5202	-5203	-5204
			Internal spline		S40-5301	-5302	-5303	-5304
Static signal load sensing flow amplification	Short stop	4-G1/2 &M12X1.5 4-M10 2-M12	S40-5111	-5112	-5113	-5114
			Long stop		S40-5211	-5212	-5213	-5214
			Internal spline		S40-5311	-5312	-5313	-5314
Dynamic Signal Load Sensing Flow Amplification	Short stop	4-3/4-16UNF 'O'-ring &7/16-20UNF 'O'-ring 4-M10 2-M12	S40-7131	-7132	-7133	-7134
			Long stop		S40-7231	-7232	-7233	-7234
			Internal spline		S40-7331	-7332	-7333	-7334

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
