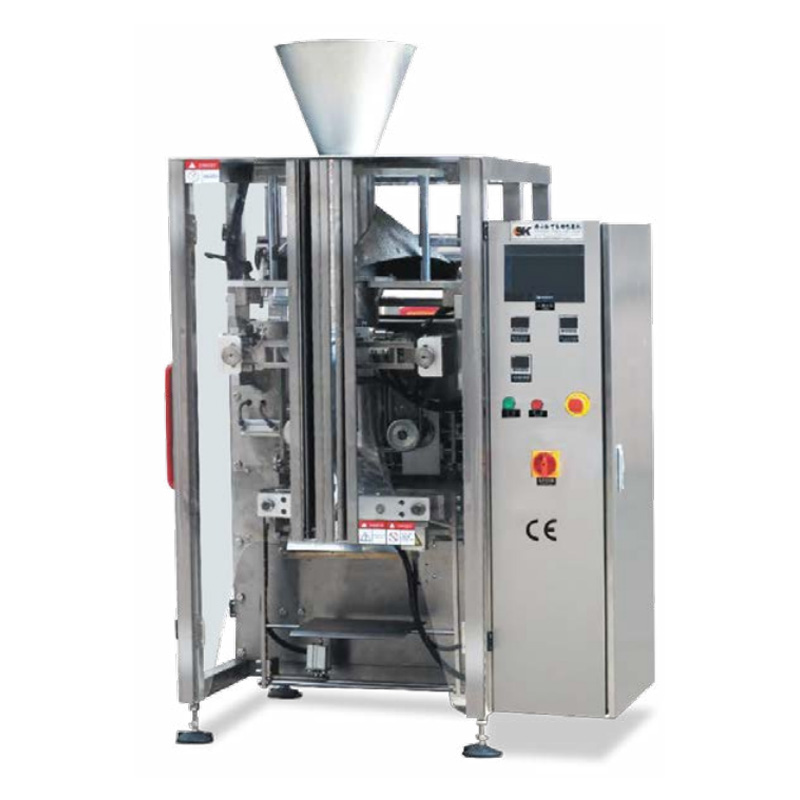

Semi-automatic Vertical Main Bagging Machine for Liquid Filling

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Semi-automatic Vertical Main Bagging Machine For Liquid Filling - Buy Semi-automatic Vertical Main Bagging Machine For Liquid Filling Product on CMN Industry Inc

Send Inquiry

Product Description

1.It adopts imported servo motor control and single/double pull film system to ensure smooth transmission of packaging film and smooth bag.
2.Imported cylinders ensure good bag sealing and clear sealing lines, prevent bag leakage and reduce scrap rate.
3.Adopt PLC control, imported drive, equipped with imported touch screen, man-machine interface, high degree of automation, simple operation procedure, high sensitivity of touch screen.
4.Multi-language operating system choices.
5.With an external film release mechanism, it is easier and faster to replace the packaging film.

VERTICAL MAIN BAGGING MACHINE

--Combination scale
--Semi-automatic feeding conveyor
--Volumetric cup metering device
--Screw auger filler device
--Liquid filling metering device

Model	SK-L620	SK-L720
Air consumption	0.65mpa,2.5m³/min
Max. Film width	Max.620mm	Max.720mm
Bag length	100-400mm	100-500mm
Bag width	150-300mm	180-350mm
Packing Film Roll Diameter	Max.360mm	Max.360mm
Packaging speed	5-55bags/min	5-55bags/min
Packing thickness	0.04-0.08mm	0.04-0.08mm
Power supply	220V,50Hz/60Hz,3kW	220V,50Hz/60Hz,3kW
Dimension	(L)1780(W)1300(H)1950mm	(L)1800(W)1310(H)2050mm
Total weight of machine	700kg	750kg

Hangzhou ever-power Packaging Machinery Co., Ltd. was established in 2008. The company focuses on fully automatic vertical packaging machinery and automated packaging lines, engaged in research and development, production, sales and after-sales service. The company has more than ten years of experience in the packaging industry, technological innovation, and talent advantages. With its pursuit of products, adherence to brand development strategy, and strict quality management, its products have obtained the European Community product safety CE certification. Professional team services, focusing on customer needs, have won the titles of "Best Service Provider" and "China Credit Enterprise Certification System Demonstration Unit" for many consecutive years. We have fully automatic vertical packaging machines, granule packaging machines, powder packaging machines, liquid packaging machines, and pillow packaging machines, which are widely used in food, chemicals, medicine, hardware, daily necessities, etc. to meet the needs of our customers. It has the advantages of stable performance, simple operation, easy to learn, easy to understand, and durability, etc., and has won the trust and praise of users. The company's products are sold all over the country and exported to South America, Europe, the Middle East, Southeast Asia and other countries.
