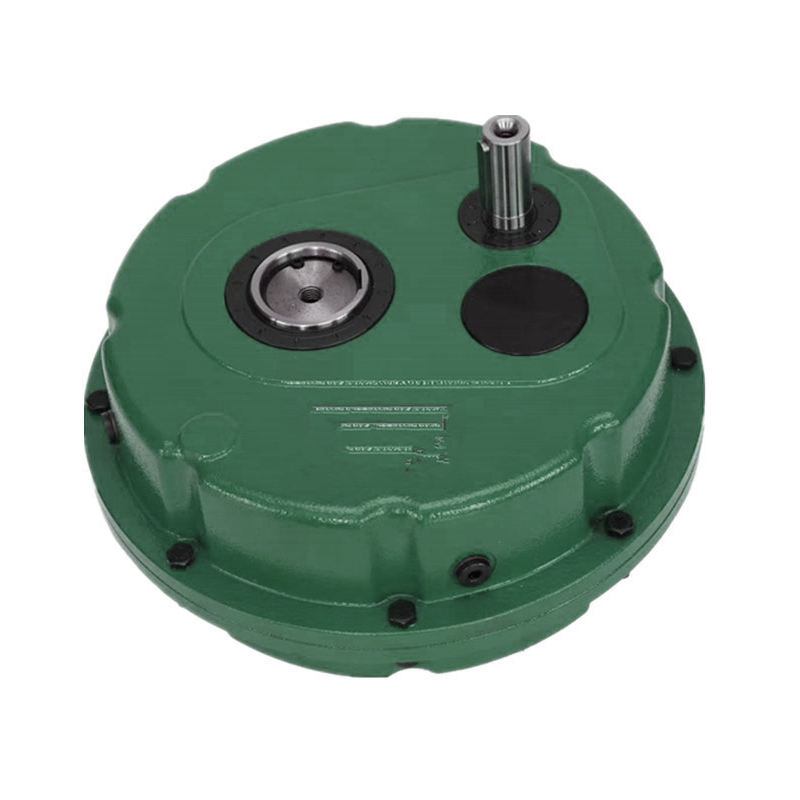

SLXG/HXG/TA Shaft Mounted Gearbox Gear Reducer with Electric Motor Right Reducer for Concrete Mixer Reducer Speed Reducer Motor

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:Slxg/hxg/ta Shaft Mounted Gearbox Gear Reducer With Electric Motor Right Reducer For Concrete Mixer Reducer Speed Reducer Motor - Buy Shaft Mounted Gearbox Small Size Hypoid Speed Reducer Mechanical Speed Variator Cordless Drill Gearbox,Hanging Gearbox Reducteur De Vitesse Pour Tondeuse Autoportan Mower Gearbox Drilling Machine Gearbox Gear Box 3 Kw,Shaft Drive Motor Gearbox Gearbox Motor Tan Tzu Vertical Horizontal Gearbox Automatic Gearbox Gear Box Motor Dc 12 V Bran Cndf Product on CMN Industry Inc

Send Inquiry

Product Description

* Key benefits
– Cost effective solution
– High Reliability
– Robustness
– Very Compact design
– Prevent the movement in the wrong way
– Highly customizable product
* Main options
– Fluor Elastomer Seals
– Backstop
– Torque range
– 150 … 16,000 Nm
* Gear ratios
– 5 … 33.2
* Transmissible Mechanical Power
– Up to 226 kW
* Motors
– Input with solid shaft
– Input with e-motor coupling:
> BN, BE, BX [IEC asynchronous]
> BSR [IEC reluctance]
> BS [IEC single phase]
* Motor options
– Thermistors and thermostat sensors
– Independent forced cooling
– Incremental, sin/cos absolute single/multi-turn encoders
– Tropicalization
– Anti-condensation heaters
* Torque Range
– TA 30 = 150 Nm
– TA 35 = 400 Nm
– TA 40 = 900 Nm
– TA 45 = 1360 Nm
– TA 50 = 2100 Nm
– TA 60 = 3500 Nm
– TA 70 = 4900 Nm
– TA 80 = 6600 Nm
– TA 100 = 10500 Nm
– TA 125 = 16000 Nm
