Product Description

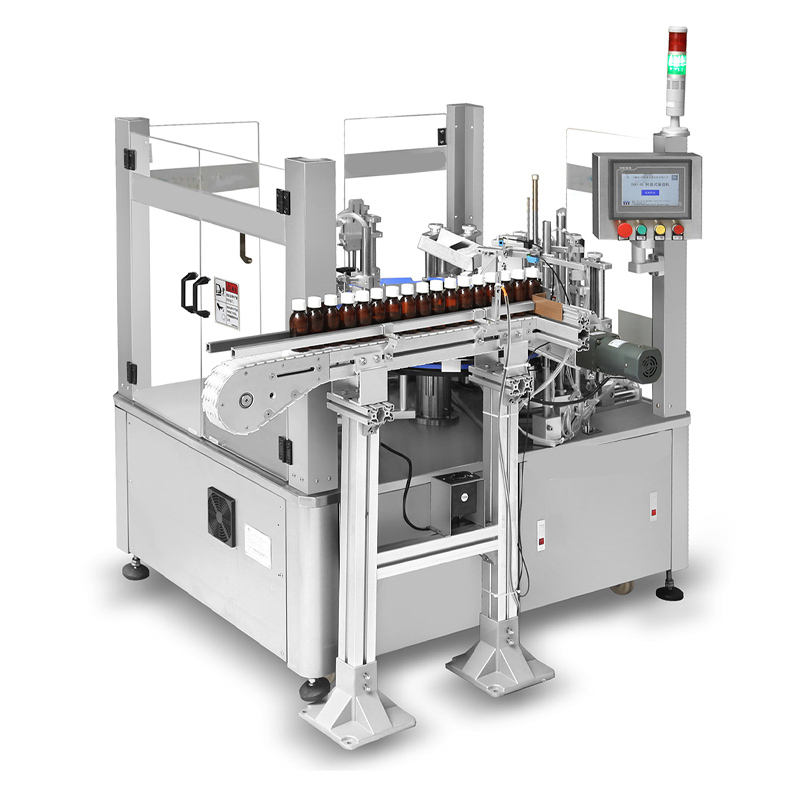

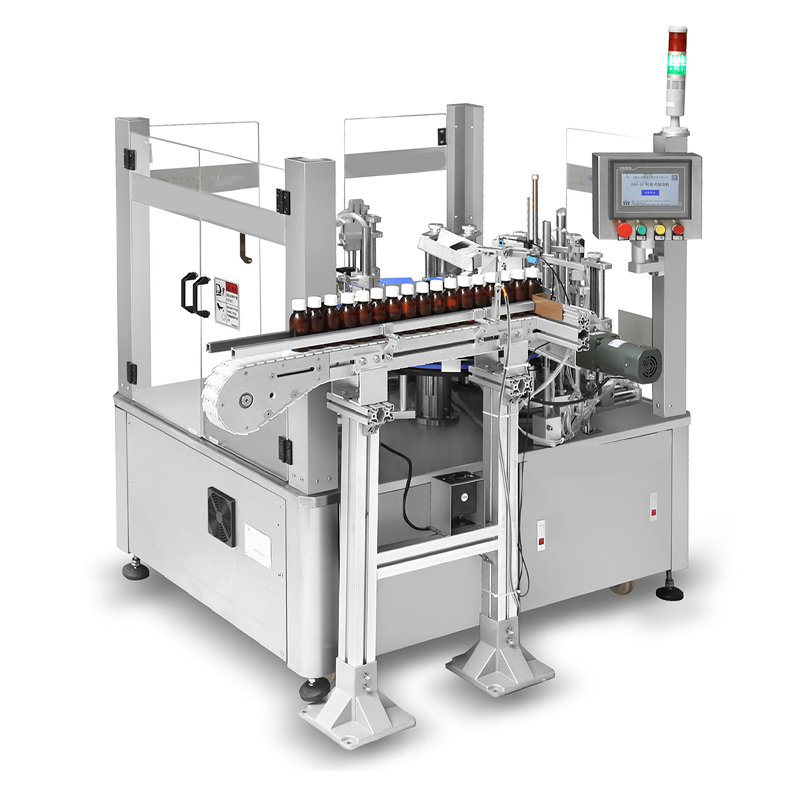

SN-120L Vertical Automatic Cartoning Machine

This machine is designed independently for manufacturers of packaging paper boxes with multiple sizes and small batch sizes. Low cost and small footprint. Suitable for boxes of various sizes. This machine is a multifunctional vertical automatic box packing machine with short time for changing specifications and molds. 304 stainless steel casing, advanced PLC control system combined with 5.7 color touch screen control panel, can easily set and change packaging parameters.

Packaging process 1. Suck the cardboard box onto the star wheel. 2. Fold the tongue under the cardboard box. 3. Fold off the cover. 4. Insert the lower tongue 5. The product is loaded into a cardboard box (which can be manually or designed with an automatic feeding robot). 6. Fold the tongue on the cardboard box. 7. Fold the lid. 8. Insert the upper tongue 9. Launch of molded products.

Model No.	SN-120L
Production speed:	20-50box per min
Paper box's largest size	200 x 80 x 80mm
Paper box's smallest size	60 x 20 x 20 mm
Paper quality of carton	250-350g/m3
Motor horsepower	1/4HP 15:1 1.5KW/H
Power supply	220V 50/60HZ single phase
Machine noise	≤80dB
Gas source	0.5-0.8 Mpa
Compress air consumption	260L/min
Machine measurement:	L 1100 x W 1500 x H 1700 mm
Machine weight	450Kg

Production Line	Multi-Lanes Granule Paking Machine	Small Packing Series	High Speed Powder Parking Machine
			Multi-Lanes Powder Paking Machine		High Speed Liquid Packing Machine
			Multi-Lanes Liquid Paking Machine		High Speed Granule Packing Machine
			Full Automatic Inner and Outer Bag Production Line		Granule/Powder/Liquid Packing Machine
			Full Automatic Multi-row Bagging Carton Parking And Carton Wrapping Film Machine		Full Auto Ulitrasonic Sealing&Packing Machine
		Full Automatic Granule/Powder/Liquid Two-In-One Cartoning Production Line	Give The Bag Series	8 Station Vacuum Premade Bags Weighing And Packing Machine
		Full Automatic Multi Column Bag Parking Orderly Soring,Boxing And Carton Parking Production Line	Give The Bag Series		Horizontal Premade Bag Powder Packing Machine
Shaped Series	lrregular Sachet Back Seal Packing Machine	Pillow Series	Horizontal Packing Machine(Upper/Down Film)
		lrregular Sachet Back-Side Sealing Machine	Tea Bag Serise	Filter Paper Tea Bag Packing Machine
		Full Punch Irregular Bag Granule/Powder /Liquid Seal Packing Machine			Triangular Mag With Inner And Outer Bag PackingMachine
Big Pillow Packing Series	Vacuum Bag Liquid Packing Machine			Drip Coffee Packing Machine
		Vacuum Bag Granule Packing Machine	Point Series	Point Packing Machine
		Big Model Powder Packing Machine	Canned Labeling Series	Automatic Cups Filling Sealing Machine
		Big Volume Bag Liquid Packing Machine	Give The Bag Series	8 Heads Filler Servo Control Filling Machine
		Combination weigher packing machine			Round Bottle Labeling Machine
Coupling Bag Series	Double Lane(Side by Side)Of Granule/Liquid Packing Machine			Multi-Head Following Capping Machine Vibrating Disc Capping Machine
Coupling Bag Series		Three Line bags Of Liquid Machines

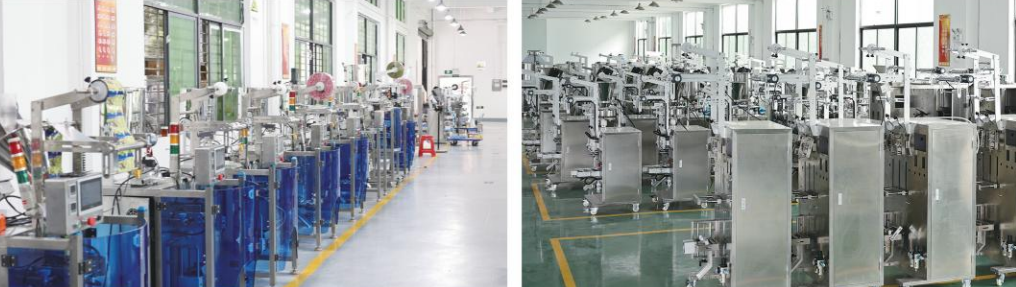

Ever power Packaging Equipment Co., Ltd. is a company that integrates research and development An enterprise that integrates manufacturing and sales. The company is located in Panyu, Guangzhou Building B35, Huachuang Industrial Park, Shiji Town, District. Covering an area of approximately 6000 square meters, deep With over 20 years of experience in the packaging equipment industry, we can directly design according to customer needs a modern enterprise specializing in the design and manufacturing of professional packaging equipment.

The company's independently developed multi column liquid, particle, and powder packaging machine. liquid Body and particle vacuum packaging machine, ultra high speed packaging machine, ultrasonic non-woven Packaging equipment such as cloth packaging machines are in a leading position.

Our company's packaging equipment is widely used in chemical, daily chemical, food, and medical industries Industries such as pharmaceuticals and health products. Currently, CE certification and TUV certification have been obtained SGS certification and over 20 national patents.

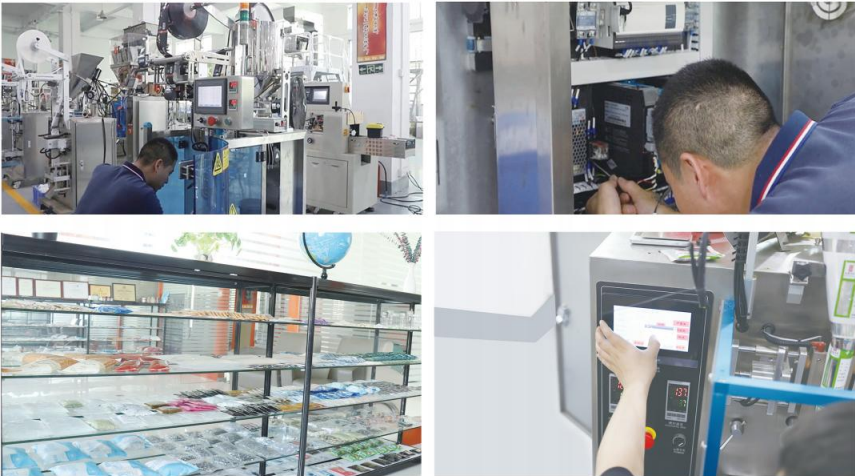

The company has multiple high-end CNC machines, which are regularly organized based on structural principles and equipment Training on planning schemes, market feedback, etc., to enhance the comprehensive skills of production technicians Strength enables each technician to accurately familiarize themselves with the machining process of each component The requirement for processing quality has led all employees to respect production and quality Respect the good situation of the product and comprehensively improve the comprehensive efficiency of production.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
