Product Description

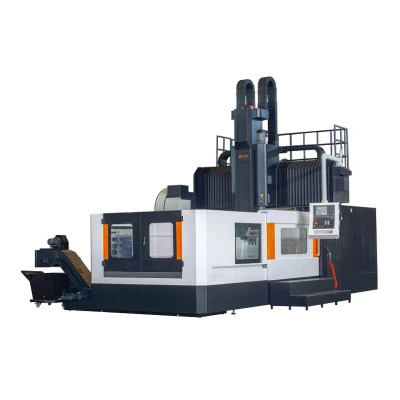

SP1325 Double Column Machining Center

This series of column beam fixed double column machining centers adopts the international dynamic stiffness design concept to optimize the design of moving components based on the high stiffness, structural symmetry, and high stability of traditional double column machining. This series of machine tools has the characteristics of high torque and fast feedback, which can meet the needs of mechanical processing fields such as automobiles, molds, aviation, and industry. This series of machine tools mainly consists of components such as base, workbench, column, crossbeam, saddle, hydraulic system, lubrication system, cooling and filtering system, chip cutting device, CNC system, etc.

The SP1325 Double Column Machining Center offers several advantages and distinctive features that make it a versatile and efficient machine for various machining operations.Here are its key highlights:1. Sturdy Double Column Design: The SP1325 features a robust double column structure, providing excellent stability and rigidity. This design ensures high precision and accuracy during heavy-duty machining tasks. 2. Large Working Area: With its generous working area, the SP1325 enables the machining of large workpieces and accommodates complex machining operations. It offers ample space for multiple setups and versatile workpiece handling. 3. High-Speed and High-Power Spindle: Equipped with a high-speed and high-power spindle, the SP1325 delivers exceptional cutting performance and efficiency. It allows for fast material removal rates, reducing machining time and increasing productivity. 4. Advanced Control System: The machining center is equipped with an advanced control system that offers user-friendly operation and intuitive programming. It provides precise control over machining processes, ensuring accurate positioning and smooth operation. 5. Efficient Tool Changer: The SP1325 incorporates an automatic tool changer, enabling quick and seamless tool changes during machining operations. This feature minimizes downtime and increases productivity. 6. Versatile Machining Capabilities: The SP1325 supports a wide range of machining operations, including milling, drilling, tapping, and more. It is compatible with various materials such as metals, plastics, and composites, making it suitable for diverse manufacturing applications. 7. Enhanced Precision and Surface Finish: The SP1325 utilizes advanced technologies and components to achieve exceptional precision and surface finish. It ensures tight tolerances, smooth contours, and high-quality finishes, meeting the demanding requirements of modern machining. 8. Reliable Performance and Durability: Built with high-quality materials and components, the SP1325 offers reliable performance and long-term durability. It is designed to withstand heavy-duty operations and provide consistent results over extended periods of use.

Model		SP1016	SP1020	SP1325	SP1330	SP1525
Travel and processing range
X-axis travel	mm	1650	2050	2600	3100	2600
Y-axis travel	mm	1200	1200	1400	1400	1400
Z-axis travel	mm	600	600	160-960	160-960	160-960
Distance from spindle nose to worktable	mm	160-760	160-760	2	1	2
Distance from ground to workbench surface	mm	765	765	775	775	775
Distance between two columns	mm	1250	1250	1400	1400	1650
Staging
Workbench area (X-axis direction)	mm	1600	2000	2500	3000	2500
Workbench area (Y-axis direction)	mm	1000	1000	1300	1300	1500
Maximum load of workbench	kg	3000	3500	4000	5000	4000
Size and number of T-shaped grooves on the surface of the workbench (width * number of slots * spacing)	mm	227125	227125	227160	227160	229160
Feed System
Rapid displacement (X-axis)	mm/min	20000	20000	10000	10000	10000
Rapid displacement (Y-axis)	mm/min	20000	20000	10000	10000	10000
Rapid displacement (Z-axis)	mm/min	12000	12000	10000	10000	10000
Main spindle
Main spindle power (continuous/30 minutes)	kw	15/18.5	15/18.5	15/18.5	15/18.5	15/18.5
Maximum speed (vertical shaft)	rpm	7000	7000	6000	6000	6000
Spindle hole thrust	Nm	71.5	71.5	143	143	143
Spindle taper hole	#	50	50	50	50	50
Spindle cutting force	kgf	1800±10%	1800±10%	1800±10%	1800±10%	1800±10%
Main spindle bearing size	mm	7016	7016	7018	7018	7018

Fully metal protective cover (include 2pcs screw chip conveyor,1pcs chain type chip conveyor,water tank,pump),24T arm-type tool magazine.

Equipped with oil chiller,cycle cooling
source for spindle unit and motor cabinet.

Hydraulic station,power source for balancing cylinder and spindle tool clamping and unclamping.

Lubrication station is controlled by
CNC system which can test and alarm
automatically.

Level test of cool liquid

Tool magazine has adjusting device

Spindle unit(Hydraulic tool clamping and unclamping)
