Swl Series Screw Lift

Product Description

- It has compact structure, small in volume, light weight,
- It is low in noise, convenient installation, flexible use, high reliability and long service life.
- It has many functions, such as lifting, falling and advancing with auxiliary parts, overturning, various height position
adjustment and so on.
- It has many different structure and assembly type options; and the lifting height can be customized according to the user's requirements.

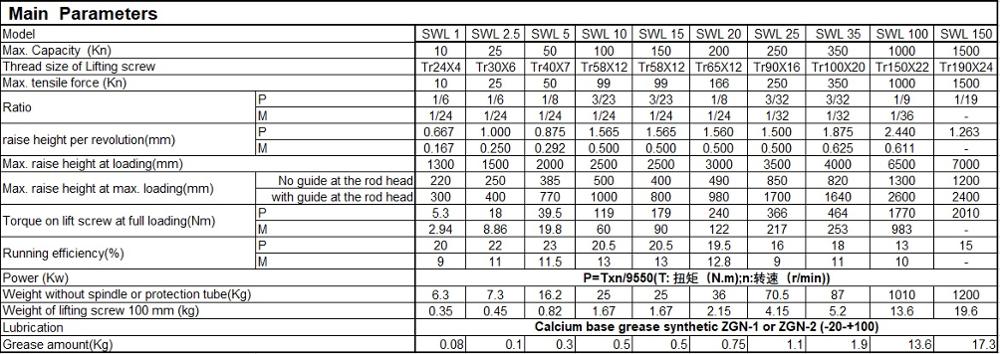

Model of This Design

Model	SWL1,SWL2.5,SWL5,SWL10,SWL15,SWL20,SWL25,SWL35,SWL100,SWL150
Loading capacity	2.5,5,10,15,20,25,35( X10KN)
Ratio	Ordinary (P)	Slow (M)
Structural type	Type 1 - the screw moves in both rotation and axial direction.	Type 2 - the screw rotates. The nut on the screw moves in an axial direction.
Assembly type	Type A - screw (or nut) moves upward	Type B - screw (or nut) moves down
Screw rod head type	There are 4 types for the Type 1 's rod head: - Type Ⅰ,head cylindrical - Type Ⅱ,head flange - Type Ⅲ,head thread - Type Ⅰv,head flat head	There are 2 types for the Type 2 's rod head: - Type Ⅰ,head cylindrical - Type Ⅲ,head thread
Protection of screw rod	3 types for the Type 1 's rod: - (basic type) - F (Anti-rotation type ) - Z (Type with protection shield)	2 types for the Type 2 's rod: - (basic type) - Z (Type with protection shield)

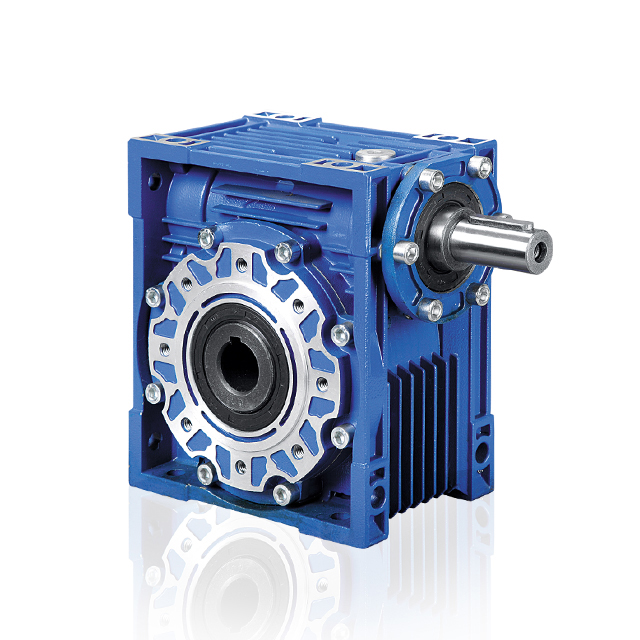

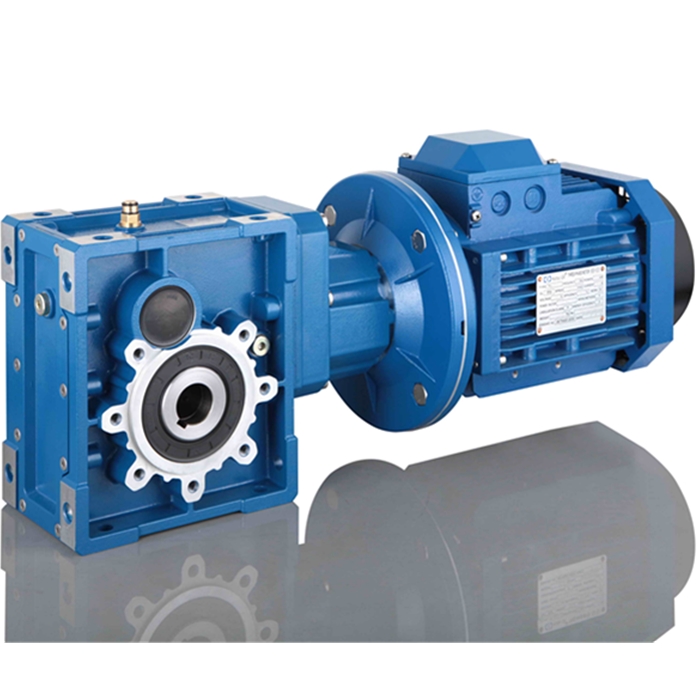

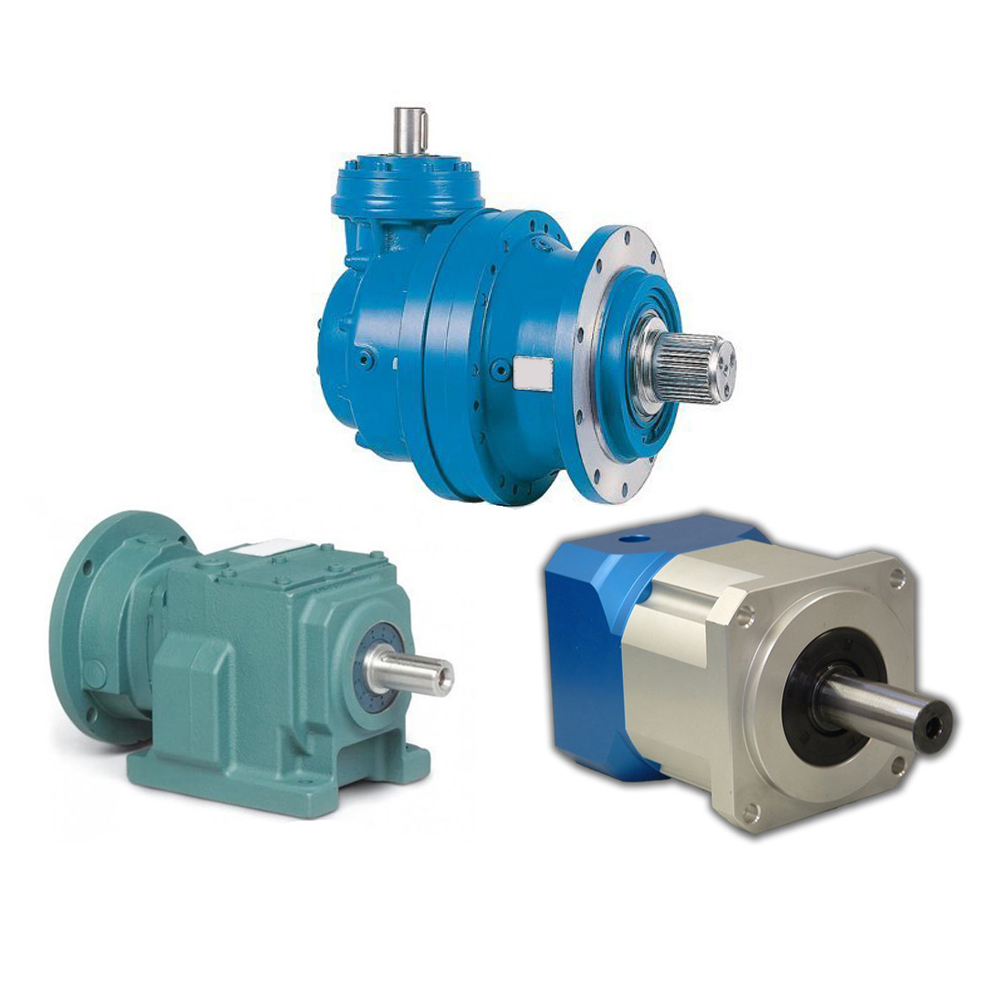

Related Products

Packing&Shipping

Inner Packing: PP bag with carton;
Outer Packing: Non-fumigation case/Plywood case,
Shipment: 14-25 days after the payment receiving..

Company Introduction

Hangzhou Ever-Power Transmission - One of the biggest transmission gear and gearbox manufacturer in China Machinery Co., Ltd. is a large-scale enterprise, specialized in producing worm gear reducer, helical-gear reducer and motor, devoted to provide professional, efficient, and humanized transmission solution.

It is one of the first Machinery factory passed ISO9000-2000 International System Certificate.
It is the first drafting unit of the industry standard-setting of "WP series cylindrical worm reducer", and the Deputy Editorial
Unit of the Manual "Reducer Standard full set".

The main production is RFKS series gear reducer, WP series worm gear reducer, NMRV series worm gear reducer and SWL series screw lift, which has been sold to all over China and are exporting to the USA, Europe, and Southeast Asia.
They are mainly applied in fields of the food, leather, textile, petroleum, packaging, wind power, solar power, ocean equipment and so on.

The technology, equipment and testing technology has reached international advance level.
It has the first-rate processing and testing equipment of the world, the enterprise technology center of Xiao Shan District and R&D center of Hangzhou City, and a new product R&D center and innovation base for teaching and scientific cooperating with China Jiliang University.

Ever-Power Transmission - One of the biggest transmission gear and gearbox manufacturer in China Machinery always takes the aim of "insist on technological innovation and customer satisfaction is our highest pursuit", and make unremitting efforts to take the lead at the same trade.

Ever-Power Transmission - One of the biggest transmission gear and gearbox manufacturer in China Machinery always takes the aim of "insist on technological innovation and customer satisfaction is our highest pursuit",and make unremitting efforts to take the lead at the same trade.
