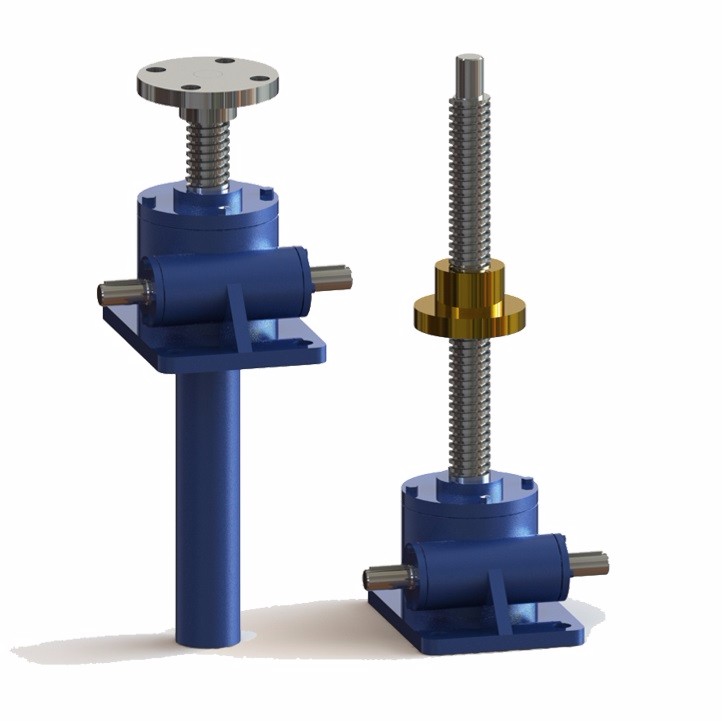

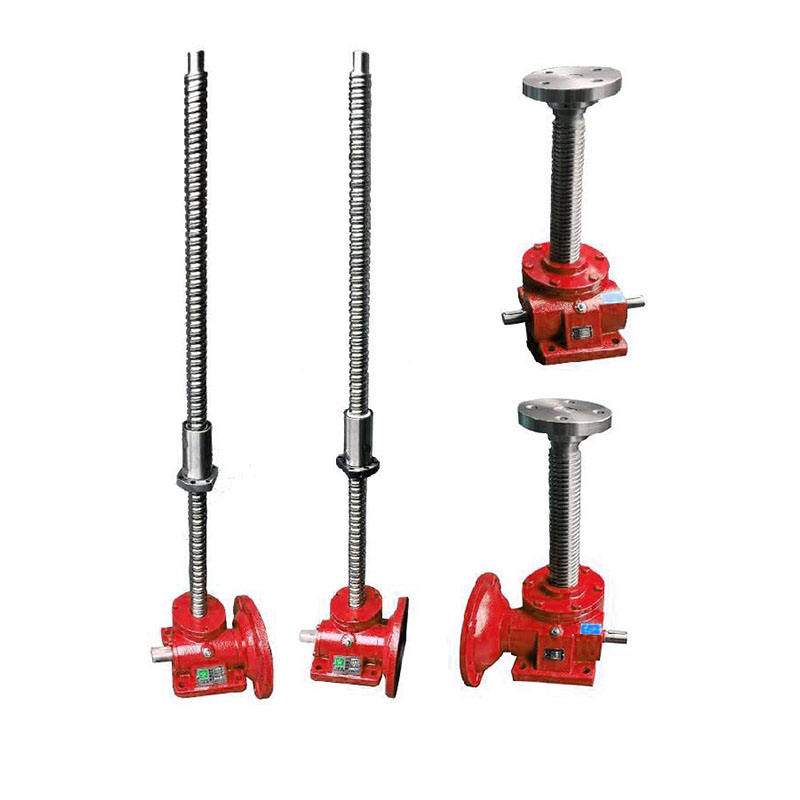

SWL Series Worm Gear Screw Jack

Product ApplicationSWL series screw jacks are widely used in industries such as metallurgy,mining,hoisting and transportation, electrical power,energy source, construction and building material,light industry and traffic industry Main Features1.Configuration Form1 type-worm ......Keywords:Swl Series Worm Gear Screw Jack - Buy Hydraulic Screw Jack worm Gear Screw Jack manual Worm Gear Screw Jack Product on CMN Industry Inc

Send Inquiry

Product Description

Product Application

SWL series screw jacks are widely used in industries such as metallurgy,mining,hoisting and transportation, electrical power,energy source, construction and building material,light industry and traffic industry

Main Features

1.Configuration Form

1 type-worm gear and screw is threaded and coupled and screw does asial motion.

2 type-worm gear joins screw by key,the screw assembled with nut,and this nut does axial motion.

2.Assembly Type

A type:screw work end at top and nut uplify or pull it down.

B type:screw work end at lower side and nut press it down or pull it up

3.Screw Head Form

1 type configuration from ,screw head form is :1 type(cylinder),2 type(flange),3 type(thread),4 type(flat head)

2 type configuration form,screw head form is :1 type(cylinder),2 type (thread)

4.Drive Ratio

The jack worm gear drive ratio divided into two types:Normal (P) and Slow(M)

5.Lifting load capacity

2.5T 5T 10T 15T 20T 25T 35T 50T 100T 120T

6.protection of screw

1 type jack screw divided as normal ,protective rotation(F) and protective cover attached(Z)

2 type jack screw divided as normal and protective cover attached(Z)

Machine Parts

SWL Worm-bolt lifter has the features of
compacted structure,
and portable,
reliable,
long service life,
easy to installation,
self-locking while stop.

Q1: What information should I tell you to confirm the product?
A: Model/Size, Transmission Ratio, Shaft directions & Order quantity.
Q2: What can i do if I don't know which one I need?
A: Don't worry, Send as much information as you can, our team will help you find the right one you are looking for.
Q3:What is your product warrenty period?
A:We offer one year warrenty since the vessel departure date left China.
Q4: What is your terms of payment ?
A: 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
