Szl Series Mechanical Screw Jack Worm Gear Jacks Machine & Ball Screw Jack Actuators for Lifting Tools Flooring Jack Application

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:385px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:385px}#detail_decorate_root .magic-3{border-bottom......Keywords:Szl Series Mechanical Screw Jack Worm Gear Jacks Machine & Ball Screw Jack Actuators For Lifting Tools Flooring Jack Application - Buy Flooring Type Screw Jack Customized Color Screw Jack Machine Ball Screw Jack Actuators Lifting Tool Screw Jack Swl Series Mechan Product on CMN Industry Inc

Send Inquiry

Product Description

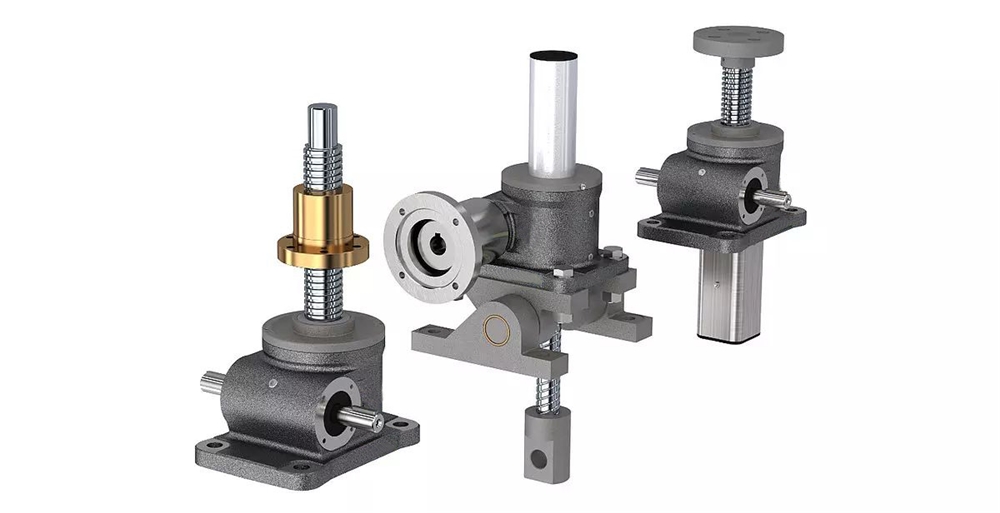

High Quality Worm Screw Jack

The most common jack is the worm gear screw jack, also referred to as machined screw jacks because the acme, or trapezoidal, lead screw is machined. In addition to the low cost and self-locking characteristics, another advantage of worm gear screw jacks, and all screw jacks, is the mechanical advantage achieved through the internal gear ratio resulting in the ability to lift, lower, push or pull a significant load with a relatively small amount of torque on the I/O shaft. Worm gear screw jacks are very good in multiple jack systems, because the torsional deflection of connecting shafts and couplings has little effect on positioning. Under heavy load, worm gear screw jacks are not designed for high use or heavy duty cycle applications. They also suffer from low travel rates or speed and low efficiency. However, the lack of efficiency inherent in worm gearing produces the self-locking benefit associated with worm gear screw jacks.

For more details, please click here to contact us!

Housing material	Cast iron/Ductile iron
Housing hardness	HBS190-240
Gear material	20CrMnTi alloy steel
Surface hardness of gears	HRC58°~62 °
Gear core hardness	HRC33~40
Input / Output shaft material	42CrMo alloy steel
Input / Output shaft hardness	HRC25~30
Machining precision of gears	accurate grinding, 6~5 Grade
Lubricating oil	GB L-CKC220-460, Shell Omala220-460
Heat treatment	tempering, cementiting, quenching, etc.
Efficiency	98%
Noise (MAX)	60~68dB
Temp. rise (MAX)	40°C
Temp. rise (Oil)(MAX)	50°C
Vibration	≤20µm
Backlash	≤20Arcmin

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
