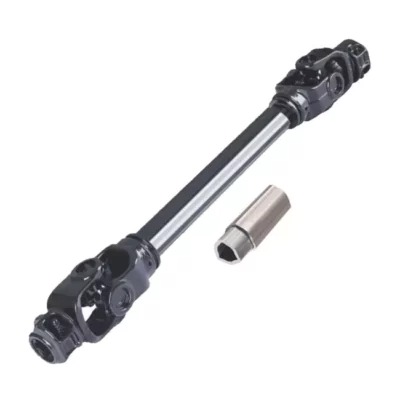

T Series PTO Drive Shaft Triangular Tube

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:400px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:400px}#detail_decorate_root .magic-3{border-bottom......Keywords:T Series Pto Drive Shaft Triangular Tube - Buy T Series Pto Drive Shaft,Pto Drive Shaft Triangular Tube,Pto Drive Shaft Product on CMN Industry Inc

Send Inquiry

Product Description

Benefits

.Premium quality PTO shafts
.Unique lever release PTO protective shaft cover
.Universal joints with long life triple lip internal seals

Series	540 tr./min					1000 tr./min		MP(NM)
Series		Kw	Pk	Nm	Kw	Pk	Nm	MP(NM)
T1	12	16	210	18	25	172	320
T2	15	21	270	23	31	220	450
T3	22	30	390	35	47	330	640
T4	26	35	460	40	55	380	780
T5	35	47	620	54	74	520	1050
T6	47	64	830	74	100	710	1450
T7	55	75	970	87	118	830	1800
T7N	55	75	970	87	118	830	1800
T8	70	95	1240	110	150	1050	2250
T38	78	105	1380	123	166	1175	2500
T9	88	120	1560	140	190	1340	2800
T10	106	145	1905	170	230	1650	3500

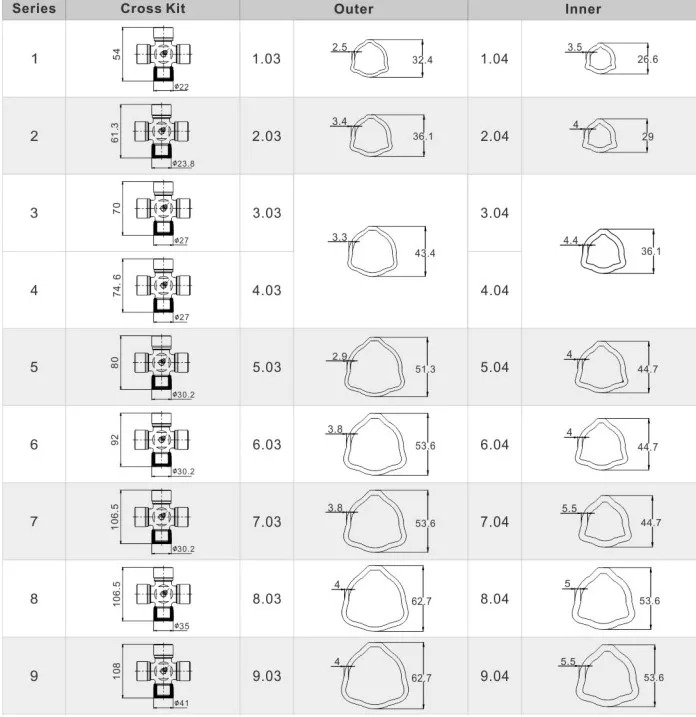

Triangular Tube of PTO Shaft

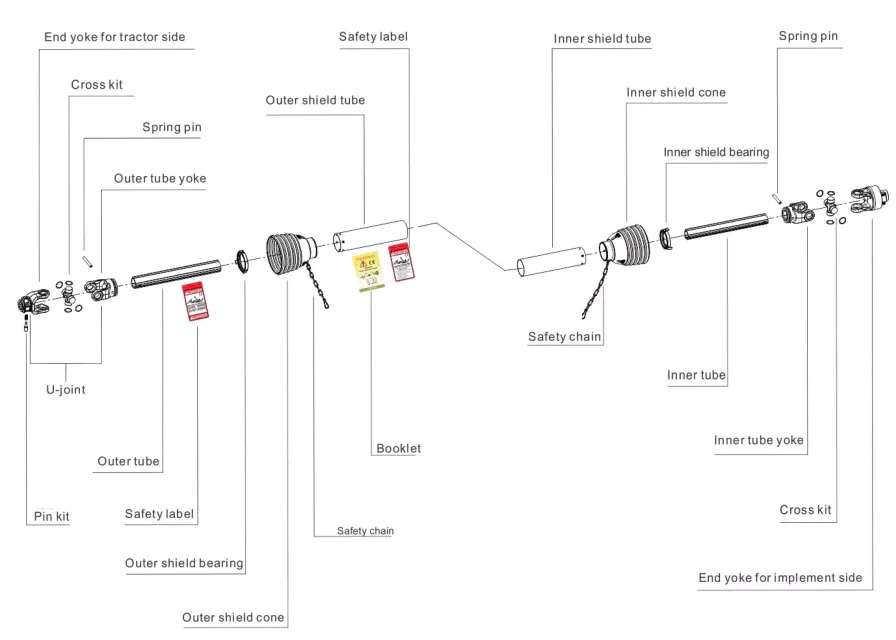

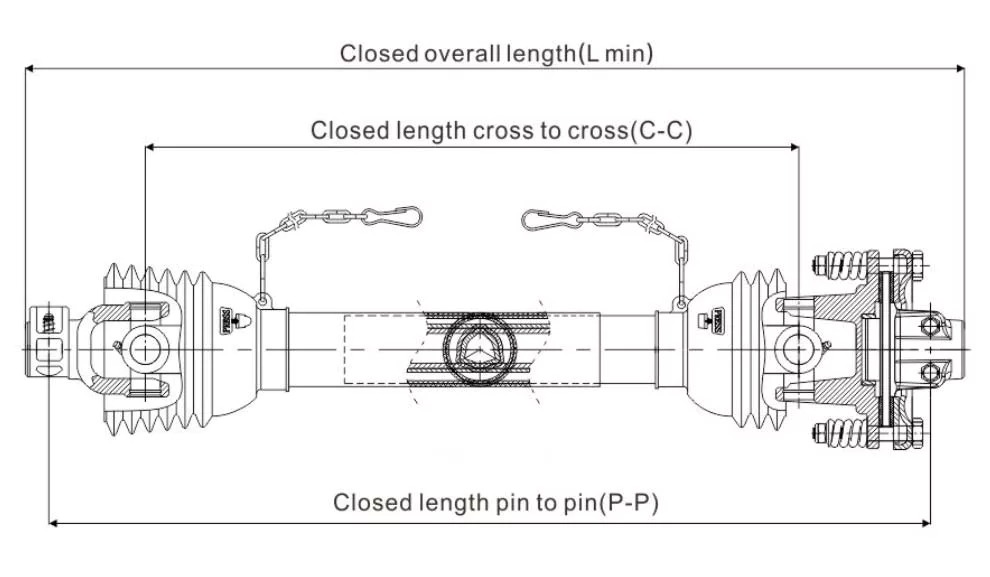

Agricultural PTO Drive Shaft Structure

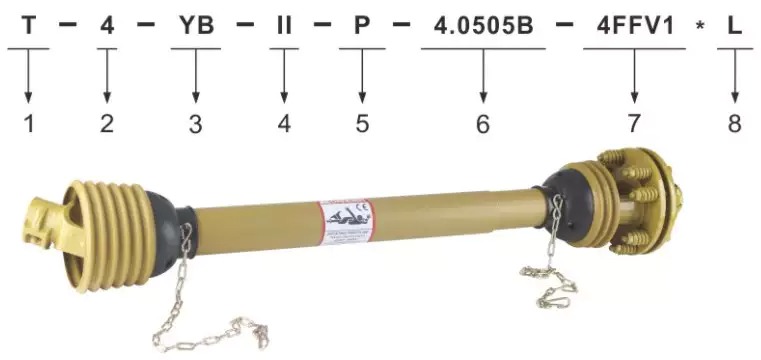

PTO Shaft Code Explanation

Product # in picture	Description
1	The Types of Tubes(e.g: T: L, ST: G)
2	The series of cross kits
3	The Code of Color(YB=Yellow+Black)
4	The Code of Safety Shield Structure
5	Connection Method Pin Connected
6	The Tractor End Yokes
7	The Implement End Yokes
8	Minimum Overall length

PTO SHAFT

Function	Drive Shaft Parts & Power Transmission
Usage	Kinds of Tractors & Farm Implements
Yoke Type	Double push pin, Bolt pins, Split pins, Pushpin, Quick release, Ball attachment, Collar…..
Processing Of Yoke	Forging
Plastic Cover	YW; BW; YS; BS; Etc
Color	Green; Orange; Yellow; Black Ect.
Series	T1-T10; L1-L6;S6-S10;10HP-150HP with SA,RA,SB,SFF,WA,CV Etc
Tube Type	Lemon, Triangular, Star, Square, Hexangular, Spline, Special Ect
Processing Of Tube	Cold drawn
Spline Type	1 1/8″ Z6;1 3/8″ Z6; 1 3/8″ Z21 ;1 3/4″ Z20; 1 3/4″ Z6; 8-38326 8-42367; 8-48428;

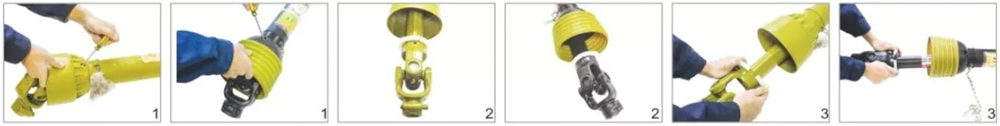

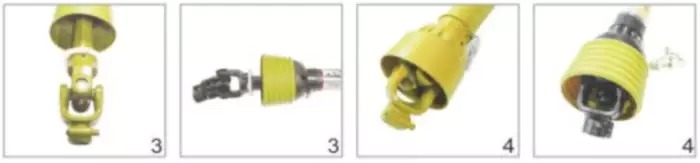

PTO SHAFT INSTALLATION INSTRUCTION
Install assembly

1 press-fit plastic pipe and plastic cap,
2 fill the groove on the horn with oil

3. Slide the nylon bearing into the groove
4. Align nylon bearing and plastic protective cover

Disassembly

1. remove the nylon bearing clamp (three places) with a screwdriver, and then separate the steel pipe and plastic protective cover.
2. Take off the nylon bearing from the groove of the yokes.
3. repeat the above-mentioned steps for the other side.

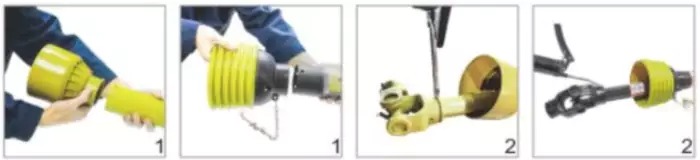

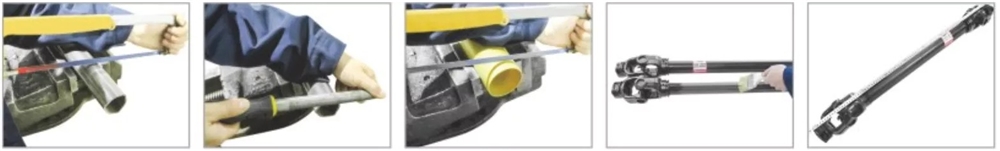

SHORTENING THE PTO DRIVESHAFT

1. Remove the safety shield.
2. Shorten the inner and outer tubes according to the required length, and the inner and outer tubes shall be shortened by the same length at one time
3. Deburr edges of the drive tubes with a file and remove all filings from the tubes.
4. Shorten the inner and outer plastic pipes according to the required length, and the inner and outer plastic pipes shall be shortened by the same length at one time.
5. Grease the internal drive tubes and reassemble them with a safety shield.
Check the minimum and maximum length of the driveshaft installed on the machine. In working condition, the drive tubes should overlap 2/3 length and the plastic tube should never be separated

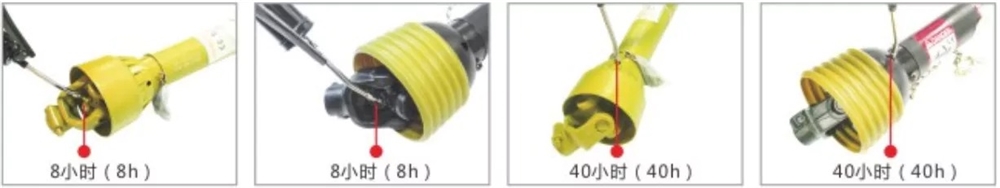

LUBRICATION OF THE PTO DRIVESHAFT

Frequent lubrication is required. Grease the driveline shaft parts at hourly intervals as indicated on the drawing left.

The same assembly method is used for both types of safety shields.

We Also Supply PTO Shafts
If you also need the PTO axis, click here:https://www.alibaba.com/product-detail/Agricultural-Gear-Box-Right-Angle-Drive_62006978819.html?spm=a2700.shop_plfe.41413.11.3d587e03BHaaiH)

Click here for more details!

Agricultural Gearbox For Offset Mowers
Agricultural Gearbox For Flail Mowers
Driveline Gearbox Of Irrigation System
Center-dive Gear Box of Irrigation System
Gearboxes For Feed Mixer
Oil-pump Gearbox
Potato Harvester Gearbox
Harvester Gearbox Reversing Bevel Gearbox

Agricultural Gearbox For Vineyard And Orchard Grass Cutters
Agricultural Gearbox For HAY TEDDER
General Gearbox For Agricultural Machinery
Side-Delivery Rake Gearbox
PTO SPEED REDUCER GEARBOX
Grain Harvester Reversing Gearbox
Pesticide Sprayer Gearbox
Rotary Mower Gearboxes
Reversing Gearbox (used In Grain Unloading System)

Agriculture Gearbox For Rotary Harrows
Agricultural Pto Gearboxes For Powered Generator
Hydraulic PTO Drive Gearbox Speed Increaser
SLASHER GEARBOXES
Grain Auger Gearboxes
Agricultural Chain Sprockets Gearbox
Agricultural Gearbox Grain Conveyor Gearbox
