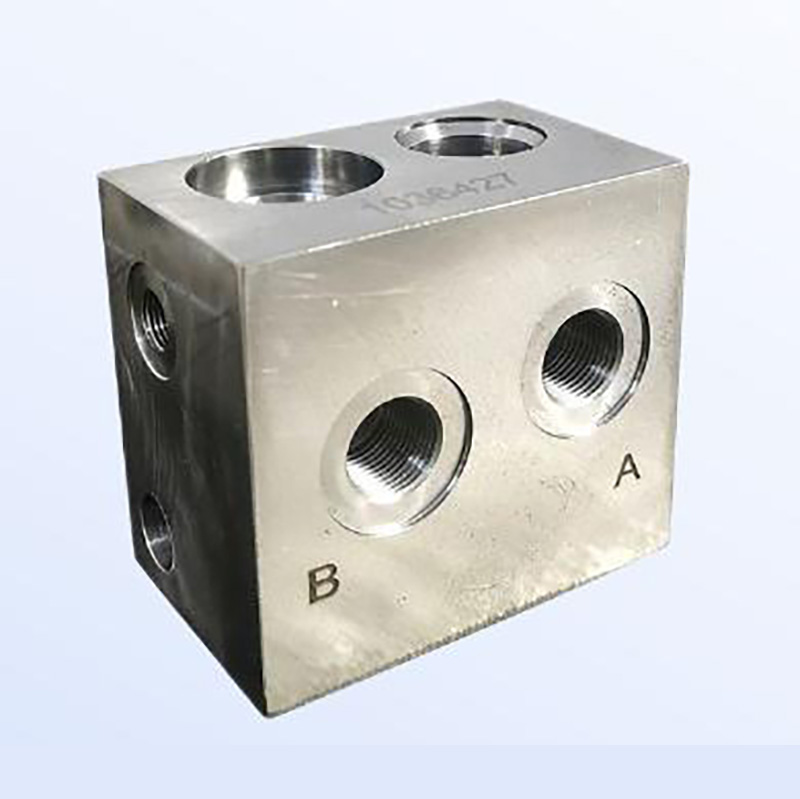

T13A Soft-Start Hydraulic Flow Control Valve Block for Hydraulic Systems

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{vertical-......Keywords:T13a Soft-start Hydraulic Flow Control Valve Block For Hydraulic Systems - Buy Hydraulic Valve hydraulic Flow Control Valve Block t13a Soft-start Hydraulic Flow Control Valve Block For Hydraulic System Product on CMN Industry Inc

Send Inquiry

Product Description

Introduction The hydraulic flow control valve block is the core component for achieving precise flow control in the hydraulic system. It effectively controls the movement speed of the actuator by adjusting the flow of hydraulic oil, ensuring the smooth and efficient operation of various hydraulic equipment. Product introduction The 2-position, 2-way valve can be equipped with a direct-acting solenoid valve and a directional control valve. The valve has a design flow rate of 40 L/min and uses a T13A orifice. This 2-position, 2-way valve can be equipped with a direct-acting solenoid valve with a poppet-type orifice. Both normally open and normally closed configurations are available. Seals are available in nitrile rubber (NBR), ethylene propylene diene monomer (EPDM), and fluororubber (FKM) to ensure leak-proof operation. The valve port of this valve block can also be adapted to a two-position solenoid spool valve and a reversing valve with a flow rate of 45L/min. The two-position two-way valve can be equipped with a solenoid valve, which adopts a direct-acting balanced structure and also has normally open and normally closed functions. In addition, the valve port supports a direct-acting, soft-switching solenoid poppet valve. The reversing valve has a design flow rate of 15 L/min and can be equipped with a two-position, two-way solenoid valve. The poppet valve structure has a soft-start feature that significantly reduces system impact during valve actuation.

Parameter	Specification
Maximum Working Pressure	350 bar
Rated Response Time	50ms
Maximum Leakage (110 SUS/24 cSt Fluid)	80cc/min @ 210 bar
Switching Frequency	15,000 cycles/hr
Valve Port Model	T13A
Seal Kit (Cartridge Type)	Buna (Nitrile rubber); 990-413-007
Seal Kit (Cartridge Type)	Viton (Fluoro rubber); 990-17-006
Force Required for Manual Override	33N / 100 bar @ Port1
Manual Override Stroke	2.5mm
Solenoid Coil Starting Voltage	12VDC / 24VDC

T13A hydraulic flow control valve block, can be equipped with two-position direct-acting solenoid poppet valve and reversing valve, with a design flow of 40L/min, and uses T13A valve hole. The two-position two-way can be equipped with a solenoid valve,which is direct-acting. The valve hole is a poppet valve structure, with two configurations of normally open and normally closed.
It is made of nitrile, EPDM and fluororubber, and has no leakage.

The valve hole of this valve block can also be equipped with a two-position solenoid slide valve and a reversing valve with a flow of 45L/min. The two-position two-way can be equipped with a solenoid valve, which is a direct-acting balanced structure and also has normally open and normally closed functions.

In addition, the valve hole is a direct-acting, soft-switching solenoid poppet valve, and the reversing valve has a design flow of 15L/min. It can be equipped with a two-position two-way solenoid valve. The poppet valve structure has a soft start
characteristic, which can greatly reduce the system impact when the valve is driven.

For more details, please click here to contact us！

EVER POWER has long been committed to management innovation and model innovation, actively exploring the path of enterprise informatization and digitalization, and taking the road of intelligent transformation with deep integration of manufacturing and the Internet. It has successively passed ISO9001 quality management system, IS014001 environmental system, OHSAS18001 occupational health and safety system certification, two-in-one management system assessment and DCMM data management capability maturity level assessment. The digital workshop built in 2019 was rated as a digital workshop in Zhejiang Province. From 2020 to 2021, the two-year construction period of the hydraulic motor smart factory project created the first automated, lean and intelligent "smart factory" in the hydraulic industry, making personnel productivity and batch product stability, new product development cycle, enterprise operating costs and other indicators achieve industry leadership. In 2022, the digital workshop for flexible processing of cycloidal motors was built, which passed the acceptance and was put into use in 2023, further promoting the upgrading of various business models and improving the company's management and operation capabilities. Hydraulic motors have been highly praised by the market for their small size, high torque and high safety. The domestic market share ranks among the top, accounting for nearly 61% of the market in Zhejiang Province. At the same time, the company actively explores the international market, and its products are exported to more than 80 countries and regions including Germany, the United Kingdom, Italy, the United States, Canada, Brazil, Russia, South Korea, etc. EVER POWER uses ingenuity to create excellent quality, takes it as its mission to create a national brand, and becomes a leader in the hydraulic ecology!

Our company has invested a total of 81 equipment, 39 machining centers, and 36 CNC machine tools in the production line, including 33 imported equipment, for the production and processing of a series of precision parts and accessories for the company, achieving automated production, reducing labor intensity and improving production efficiency, merging processes, and shortening the length of the production line. The equipment is mainly imported to improve the product assurance capability and market competitiveness of the entire production line.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
