Product Description

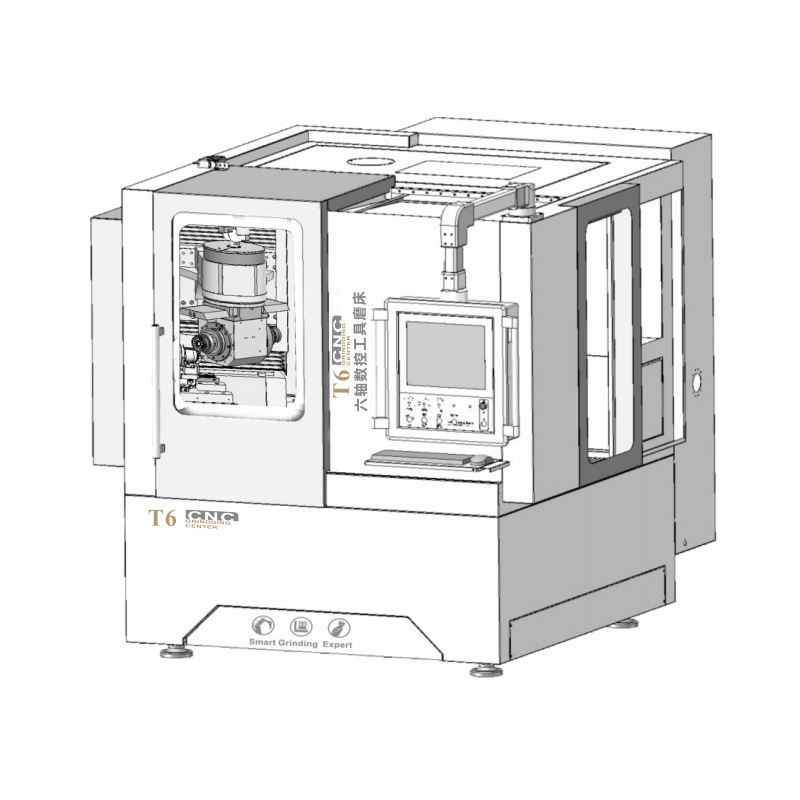

T6/T6A 6 Axis CNC Tool Grinder

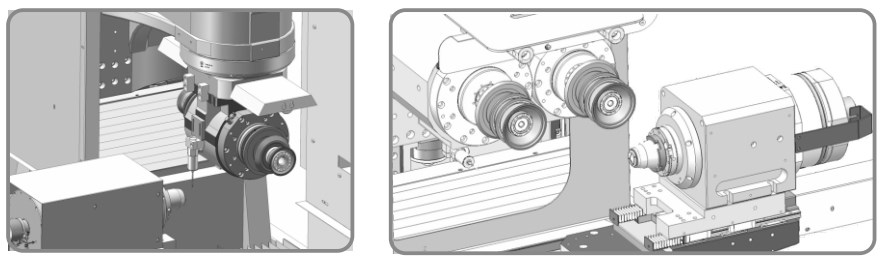

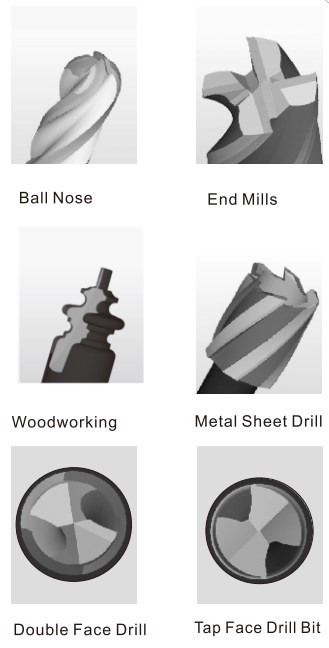

Equipped with direct drive spindle for double grinding wheel set, T6/T6A 5-axis CNC grinder is perfect forautomatically mass production of mills, drills, screw taps for aviation, automotive, molds, IT and medical industriesMain technical features

1.Direct drive/ Linear motor on workpiece swiveling axis(B), workpiece rotating axis(C)and x, Y, Z axis with HEIDEHAIN/FAGOR/RENISHAW magnet scale for higher machine accuracy.

2, Special following support devices are optional for longer drills grinding with high efficiency and high precision

3, Natural granite machine base provides excellent accuracy and temperature stability, which is a wise option forgh accuracy tool grinding

4, Automatic loading unloading system with anti-collision, maintenance free and fine adjustment function

5, Thanks to the innovative accurate press-blade system, precise grinding could be realized efficiently.

6, Workpiece axis(C axis)is equipped with pneumatic clamping and blowing device for fast change system Pressureelief window, automatic power air off, power failure automatic lock.

7, wide extension with BP/SYNTEC Provides a wide extension. Toolbox 3D grinding simulating software annnovative BP intelligent grinding software bring a smarter and easier operation experience

8, Smart tool managing system can realize automatic grinding, probing, laser engraving, etc.Real-time data collecting, remote diagnose, maintenance, supervising and management is possible

Double-end spindle wheel			Work piece grinding capacity
Elastic wheel flange link type	specified elastic flange	Work piece grinding capacity	0.8-16/25mm
Power	10/20/37kw	Grinding length	200mm
Max speed	10000rpm	Control resolution of linear axis	0.0001mm
Travel			Control resolution of rotating axis	0.0001
X aixs	440mm	Robot loading system
Y aixs	200mm	Work piece shank diameter	3-16/25mm
Z aixs	280mm	Max length of work piece	250mm
A aixs ( spindle rotation)	-15-185	X1 axis	400mm
B aixs( work piece swing axis)	-15-165	Y1 axis	350mm
C axis ( work piece rotating axis)	360	Z1 axis	90mm
Max speed of linear axis	10m/min	Connecting load
Work piece rotating axis ( C axis )			At 380V/50HZ	19/29/46kw
Max speed ( direct drive )	300rpm	Dimension
Standard taper hole type	BT50/W20/W25	Length*Width	2250*2450mm
Probing system	RENISHAW/MARPOSS	Height	2400mm
CNC system	BP/SYNTEC/FANUC/SIEMENS	Weight	4350kg
