Product Description

Electric push rods are devices with features such as electric drive, linear propulsion, adjustable length, and high-precision
control. They play an important role in the fields of automation and control, providing reliable linear motion solutions

Linear push: Electric push rods can provide linear driving force, converting input electrical energy into linear motion. They generate thrust through internal electric motors or electric devices, thereby achieving the function of linear propulsion.

Adjustable length: Electric push rods usually have adjustable length and can be adjusted according to specific needs. This adjustability makes it suitable for different application scenarios and tasks that require different stroke lengths.

High precision control: Electric push rods typically have high-precision position control capabilities, enabling precise motion control. Through electronic control systems, the position, speed, and force of the push rod can be precisely controlled to meet the requirements of specific applications.

Reliability and Durability: The design of Electric push rods typically considers reliability and durability. They use high-quality materials and processes, have good durability and corrosion resistance, and can maintain stable performance in long-term use.

Multiple application areas: Due to its linear propulsion and precise control characteristics, Electric push rods are widely used in various fields. They are commonly used in fields such as automation equipment, mechanical engineering, aerospace, medical equipment, robotics technology, etc., to achieve tasks such as linear motion control and position adjustment.

Drive load	200N	300N	400N	500N
Pulling load	200N	300N	400N	500N
Voltage	12/24VDC
Empty speed	25mm/s	12mm/s	8mm/s	4mm/s
Load speed	20mm/s	9mm/s	6mm/s	3mm/s
Stroke	10-600mm

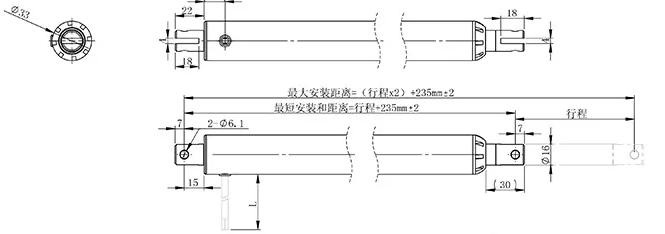

Shortest installation distance	+1235mm
Working frequency	S2-10min
Travel switch	built-in
Prevent overload	Integrated in the controller
Colour	Silver white
Inner tube	Stainless steel
Protection level	IP65
Working temperature	-26~+65℃
Standard	CE/RoSHS

Fine craftsmanship and focus on quality

The product has a wide range of applications, complete specifications, and supports customization; Material selection requirements, sturdy exterior, precise structural design, and convenient installation

1.Support customization More than ten years of experience as the source manufacturer of electric push rods, with a strong R&D team that can design and produce products according to different customer requirements

2.Quality assurance The company adopts modern production equipment, reliable production processes, and complete testing equipment to ensure product performance. The products use high-quality and energy-saving motors, high-quality transmission components, and excellent raw materials to ensure that each high-quality and qualified product is delivered to users.

3.Worry free after-sales service Quick response within 24 hours, patient technical service throughout the process, and worry free after-sales service.

About us, Ever-power Technology Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of electric push rods, lifting pillars, and related controllers, hand controllers, and other products. Our products are widely used in electric medical bed guides, electric sofas, massage chairs, dental chairs, mechanical arms, robots, TV lifting cabinets, furniture lifting and other occasions that require linear movement and execution. With more than ten years of industry experience, we provide OEM or ODM services with high-quality products, competitive prices, and thoughtful after-sales service. Our products are far from Asia, Europe, Arabia, and other places. We look forward to more domestic and foreign customers visiting and guiding us

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
