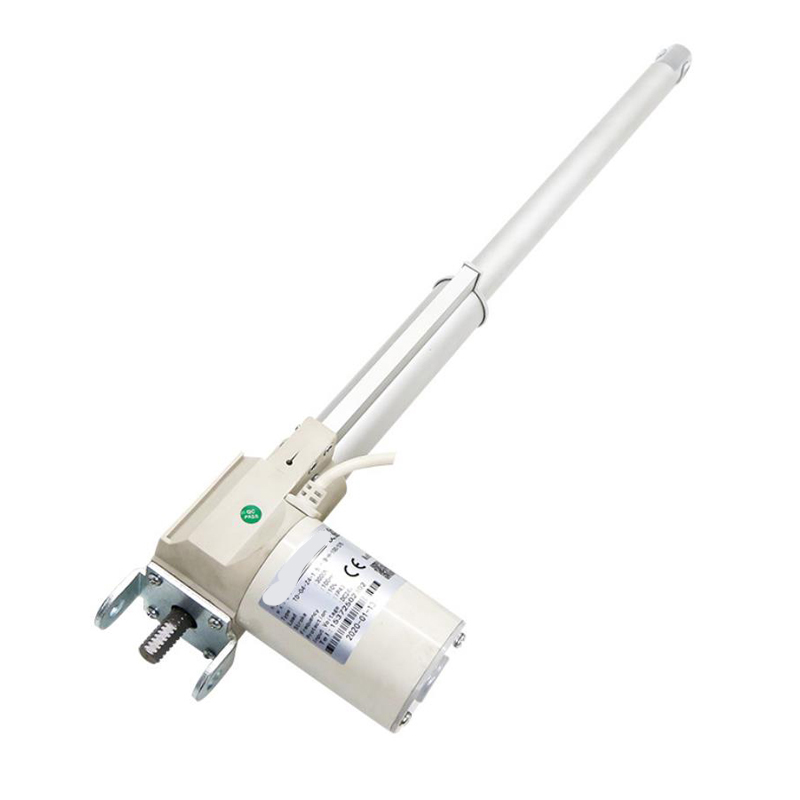

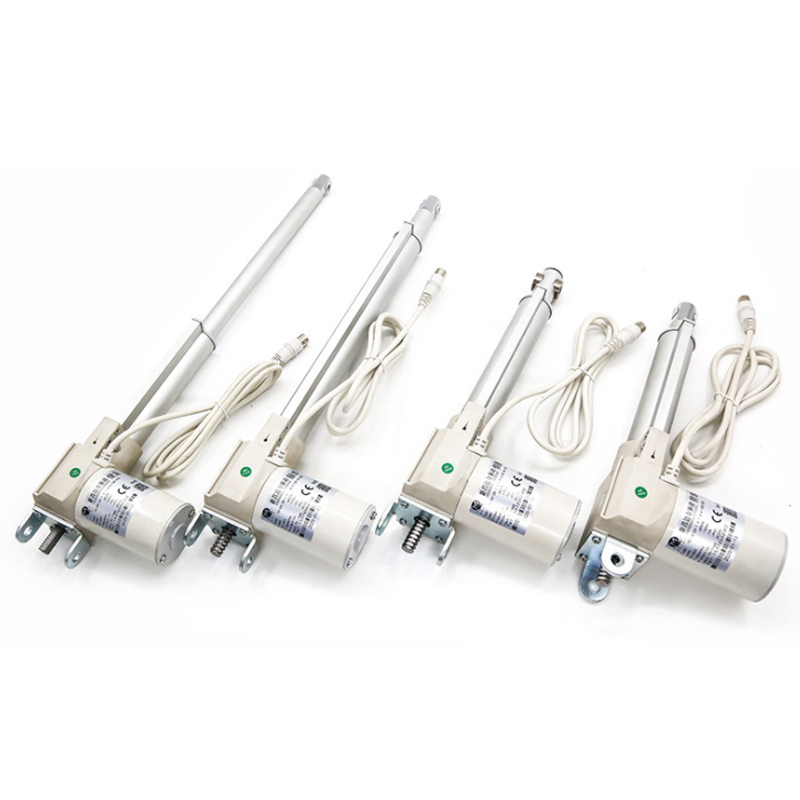

TD-04B Linear Actuator Electric Push Rod With Hand Operated

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Td-04b Linear Actuator Electric Push Rod With Hand Operated - Buy Lock Push Rod push Rod With Hand Operated td-04b Linear Actuator Electric Push Rod With Hand Operated Product on CMN Industry Inc

Send Inquiry

Product Description

Fine craftsmanship and focus on quality

The product has a wide range of applications, complete specifications, and supports customization; Material selection requirements, sturdy exterior, precise structural design, and convenient installation

1.Support customization More than ten years of experience as the source manufacturer of electric push rods, with a strong R&D team that can design and produce products according to different customer requirements

2.Quality assurance The company adopts modern production equipment, reliable production processes, and complete testing equipment to ensure product performance. The products use high-quality and energy-saving motors, high-quality transmission components, and excellent raw materials to ensure that each high-quality and qualified product is delivered to users.

3.Worry free after-sales service Quick response within 24 hours, patient technical service throughout the process, and worry free after-sales service.

*Push load*	500N	1000N	2000N	3000N	6000N
*Pulling load*	400N	600N	1500N	2500N	4000N
*Self locking push load*	500N	1000N	2000N	3000N	6000N
*Self locking pull load*	400N	600N	1500N	2500N	4000N
Voltage	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V
Empty speed	42mm/s	32mm/s	20mm/s	9mm/s	4mm/s
Load speed	35mm/s	25mm/s	13mm/s	7mm/s	3.5mm/s
Stroke	50-1000mm

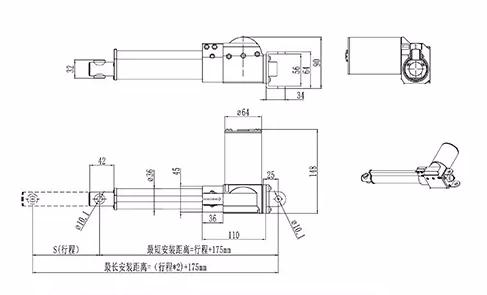

Shortest installation distance	+175mm
Working frequency	S2-18min
Travel switch	built-in
Prevent overload	Integrated in the controller
Colour	Black/ white
Inner tube	Stainless steel
Protection level	IP65
Working temperature	-26~+65℃
Standard	CE/RoSHS

Automation industry

Electric push rods are widely used in production lines, assembly lines, and automation equipment in the automation industry. They are used to push, pull, or adjust the position of objects, achieving precise linear motion control. For example, they can be used for motion control of robotic arms, handling equipment, automatic doors and windows, automatic packaging machines, etc.

Mechanical Engineering

Electric push rods are used in the field of mechanical engineering for linear motion control of various mechanical systems. They can be used to adjust the position of mechanical devices, achieve precise positioning and adjustment. For example, they can be used to adjust the height of the workbench, control valve switches, adjust the position of mechanical parts, and so on.

Vehicle Engineering

Electric push rods are used for automation and electrification applications in vehicle engineering. For example, in the automotive industry, they can be used for controlling functions such as electric seat adjustment, window lifting, and trunk opening. In the aerospace field, they can be used for motion control of aircraft flaps, landing gears, doors, etc.

Medical equipment:

Electric push rods play an important role in medical equipment, used to achieve precise motion control and adjustment of medical equipment. For example, on an operating table, they can be used to adjust the height, angle, and position of the operating table. In rehabilitation equipment, they can be used for motion control of exercise beds, walking aids, etc.

About us, Ever-power Technology Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of electric push rods, lifting pillars, and related controllers, hand controllers, and other products. Our products are widely used in electric medical bed guides, electric sofas, massage chairs, dental chairs, mechanical arms, robots, TV lifting cabinets, furniture lifting and other occasions that require linear movement and execution. With more than ten years of industry experience, we provide OEM or ODM services with high-quality products, competitive prices, and thoughtful after-sales service. Our products are far from Asia, Europe, Arabia, and other places. We look forward to more domestic and foreign customers visiting and guiding us

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
