Product Description

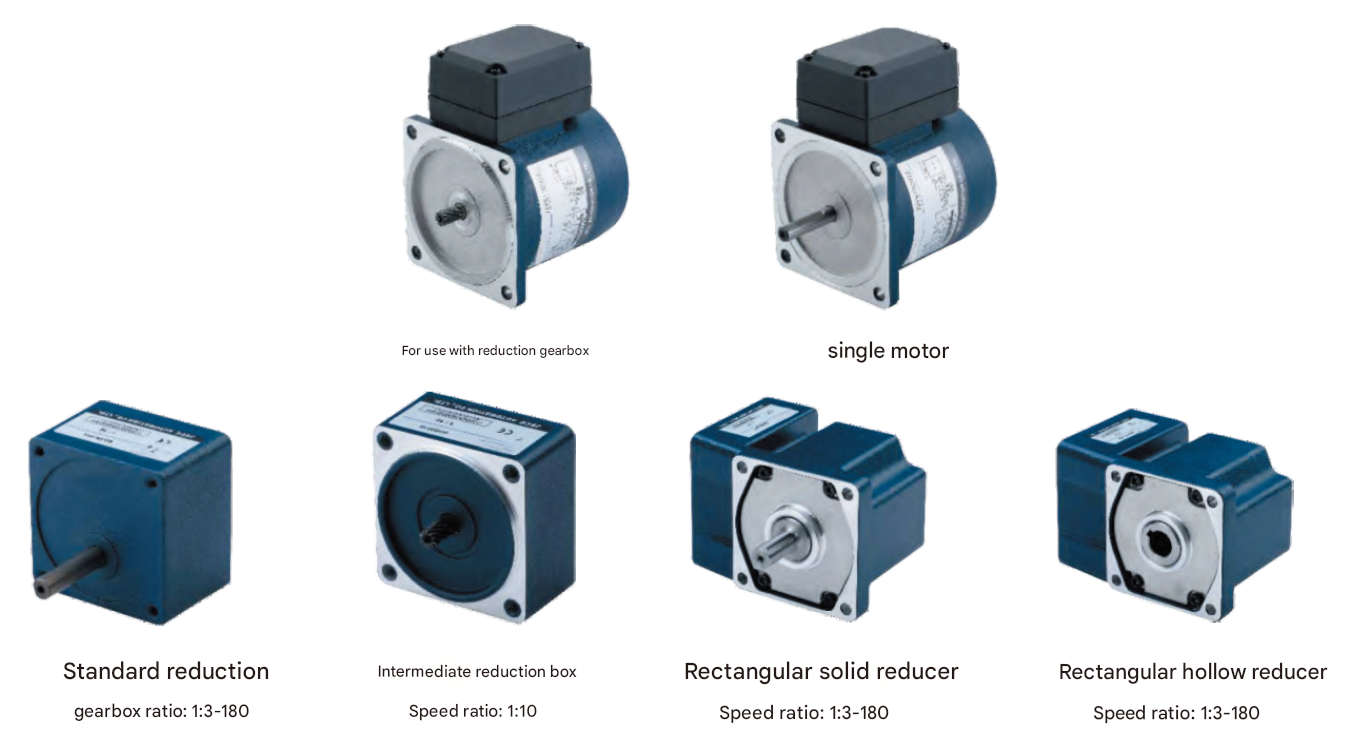

6W-200W AC multi-function (reduction) motor,Small power and large torque, single phase and three phase complete.

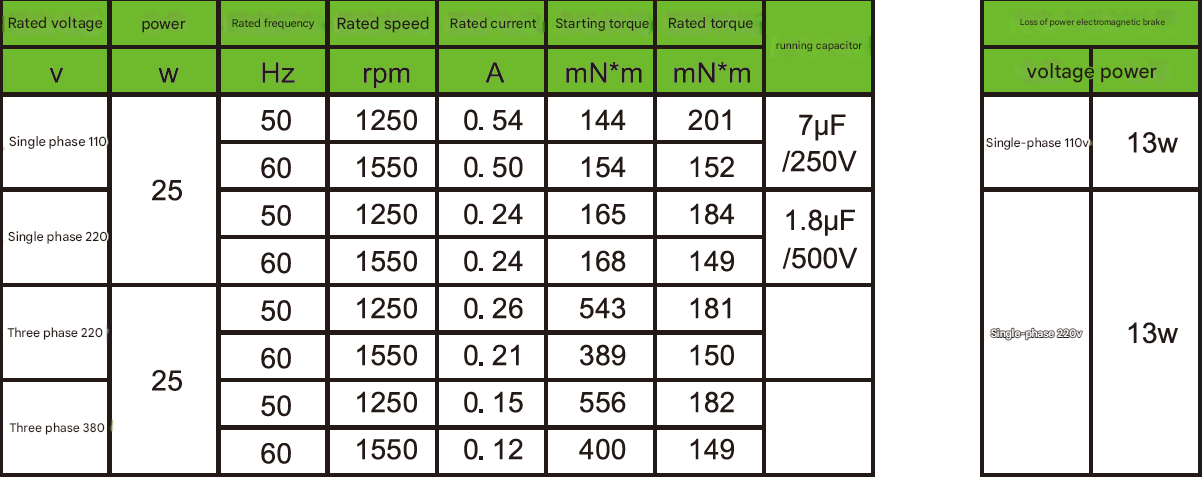

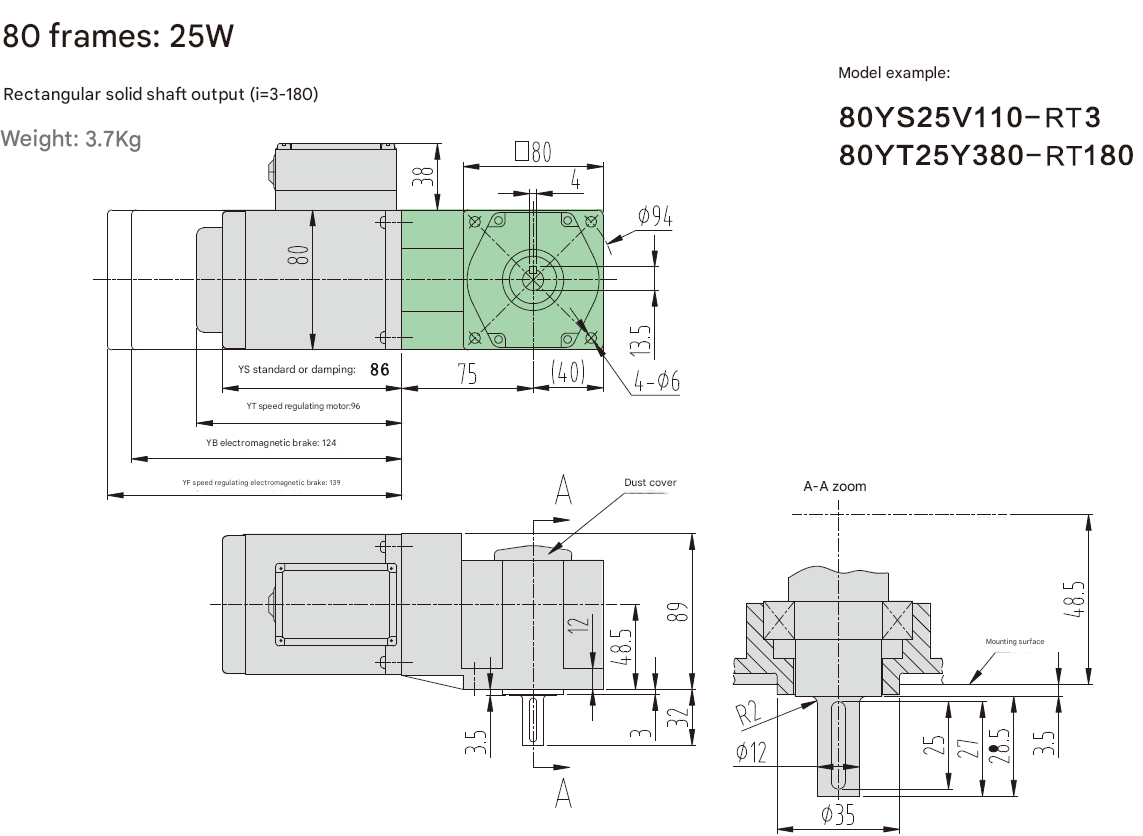

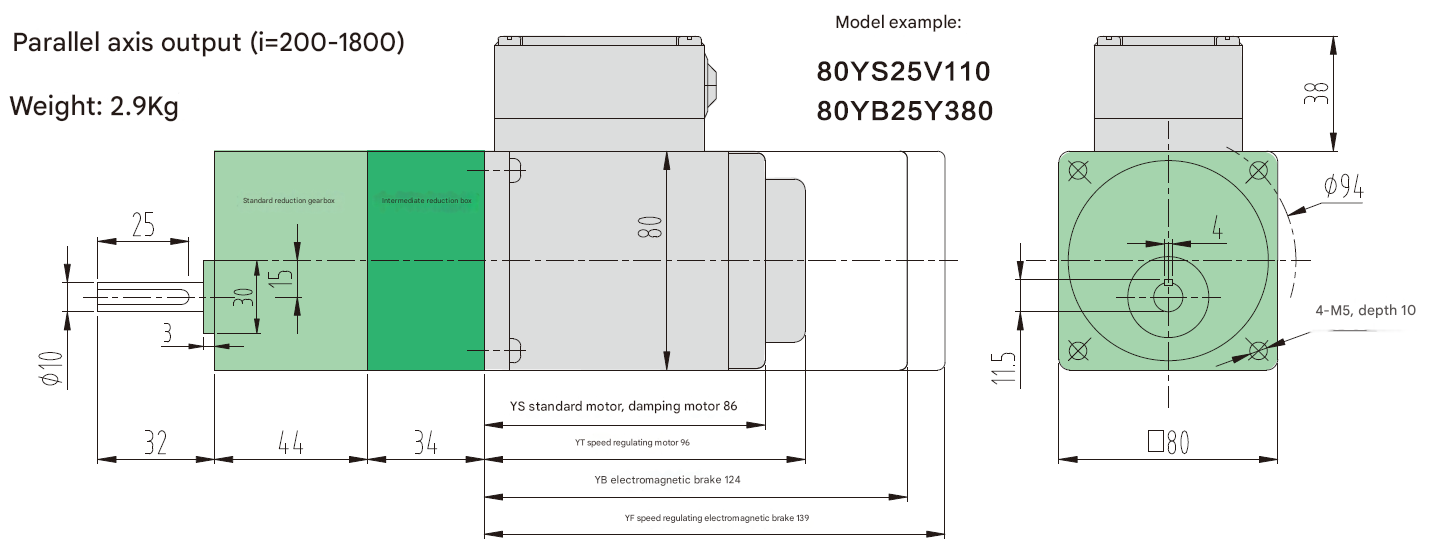

Standard motor 25W (Electromagnetic brake can be attached)

Speed regulating motor
Rated Voltage V	Power W	Rated Frequency Hz	Rated Speed rpm	Rated Current A	Starting Torque mN·m	Rated Torque mN·m			Running Capacitor
						90rpm	1200rpm
Single-phase 110	25	50	90-1350	0.43	140	70	190	7µF / 250V
Single-phase 110	25	60	90-1550	0.41	120	60	153	7µF / 250V
Single-phase 220	25	50	90-1350	0.22	140	70	190	1.8µF / 500V
Single-phase 220	25	60	90-1550	0.22	120	60	153	1.8µF / 500V

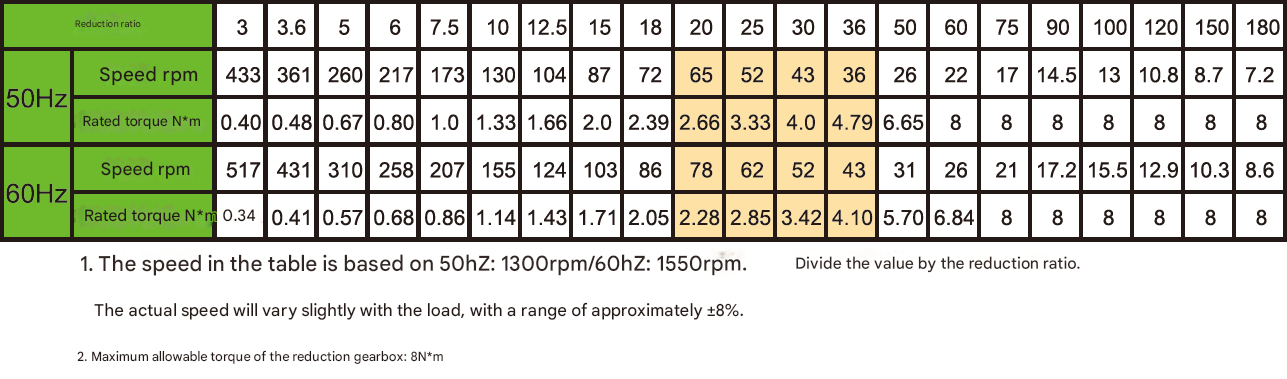

Reduction box performance table

Application

Advantages of Micro Reduction Motor
1. Compact & Lightweight – Small size ideal for space-constrained applications.

2. High Precision – Delivers accurate speed control and positioning for delicate operations.

3. Energy Efficient – Low power consumption with optimized gear ratios.

4. Low Noise & Vibration – Smooth operation suitable for noise-sensitive environments.

5. High Torque Density – Provides significant torque relative to its small size.

6. Long Service Life – Durable materials and precision engineering reduce wear.

7. Easy Integration – Compatible with various drive systems and controllers.

8. Low Maintenance – Sealed designs or pre-lubricated gears minimize servicing needs.

Applications of Micro Reduction Motor
Medical Devices – Surgical robots, infusion pumps, and diagnostic equipment.

Consumer Electronics – Camera lenses, drones, and small appliances.

Automotive Systems – Adjustable mirrors, seat controls, and wiper mechanisms.

Industrial Automation – Miniature conveyors, sorting machines, and robotic arms.

Aerospace – Actuators for small UAVs and satellite components.

Office Equipment – Printers, scanners, and paper feed mechanisms.

Toys & Hobby Models – Remote-controlled cars, animatronics, and DIY projects.

IoT Devices – Smart locks, automated valves, and sensor adjustments.
