Product Description

Features of tie rod cylinder:

1. It can provide greater pulling force and pushing force to ensure the normal operation of agricultural machinery. 2. Maintain stable performance during operation, and be able to stably adjust the height and angle of agricultural machinery to adapt to changes in terrain and ensure consistency in operation. 3. Accurately control the extension and contraction of the oil cylinder to accurately adjust the operating depth, angle and other parameters of the agricultural implement. 4. The connection method and working parameters are suitable for various types of agricultural machinery.

Name	Name

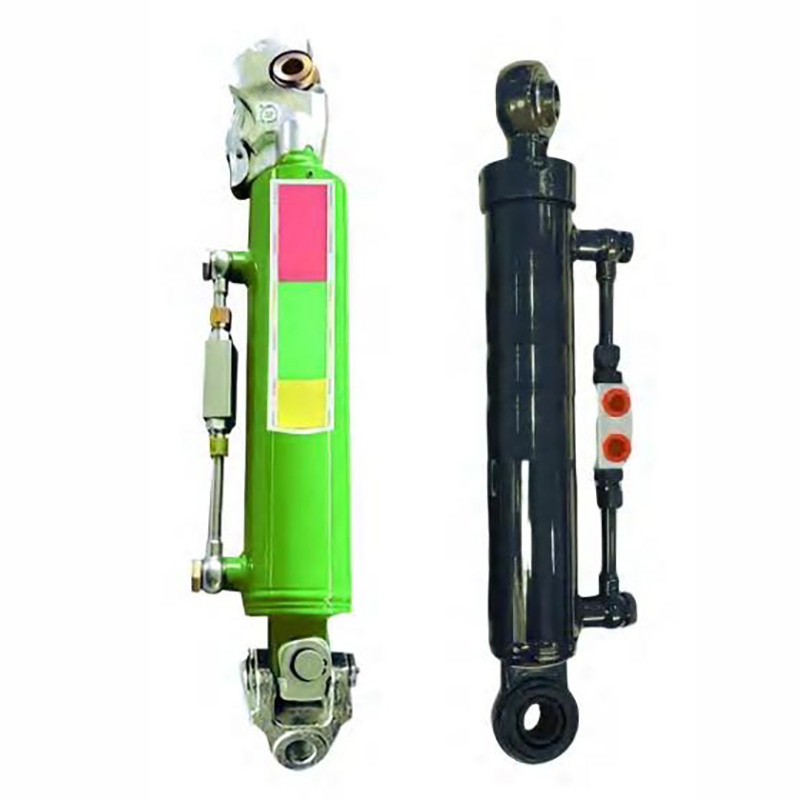

Center Link Cylinder	Center Link Cylinder
Specification	Specification
11545-300750	7335-300550

1. Active Implement Angle Control: Purpose: The core function is to actively extend or shorten the upper link, thereby tilting the attached implement forward or backward. Example: Shortening the cylinder: Pulls the top of the implement toward the tractor, tilting the implement's blade or working part upward. This can be used to reduce digging depth or "float" on uneven ground. Extending the cylinder: Pushes the top of the implement away from the tractor, tilting the working part downward. This increases digging force and depth. 2. Precision Depth and Grade Control: This is crucial for land leveling and grading implements such as box blades, motor graders, motor graders, and rear blades. The operator can fine-tune the cylinder to precisely control the amount of material cut or scraped by the implement, achieving a precise slope, crown, or level surface. 3. Maintaining Constant Downward Pressure: Unlike the main lift cylinder, which raises the implement, the upper link cylinder is used to apply downward force to the rear of the implement. This ensures that the implement remains firmly planted and continuously working, even on hard or uneven terrain, preventing it from "lifting up." 4. Automated Implement Functions (Tilt and Pitch): The cylinder can be connected to the tractor's hydraulic remote control (either a reversing valve kit or a dedicated circuit). This allows the operator to change the angle of the implement from within the cab without stopping the tractor, significantly improving efficiency in tasks such as: Backhauling with a box blade. Adjusting the angle of a garden rake. Controlling the pitch of a backhoe. 5. Enhanced Safety and Flexibility: A built-in disengagement or release function is provided. If the implement strikes a solid obstacle (e.g., a large rock), the hydraulic cylinder releases pressure by yielding, reducing the risk of damage to the implement or tractor's hitch point.

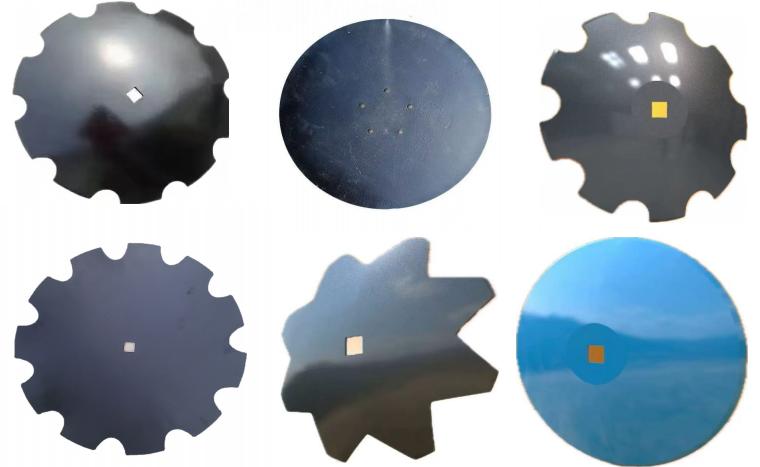

We also provide rake blade.

EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
