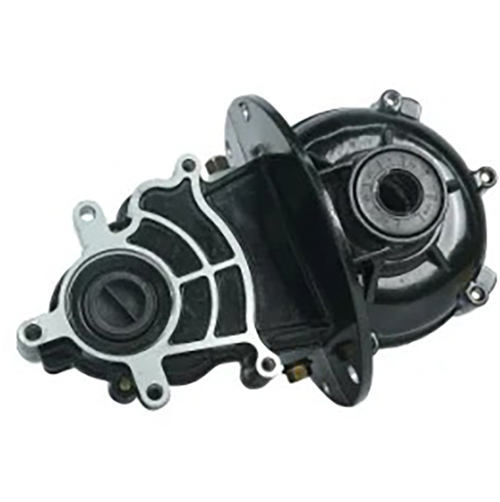

Ultra-quiet All-in-one Shifter (Old) Gear Reducer 18 Teeth 16 Teeth 6 Teeth Electric Tricycle Gearbox

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:344px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:-62px;margin-left:160px;width:469px;height:471px}#detail_decorate_root .magic-3{borde......Keywords:Ultra-quiet All-in-one Shifter (old) Gear Reducer 18 Teeth 16 Teeth 6 Teeth Electric Tricycle Gearbox - Buy Electric Tricycle Gearbox 18 Teeth 16 Teeth Electric Tricycle Gearbox electric Tricycle Gear Reducer Product on CMN Industry Inc

Send Inquiry

Product Description

Ultra-quiet

Superpower

Ultra-long service life

Waterproof and high temperature resistant

Item	Details	Item	Details
Spec	Front right, back left	Rear axle fitment	1000~1300mm
Speed ratio	1:8.3/20 1:9.3/23 1:11/28	Rated Power	120type 350W-1200W
Maximum torque input	38N.m	Rated voltage	48/60/72V 18/ 24 tubes
Matching half-shaft teeth	6/16/18

Gearing Arrangement	Harmonic/Drive axle connection
Output Torque	22-48N.m
Input Speed	3000-3600 rpm/min
Output Speed	3000-3600 rpm/min
Applicable Industries	Manufacturing Plant, Construction works
Warranty	Yes
Customized support	OEM, ODM, OBM
Product name	Second generation gearbox/Split differential/Split variable speed gear
Application	Tricycle, Four-wheel Vehicle & Small Car
certification	CE ,CCC
Use	Electric vehicles, electric tricycles, low-speed four-wheeled vehicles
Direction of	According to customer requirements
Speed ratio	1:8.6/1:8/1:9/1:10 1:8.3/20,1:9.3/23,1:11/28
Loading status	Front right, back left
Axle shaft spline	18 teeth, 16teeth big six teeth
Matching rear axle	integrated ,split rear axle
Macthing Motor	BLDC motor
Rated voltage	48/60V
Rated power	550/1000W

An electric tricycle gearbox is a key component in the drivetrain system of an electric tricycle. It plays a crucial role in transmitting power from the electric motor to the wheels, allowing the tricycle to move forward or reverse. Here are some important points about electric tricycle gearboxes: 1. Power transmission: The gearbox transfers power from the electric motor to the wheels by using a combination of gears. It allows the motor to operate at its optimal speed while providing the necessary torque to propel the tricycle. 2. Gear ratio selection: Electric tricycle gearboxes often have multiple gears or speed settings, allowing the rider to adjust the gear ratio based on the desired speed or terrain conditions. By selecting the appropriate gear, the rider can optimize the tricycle's performance for different riding scenarios. 3. Torque multiplication: The gearbox can multiply the torque generated by the electric motor, enabling the tricycle to overcome steep inclines or carry heavier loads. This torque multiplication is achieved through the gear reduction mechanism in the gearbox. 4. Efficiency and performance: A well-designed gearbox can improve the overall efficiency and performance of the electric tricycle. By selecting the right gear ratio and minimizing energy losses through efficient gear meshing and bearing arrangements, the gearbox helps maximize the tricycle's range and performance. 5. Durability and reliability: Electric tricycle gearboxes need to be durable and reliable to withstand the demands of daily usage. They should be designed to handle the torque and power generated by the electric motor and provide smooth and consistent power transmission. High-quality materials, precise manufacturing, and proper lubrication are essential for ensuring the gearbox's longevity and trouble-free operation. 6. Maintenance and service: Regular maintenance and inspection of the electric tricycle gearbox are important to ensure its optimal performance. This may include checking for proper lubrication, gear wear, and any potential issues that could affect the gearbox's operation. Prompt servicing or repair of any gearbox-related problems is crucial to prevent further damage and maintain the tricycle's functionality. 7. Safety features: Some electric tricycle gearboxes may incorporate safety features such as overload protection or torque limiters. These mechanisms can protect the gearbox and other drivetrain components from excessive stress or damage, enhancing the overall safety of the tricycle. It's worth noting that the specific design, configuration, and features of electric tricycle gearboxes can vary depending on the manufacturer and the intended use of the tricycle. Therefore, it's important to consult the tricycle's user manual or contact the manufacturer for detailed information about the gearbox in a specific electric tricycle model.

For more details, please click here to contact us!

Application of Electric Tricycle Gearbox

The application of electric tricycle gearboxes is primarily seen in electric tricycles or e-tricycles. Here are some common applications of electric tricycle gearboxes: 1. Passenger Transportation: Electric tricycles are widely used for passenger transportation in urban and rural areas, especially in regions where motorized transportation infrastructure is limited. The gearbox allows the tricycle to efficiently transfer power from the electric motor to the wheels, enabling smooth and comfortable rides for passengers. 2. Cargo Delivery: Electric tricycles equipped with gearboxes are commonly used for cargo delivery in urban settings. The gearbox helps in achieving the necessary torque to carry heavier loads and navigate through congested areas or narrow alleys. These tricycles are often used by courier companies, local businesses, and e-commerce platforms for last-mile delivery. 3. Commercial Applications: Electric tricycles with gearboxes find applications in various commercial sectors. They are utilized by street vendors, food delivery services, mobile advertising, and even ice cream vendors. The gearbox allows these tricycles to efficiently deliver goods or services, providing a cost-effective and environmentally friendly alternative to conventional vehicles. 4. Personal Transportation: Electric tricycles are also used for personal transportation purposes. They offer a stable and comfortable riding experience, making them suitable for individuals who require mobility assistance, such as seniors or people with mobility challenges. The gearbox ensures smooth power transfer, allowing users to easily navigate through different terrains. 5. Recreational and Tourist Activities: Electric tricycles with gearboxes are sometimes used for recreational purposes or as tourist attractions in certain areas. They may be utilized for guided tours, sightseeing, or leisurely rides. The gearbox enables riders to effortlessly traverse inclines or hilly terrains, enhancing the overall experience. 6. Green Mobility Initiatives: Electric tricycles, including those with gearboxes, are often part of green mobility initiatives aimed at reducing air pollution and promoting sustainable transportation. They offer an eco-friendly alternative to conventional gasoline-powered tricycles or motorcycles, contributing to cleaner and quieter urban environments. It's important to note that the specific application of electric tricycle gearboxes can vary depending on regional needs, regulations, and market demands. The versatility and flexibility of electric tricycles make them suitable for a wide range of applications, and the gearbox plays a critical role in ensuring efficient power transfer and performance in these applications.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
