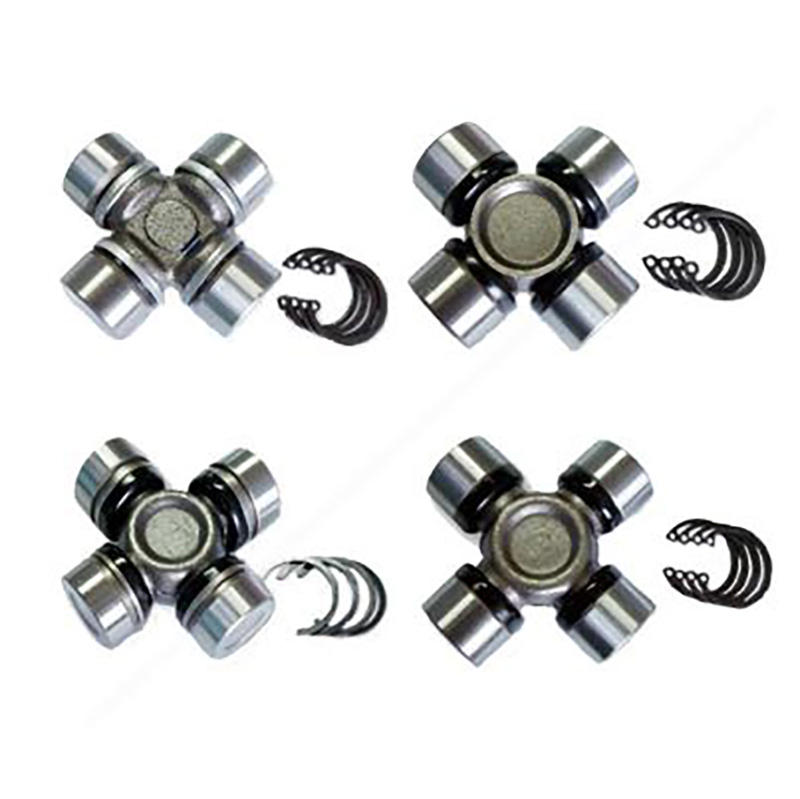

A universal joint, (universal coupling, U-joint, Cardan joint, Hardy-Spicer joint, or Hooke's joint) is a joint or coupling in a
rigid rod that allows the rod to 'bend' in any direction, and is commonly used in shafts that transmit rotary motion. It consists of a pair of hinges located close together, oriented at 90° to each other, connected by a cross shaft. The universal joint is not a constant velocity joint.

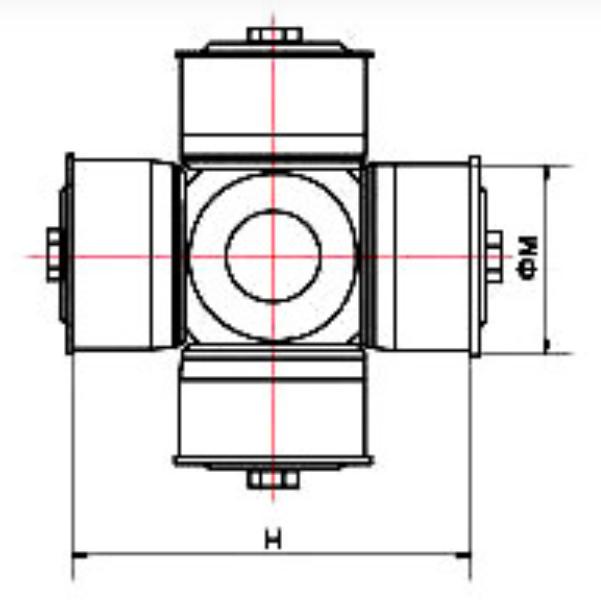

Type	φM(mm)	H(mm)
SWC160	65	136
SWC180	72	154
SWC200	82	171
SWC225	90	192
SWC250	100	214
SWC265	108	226
SWC285	115	243
SWC315	130	269
SWC350	145	299
SWC390	165	333
SWC440	185	377
SWC490	210	419
SWC550	240	472
SWC620	265	526

Type	φM(mm)	H(mm)
SWC-I 58	17	44
SWC-I 65	20	55
SWC-I 75	24	62
SWC-I 90	27	82
SWC-I 100	30	88
SWC-I 120	35	98
SWC-I 150	45	126
SWC-I 180	50	135
SWC-I 200	59	168
SWC-I 225	72	185

Constructional Feature 1. Reasonable structure, safe and reliable use. The use of an integral fork eliminates the weak link of bolts pressing the bearing seat (cover). It completely avoids the common malicious damage caused by loose or broken bolts. The service life is increased by 30%-50% compared with other types of couplings. 2. Bearing heavier weight. 3. Transmission efficiency is as high as 98.6%. It is used for high-power transmission, significantly saving energy and reducing power consumption. 4. Smooth transmission and low noise. The general noise is 30-40dB(A).

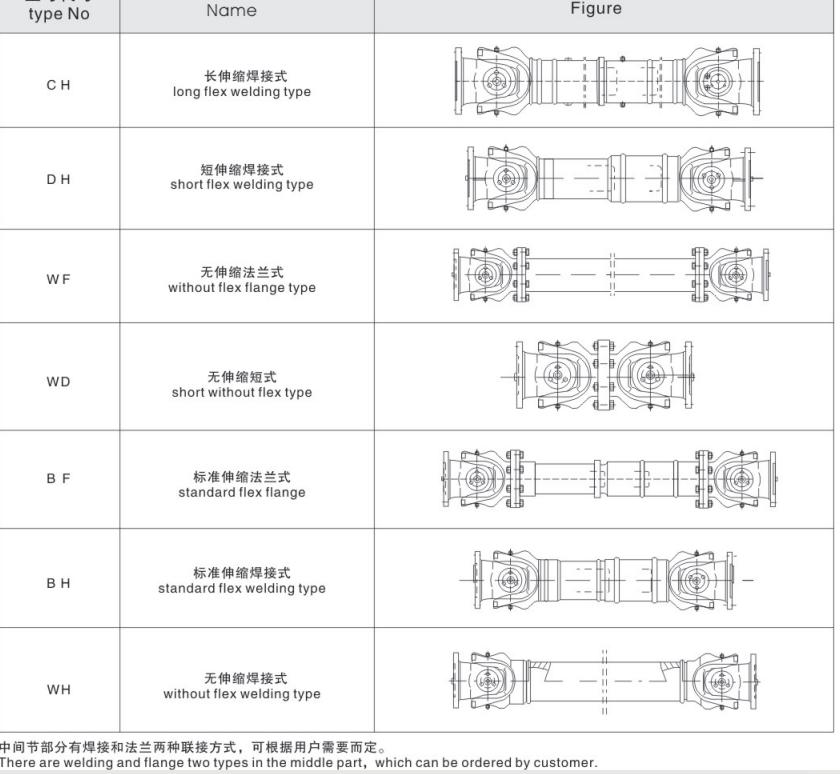

Universal couplings with spider is one of the most general coupling in common use. (β≤5°~45°) It has big angular compensation ability, compact and reasonable configuration, high transmission efficiency. In Practical application, according to the size of transfer torsion, it is divided into heavy, medium, light and small style scaly according to the torque magnitude transmitted in practical application. Heavy style is mainly used to metallurgy, heavy machinery, petroleum, engineering, hoisting and so on, Medium and light style are mainly used in auto car, machine too. and light machinery. Small style is mainly used in rolling part, for example, precision and control machine. The main difference between the style of universal coupling are the change of axletree seat and spider with the different shape of frame. In order to guarantee the synchrony of principal and subordinate parts, it is mostly be adopted the pair type in practical application. The connection way of the pair are weld and flange bolt. Whole fork universal couplings with spider (JB/T5513-91) Part axletree universal couplings with spider (JB/T3241-91) Whole axletree universal couplings with spider (JB/T3242-93) Small style double, single universal couplings with Spider(JB/T5901-91) Small style flex universal couplings with spider

Install

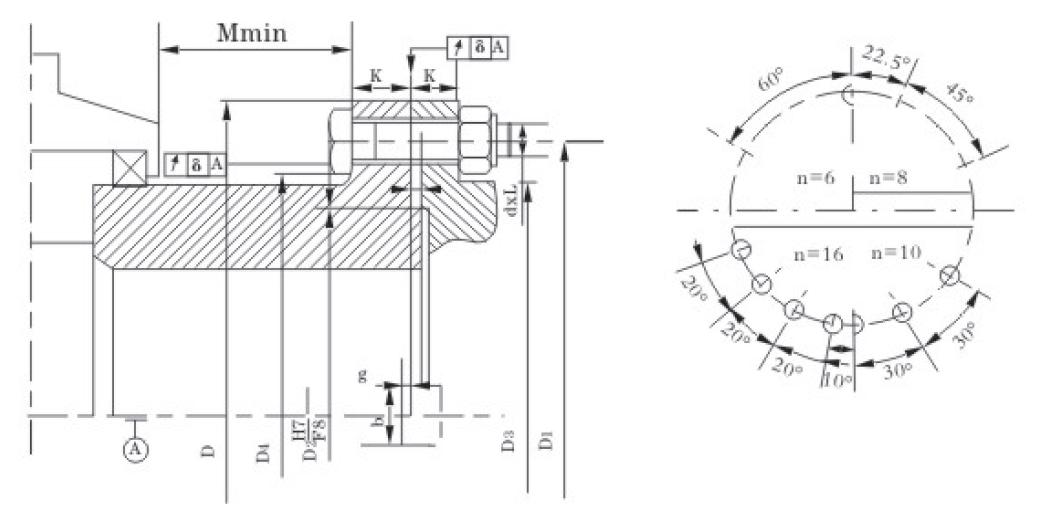

Universal Couplings joints flanges on the two ends by the high strength bolt and the nut.the beginnings and ends flange joint onother fittings.It fittings joint size and bolt pre-tight strength according to the following graph stipulations.Joins the bolt only can load from the fitting flange side, the nut is pre-tight by another side, its bolt machine capability is 10.9 levels, the nut machine capability is 10 levels.
