Product Description

Our vacuum pump can perfectly replace the kinney vacuum pump, the following is the corresponding model of kinney

TWO STAGE WATER-RING VACUUM PUMP
Our Model	KINNEY
LP40	KLRC100
LP55	KLRC125
LP75	KLRC200
LP115	KLRC300
LP200	KLRC525

What is a two-stage water ring vacuum pump The two-stage water ring vacuum pump uses the gas discharged from the first stage exhaust port to be inhaled by the second stage suction port, and then compressed and discharged by the second stage. The second stage is to reduce the exhaust pressure of the first stage, so as to improve the suction limit vacuum of the first stage. This is completely different from the ordinary water ring vacuum pump. Then the bearing, bearing bracket and cover are all made of stainless steel and aluminum bronze. The vacuum pump has anti-corrosion effect on extracting some acidic or corrosive gases. It is widely used in resin production enterprises and chemical enterprises. Two stage water ring vacuum pump is mainly used to pump and transport air and other gases, especially for gases containing a large amount of water vapor and other corrosive gases, such as vacuum distillation and drying in chemical industry, vacuum dehydration in light textile industry and paper industry. When it is used as the front pump of the supercharger, the application range of the supercharger can be greatly improved.

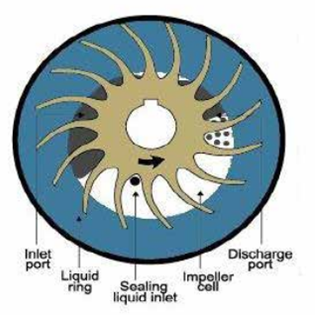

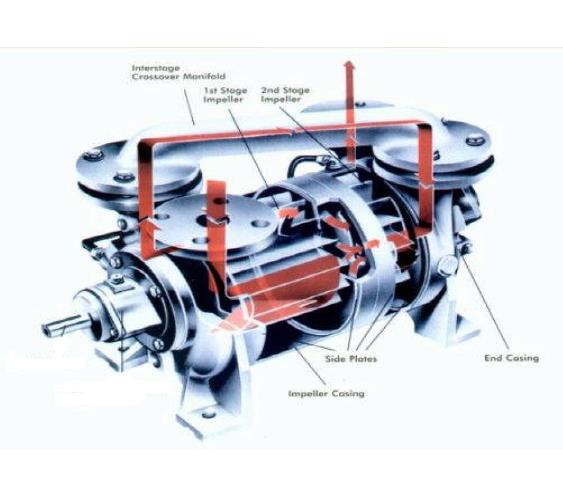

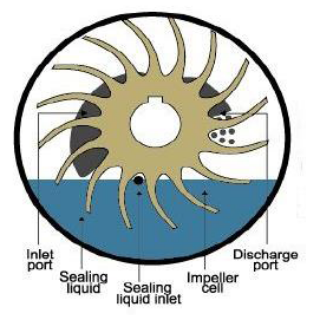

Working principle of two-stage water ring vacuum pump: In order to generate vacuum in the two-stage liquid ring vacuum pump, the multi blade impeller on the shaft is eccentrically positioned in the cylindrical shell, which is partially filled with sealing fluid When the shaft rotates, the centrifugal force generated by the rotating impeller generates a liquid ring. This force keeps the liquid ring on the inner wall of the pump chamber. Because the impeller is eccentric in the pump chamber, the depth of the blade entering the liquid ring decreases and increases with the rotation of the impeller. This increases the volume of the battery at the inlet end, creating a vacuum.On the discharge side, as the blade further enters the liquid ring, the volume of the impeller unit decreases. This will increase the pressure until it is discharged through the discharge port. The continuous flow of fresh sealing liquid is supplied to the pump through the sealing liquid inlet. The liquid will not be discharged from the first stage to the atmosphere. Instead, the first stage discharge enters the second stage through the manifold and through the discharge port in the intermediate plate between the first and second stage impellers.

Application

This type of pump is mainly used for extracting, pumping and conveying air and other gases. For example, vacuum evaporation and drying in chemical industry, vacuum dehydration in textile and paper industry, etc. It can be used as the pre inflation seal of Roots blower pump, and the application range of Roots blower pump can be greatly improved.

Hangzhou Ever-power Transmission Co., Ltd. is a manufacturer with decades of professional production experience of vacuum equipment. Its brand "Japanese business" has become one of the most influential brands in China. The company has strong technical force, professional technicians and decades of production experience, excellent processing equipment and strong awareness of quality management. Our products strictly implement ISO9001:2008 international quality system certification. So far, our factory has taken the lead in adopting German vacuum pump production technology. The core components are produced by the horizontal machining center and four axis vertical machining center imported from demagy, Germany. We provide our customers with vacuum equipment to meet their professional needs. Main products: single-stage rotary vane vacuum pump (XD, x), two-stage rotary vane vacuum pump (2x, 2XZ), roots pump (ZJ, jzp), water ring pump (SZ, 2BV, 2BEA), vacuum system (water ring closed-loop system, roots rotary vane unit, etc.), vacuum technology solution system. Main application fields of products: food machinery, pharmacy, refrigeration equipment, rubber machinery, solar photovoltaic, chemical vacuum heat treatment, smelting and other industries. We sincerely hope that we can continuously improve our service and provide customers with first-class vacuum products has always been our responsibility. We are willing to cooperate with you for common development and create brilliance.

Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )

Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
