Product Description

EVER POWER specializes in the development and production of hyperboloid right-angle reducers. These products feature a compact, aesthetically pleasing design; they are oil-resistant and durable, requiring no regular lubrication. The gear materials and craftsmanship are professionally guaranteed for a long lifespan; they offer low noise and minimal vibration; and they are widely adaptable, with options for non-standard voltages and frequencies available or customizable. EVER POWER right-angle reducers are available in the following types: F Series: Flange-Mounted L Series: Floor-Mounted, Foot-Mounted S Series: Dual-Flat, with flat mounting surfaces on both sides Motor Power Range: 0.1kW-3.7kW EVER POWER is equipped with a professional reducer design and R&D team and can undertake the development and production of non-standard reducers. We welcome new and existing customers to visit us and collaborate with us.

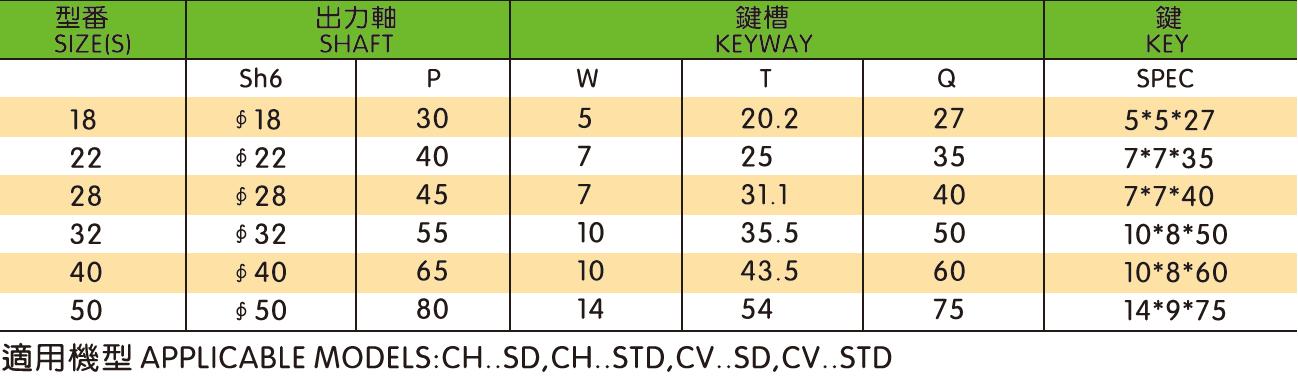

Output shaft

SIZE(S)	Shaft			Keyway			Key
	Sh6	P	W	T	Q	SPEC
18	Φ18	30	5	20.2	27	5527
22	Φ22	40	7	25	35	7735
28	Φ28	45	7	31.1	40	7740
32	Φ32	55	10	35.5	50	10850
40	Φ40	65	10	43.5	60	10860
50	Φ50	80	14	54	75	14975

Machanical data

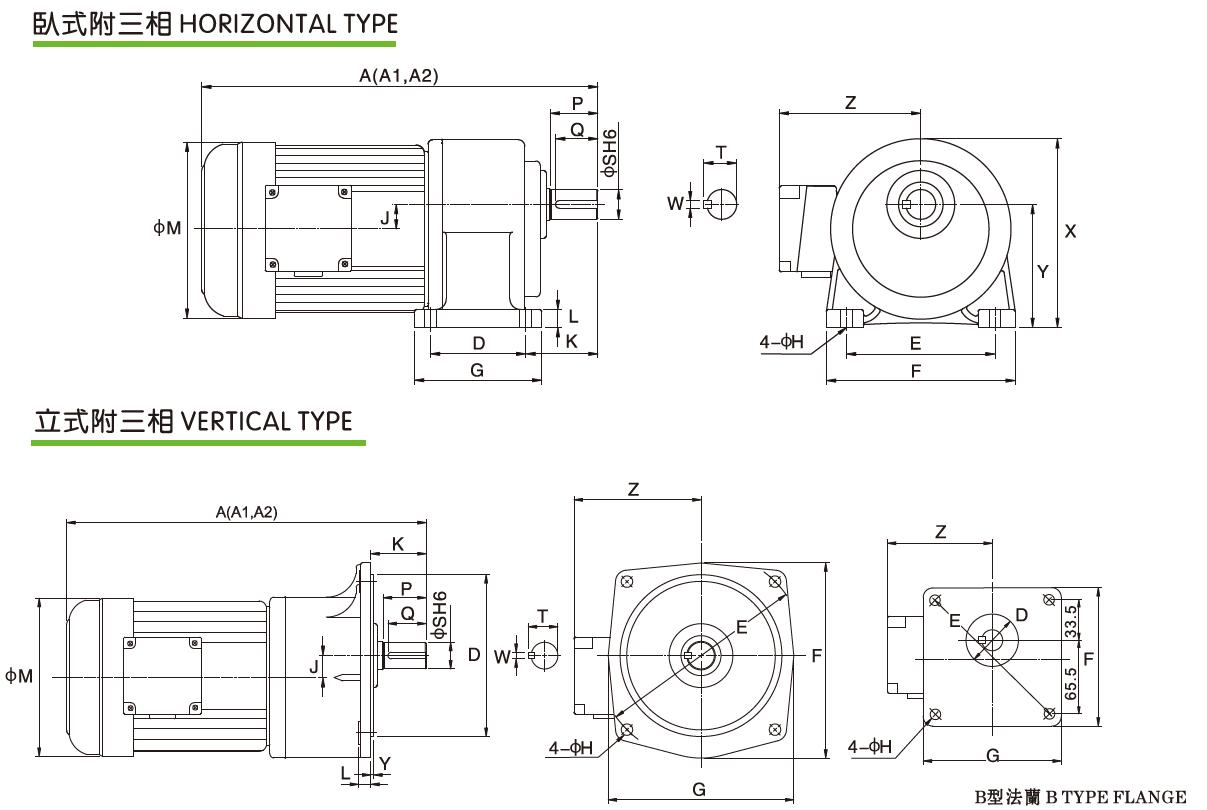

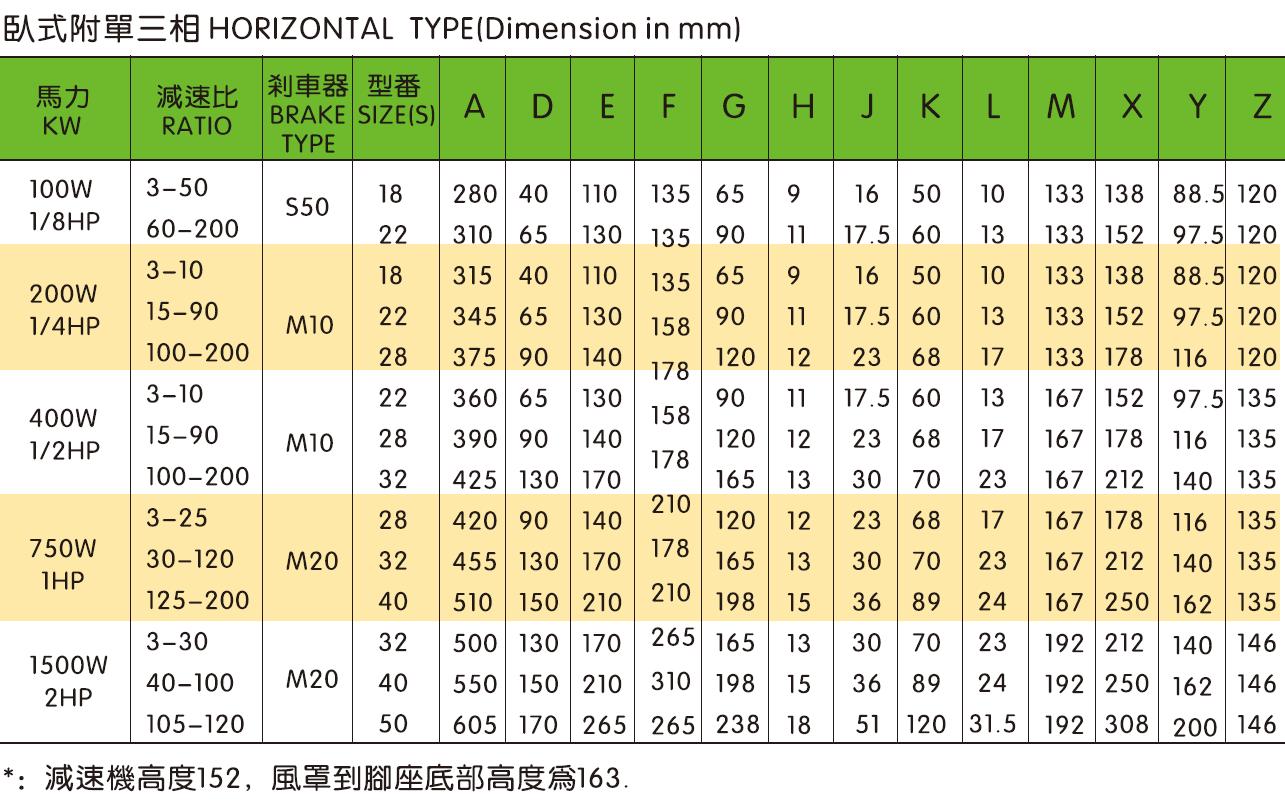

HORIZONTAL TYPE (Dimension in mm)

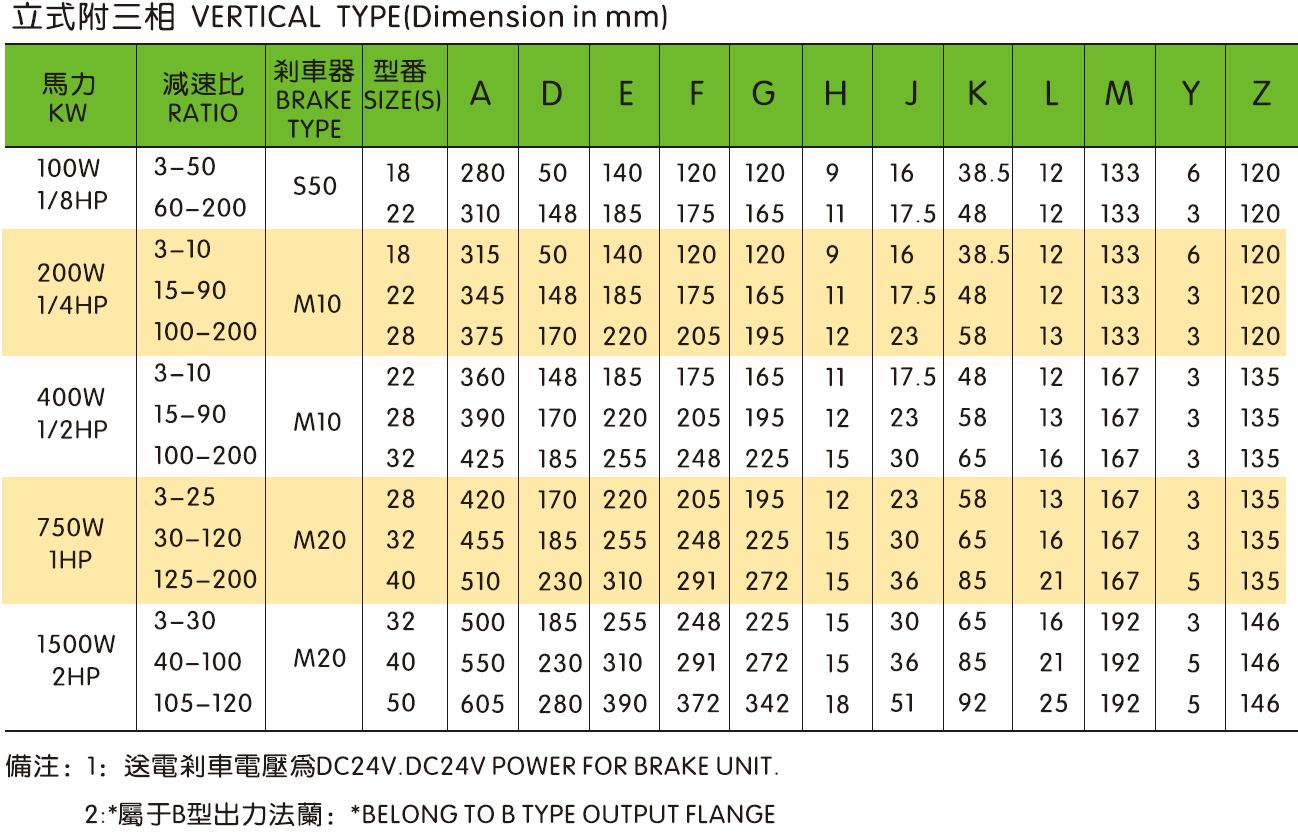

VERTICAL TYPE (Dimension in mm)

Application

Advantages of Reducer with Single-Phase Brake Motor
1. Compact & Lightweight Design – Ideal for space-constrained installations.

2. Single-Phase Power Supply (110V/220V) – Compatible with standard household/light industrial power, no need for 3-phase wiring.

3. Integrated Electromagnetic Brake – Provides instant stopping and holding torque, enhancing safety and control.

4. High Torque Output – Gear reduction increases torque while reducing speed for heavy-load applications.

5. Low Maintenance – Sealed construction reduces wear and contamination, extending service life.

6. Quiet & Smooth Operation – Precision gearing minimizes vibration and noise.

7. Easy Installation – Flange or base-mounted options simplify integration into machinery.

8. Cost-Effective – More affordable than 3-phase systems for small to medium-duty applications.

Applications of Reducer with Single-Phase Brake Motor
Packaging Machinery – Conveyors, labeling machines, sealing equipment.

Medical Devices – Hospital beds, lifts, and mobility aids requiring precise movement.

Food Processing – Mixers, fillers, and small conveyor systems.

Material Handling – Hoists, lifts, and automated sliding doors.

Textile Industry – Looms, winding machines, and spinning equipment.

Agricultural Equipment – Feed dispensers, small irrigation systems.

Commercial Appliances – Bakery machines, coffee grinders, vending mechanisms.

Automation & Robotics – Small robotic arms, positioning stages.

TERMINAL BOX DIRECTION

WIRE INLET DIRECTION

REDUCER AND VENTILATION INSTALLATION
