Wholesale Customized Assembled Adjustable Swivel Run Tee-EL-R-ED Hydraulic Fitting for Hydraulic Cylinder Parts

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:422.938144329897px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:422.938144329897px}#detail_decorate_r......Keywords:Wholesale Customized Assembled Adjustable Swivel Run Tee-el-r-ed Hydraulic Fitting For Hydraulic Cylinder Parts - Buy Assembled Adjustable Swivel Run Tee-el-r-ed Hydraulic Fitting,Hydraulic Fittings,Hydraulic Cylinder Parts Product on CMN Industry Inc

Send Inquiry

Product Description

When it comes to hydraulic cylinders, there are various hydraulic fittings that are commonly used. These fittings enable the connection and installation of hydraulic hoses, tubing, and other components to the hydraulic cylinder. Here are some of the commonly used hydraulic fittings for hydraulic cylinders: 1. Male and Female Pipe Fittings: Male and female pipe fittings are widely used in hydraulic systems. These fittings have threaded connections that allow for the attachment of hydraulic hoses or tubing to the hydraulic cylinder. They come in various thread sizes and types, such as NPT (National Pipe Thread) or BSP (British Standard Pipe), to match the corresponding threads on the cylinder ports. 2. Flange Fittings: Flange fittings provide a secure and reliable connection between the hydraulic cylinder and other components, such as valves or manifolds. Flanges have bolt holes that align with matching holes on the cylinder and are tightened together using bolts. Flange fittings ensure a leak-free connection and are commonly used in applications where high pressures or heavy loads are encountered. 3. O-ring Face Seal (ORFS) Fittings: ORFS fittings consist of a male fitting and a female fitting with an O-ring seal. The O-ring is compressed when the fittings are tightened, creating a reliable and leak-free connection. ORFS fittings are known for their high-pressure capabilities and resistance to vibration. They are commonly used in hydraulic systems where a secure and robust connection is required. 4. Push-to-Connect Fittings: Push-to-connect fittings, also known as quick-connect fittings or push-in fittings, offer a convenient and easy-to-use solution for connecting hydraulic hoses or tubing to the hydraulic cylinder. These fittings feature a push-to-connect mechanism that allows for quick and tool-free installation. Push-to-connect fittings are commonly used in applications where frequent disconnection and reconnection are required. 5. Banjo Fittings: Banjo fittings are unique fittings that feature a hollow bolt with a hole through its center. They are commonly used in hydraulic cylinders to connect hoses or tubing at an angle. Banjo fittings allow for fluid flow through the bolt, making them suitable for applications where space constraints or specific routing requirements exist. It's important to select hydraulic fittings that are compatible with the hydraulic cylinder and the specific hydraulic system requirements. Factors such as pressure rating, thread size, material compatibility, and installation convenience should be taken into consideration when choosing the appropriate hydraulic fittings for your hydraulic cylinder.

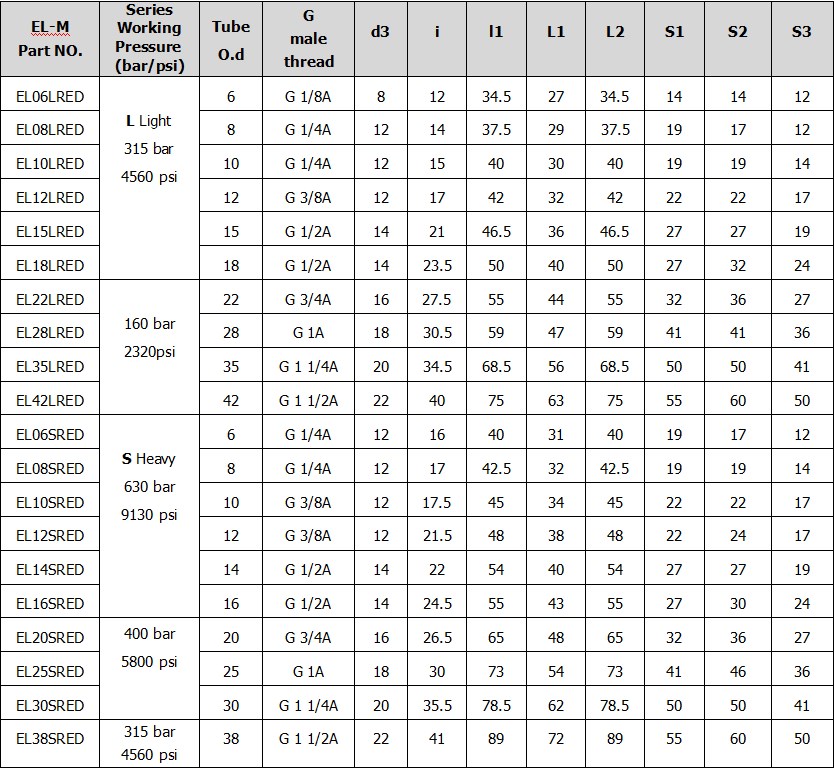

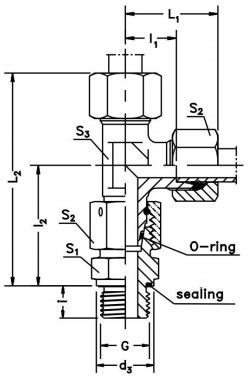

Characteristics of Assembled Adjustable Swivel Run Tee - EL-R-ED hydraulic fittings 1.Adjustable Swivel Design: Adjustable swivel run tees typically feature a swivel mechanism that allows rotational movement and flexibility. This enables easy adjustment and alignment of the fitting, facilitating precise positioning of the connected hydraulic lines or components. 2.Run Tee Functionality: The run tee design allows for the connection of three hydraulic components or lines. It typically consists of one inlet and two outlets, enabling fluid flow in multiple directions. 3.Flexibility in Flow Direction: The adjustable swivel feature of these fittings provides flexibility in directing the flow of hydraulic fluid. By adjusting the swivel angle, the flow can be redirected or aligned according to the specific requirements of the hydraulic system or equipment. This flexibility helps optimize fluid flow, minimize pressure drops, and enhance system performance. 4.Easy Installation and Maintenance: The adjustability of the swivel run tee simplifies installation and maintenance tasks. It allows for on-the-spot adjustments, eliminating the need for precise measurements or pre-determined fixed angles. During maintenance or repairs, the swivel feature makes it easier to access the connected components or areas, enhancing convenience and efficiency. 5.Leak Prevention: Proper alignment and secure connections are crucial for preventing fluid leakage in hydraulic systems. Adjustable swivel run tees, when properly positioned and tightened, ensure reliable and leak-free connections. This reduces the risk of hydraulic fluid loss, contamination, and potential system malfunctions.

Installation instructions The nuts of ROKE hydraulic connectors are all silver plated and coated with our patented nano lubricating layer. Through this method, the installation torque can be controlled within a reasonable range. Especially in narrow spaces or suspended operations, installation is very easy. In order to assemble correctly, the assembly instructions should be followed. Improper assembly may cause malfunctions or damage safety.

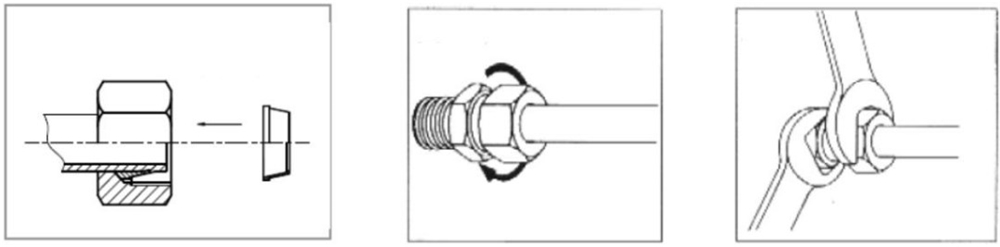

1. Cut the tube: 1/2 angle tolerance to the tube axis is permissible. Tube cutter is not recommendable.

2. Lightly remove chips and particles from the inside and outside cut edges of tube. Bevel up to 0.2mm × 45 is permissible.

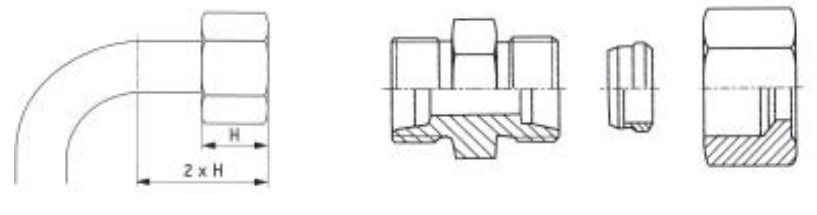

3. For tube bend, the minimum height from the straight pipe end to the bending radius must be at least twice the
height of the nut.
4. Lubricate thread and cone of the fitting body, ring and thread of nut.

Assembly

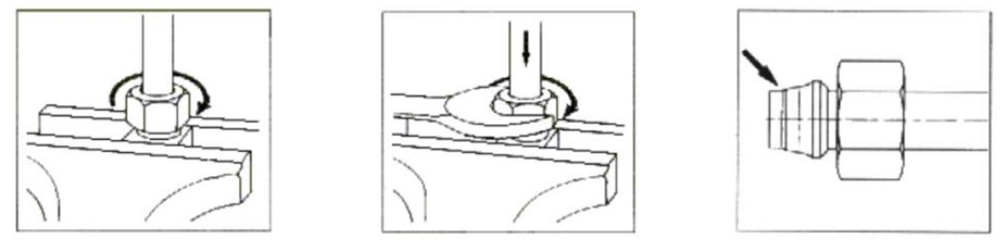

5. Slip nut and then ring onto the tube end. Ensure that the ring is placed correctly.
6. Screw nut manually onto fitting body until finger tight. Hold the tube against the shoulder in the cone of the fitting body.
7. Mark nut and tube for measuring the prescribed turns of the nut.
8. Tighten the nut 1 1/4 turns. Tube must not turn with tube. Stop edge of the ring limits over-tightening by increasing tightening torque.

Check & Final Assembly
9. Loosen nut and remove ring-mounted tube from fitting. And check if a visivle collar has formed on the pipe in
front of the first cutting edge. If not, tighten slightly more.
10. Insert the pre-assembled tube into the fitting.
While holding fitting body with a wrench, tighten nut approx. 1/4 revolution beyond the point of a clearly perceptible resistance.

EVER-POWER., founded in 2002, is located in Hangzhou City, one of the main manufacturers and exporters of hydraulic cylinders in China. With high-quality products and services, we have won a trustworthy reputation with customers all over the world on the basis of mutual benefit. We firmly believe that reputation and customers are our top priority. Through 16 years of efforts, we have won the trust of customers at home and abroad. At present, Jinwei hydraulic components have been exported to more than 30 countries and regions such as the United States, Canada, Russia, Poland, Germany, Italy, France, Austria, Brazil and Colombia. hydraulic cylinder has reliable quality, stable performance and durability. It is completely interchangeable with the original parts. At the same time, through our own product designers, we can provide customized products and accept OEM orders. We will continue to develop new products and improve our services. If you are interested in any of our products or need any similar products, please contact us or visit our website for more details. We look forward to the opportunity to become your supplier in the near future

Design

Our specialized staff is at your disposalfor technical consultancy relating your project and the best type of materials touse based on your application . We mostly work on drawing , preparing personalized projects according to customer needs

Once the project is defined , we produce our technical drawing by CAD 2D-3D systems and supply it to our customer for approval

Raw Materials

An accurate raw materials and seals selection brings to save costs and allow to produce high quality and powerful cylinders . For that reason , in the materials choice we consider the application field of our cylinder and the environment where it will work Specifically for chromed bars and tubes ,we work only with producers or reliable suppliers

Cylinders Production

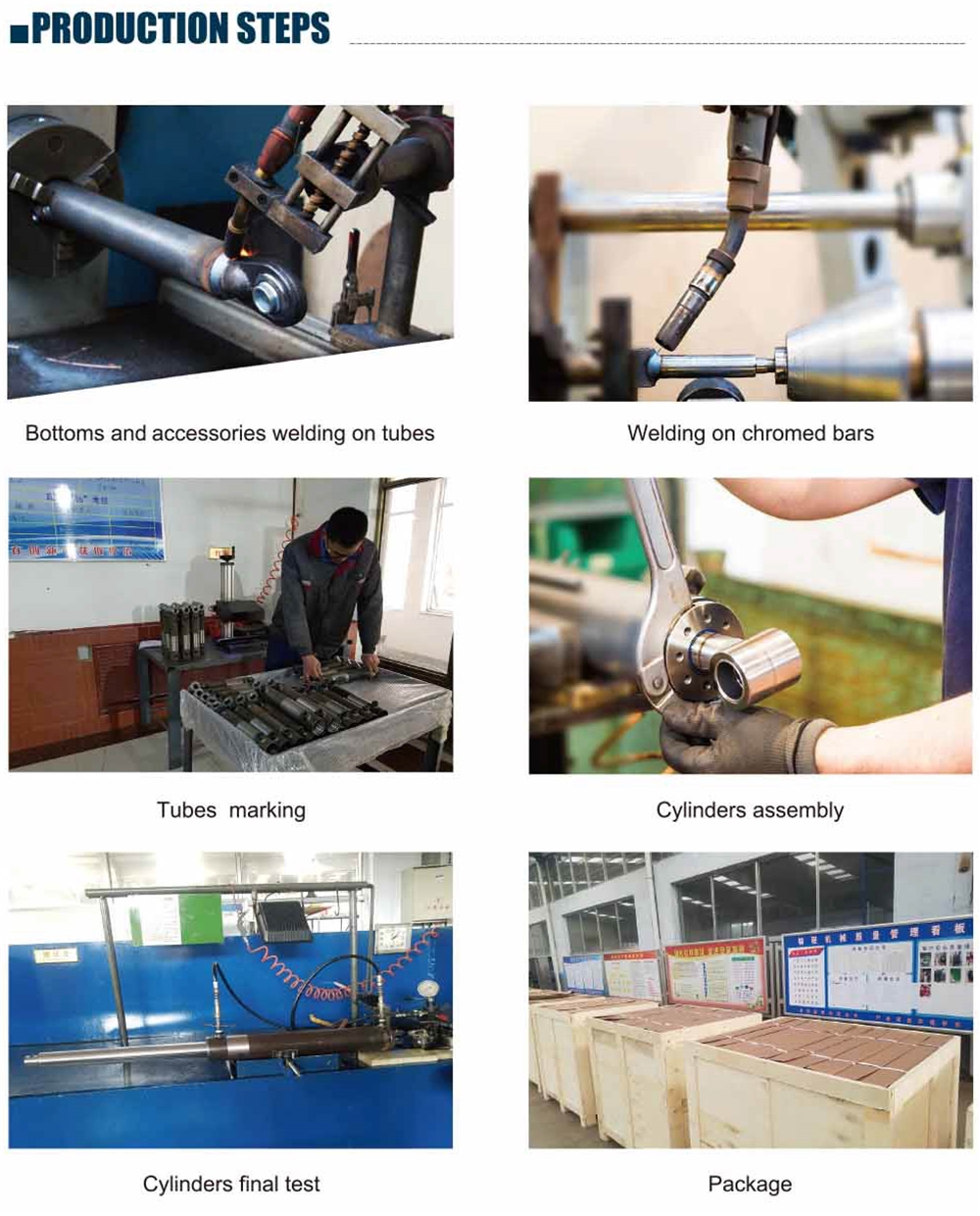

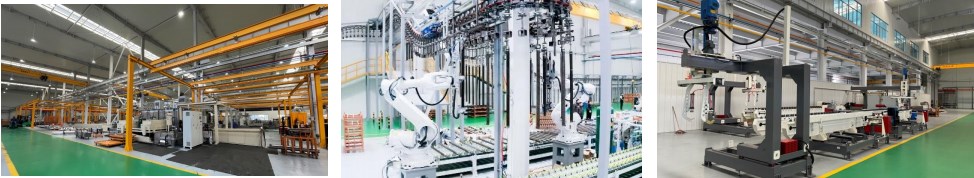

We produce about 120.000 cylinders per year and the whole process develops in our factory : cutting of raw materials ,turning and milling machining , components and accessories welding , cylinders mounting and final testing

All the above steps are made with latest generation CNC machines , welding robotized stations and specially made equipment.
