Product Description

Hang Steel Jack

A hang steel jack is a device commonly used in construction and industrial settings for lifting and supporting heavy loads. It typically consists of a steel frame or body with a lifting mechanism, such as a screw or hydraulic cylinder, to raise or lower the load. Hang steel jacks are often used in applications such as supporting beams, columns, or structures during construction or maintenance work.

This steel jack MJW has a simple structure and a convenient operating, which make it stable and quick to lift loads. Compared with the hydraulic jack, it has no potential danger such as descent with a load caused by oil leakage. As it adopts a mechanical structure for lifting loads, its safety factor is quite high. It is widely used for all kinds of equipments installation, lifting and descending work such as building facilities, river gate and etc. Before using this product, must firmly mount it on the sturdy substrate. This jack is not used to support the loads for long time. Please replace with other supporters when the loads be lifted to the appointed position in case of accidents.

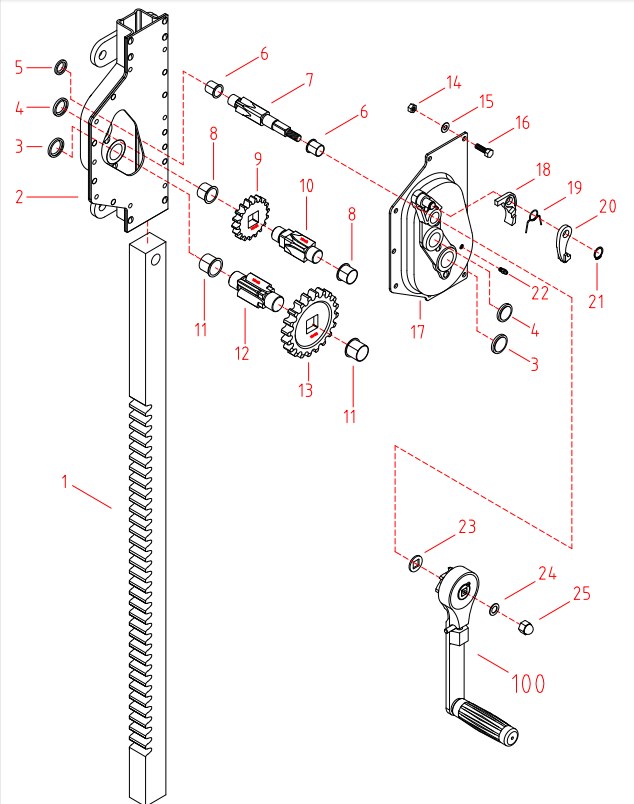

Exploded View (5t and 10t)

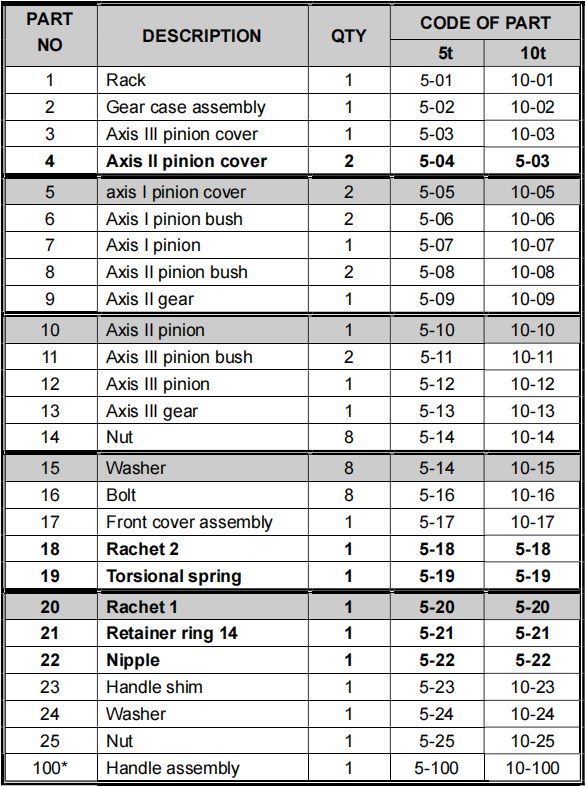

Part list (5t and 10t)

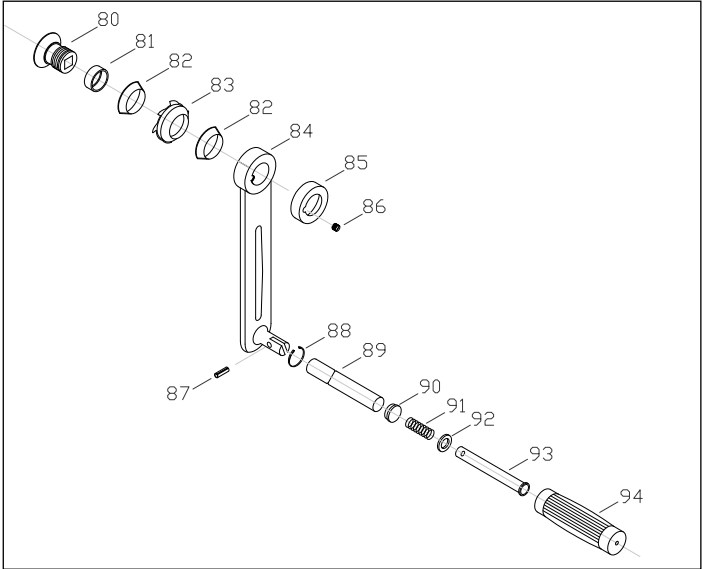

Exploded View of 100* -1 Standard Handle Assembly

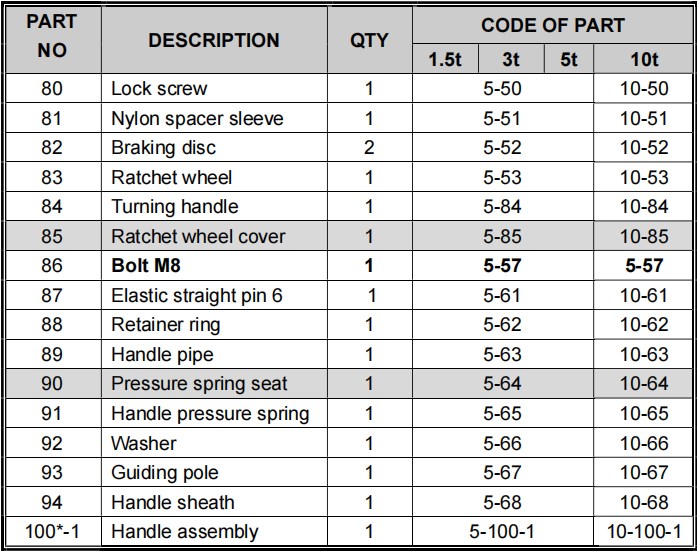

Part list of100*-1 Standard Handle Assembly

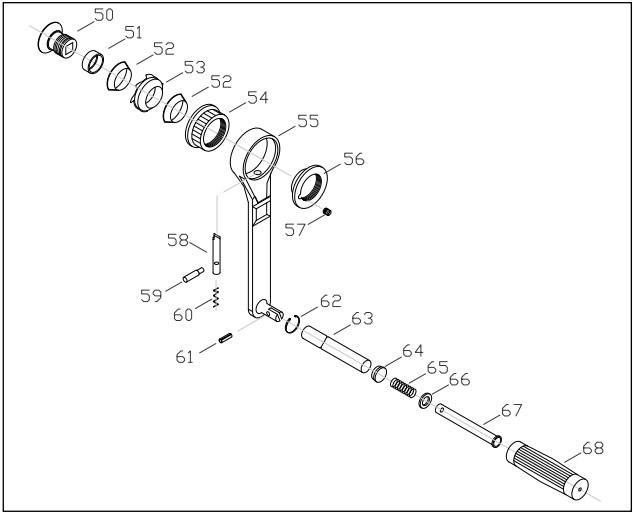

Exploded View of 100*-2 Safety Handle Assembly

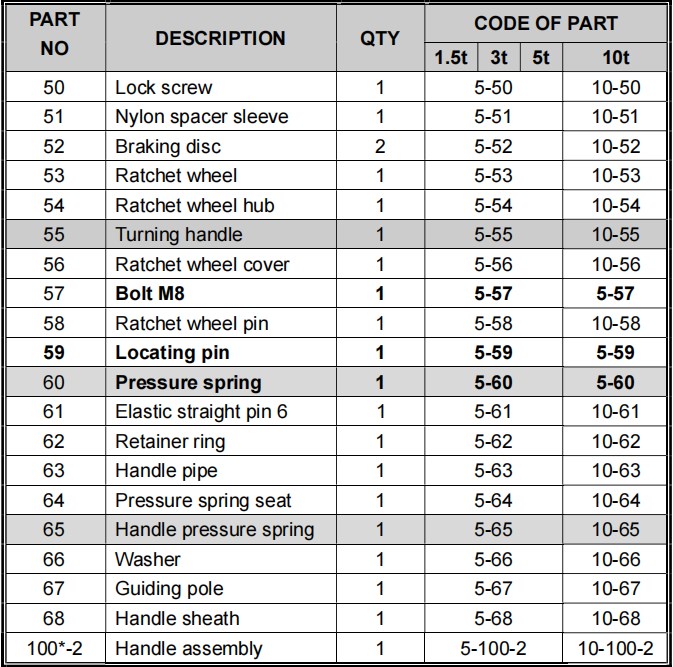

4 Part list of100*-2 Safety Handle Assembly

Advantages of machinery hang steel jack

1. Load Capacity: Machinery hang steel jacks are designed to handle significant load capacities, allowing them to lift and
support heavy machinery or equipment. They are often used in industrial settings where substantial weight needs to be lifted or adjusted.

2. Adjustable Height: Hang steel jacks provide the ability to easily adjust the height of machinery or equipment. By turning the screw mechanism or operating the hydraulic system, the jack can be raised or lowered to achieve the desired height, allowing for precise positioning or maintenance requirements.

3. Stability and Safety: Hang steel jacks are typically designed with a sturdy construction and stable base, ensuring stability during lifting operations. This helps prevent accidents or instability when supporting heavy loads, enhancing overall safety in the working environment.

4. Versatility: Machinery hang steel jacks are versatile and can be used in various applications. They can be employed to lift,level, or support machinery or structures in industries such as manufacturing, construction, automotive, and more. With
different load capacities and sizes available, they can accommodate a wide range of equipment types.

5. Durability: Hang steel jacks are often made from robust materials such as steel, ensuring durability and longevity. This
allows them to withstand heavy use, frequent adjustments, and harsh working conditions, providing reliable lifting
capabilities over an extended period.

6. Ease of Use: Hang steel jacks are generally easy to operate, making them convenient for users. Whether they utilize a manual screw mechanism or a hydraulic system, the controls are typically straightforward, allowing for efficient and precise adjustments.

7. Cost-Effective Solution: Compared to more complex lifting systems, machinery hang steel jacks can be a cost-effective option for lifting and supporting machinery or equipment. They offer a balance between performance, durability, and affordability, making them a practical choice in many scenarios.

For more types，Please click here！

How does machinery hang steel jack work?

A machinery hang steel jack, also known as a machine screw jack or machine lifting jack, typically operates using a screw mechanism. Here's a general overview of how a machinery hang steel jack works: 1. Components: A machinery hang steel jack consists of several key components. These typically include a threaded screw or spindle, a lifting nut that engages with the screw, a gear mechanism or handle for turning the screw, and a base or mounting plate for stability. 2. Screw Mechanism: The screw mechanism is the main component responsible for the lifting action. It usually consists of a long threaded screw or spindle, which is turned to raise or lower the load. The screw is typically made of steel and has a fine thread pitch to provide precise control over the lifting process. 3. Lifting Nut: The lifting nut is a component that engages with the threaded screw. As the screw is turned, the lifting nut moves along the screw, translating the rotational motion into linear motion. The lifting nut is typically attached to the load or a support platform, allowing it to be raised or lowered accordingly. 4. Turning the Screw: To operate the machinery hang steel jack, the screw is turned using a gear mechanism or a handle. This can be done manually by rotating the handle or using a power source, such as an electric motor or hydraulic system, depending on the specific design of the jack. 5. Lifting and Lowering: As the screw is turned, the lifting nut moves along the screw, causing the load or the support platform to rise or descend. The rate of lifting or lowering can be controlled by the speed at which the screw is turned. 6. Stability and Safety: Machinery hang steel jacks are designed with a stable base or mounting plate that provides support and prevents tipping or instability during the lifting process. Some jacks may also incorporate safety features such as locking mechanisms or load-bearing components to ensure the load remains secure and stable at the desired height. 7. Adjustability: The height adjustment of the machinery hang steel jack is achieved by turning the screw in the desired direction. By controlling the number of rotations or the distance the screw is turned, the user can achieve the desired height for lifting or supporting the machinery or equipment. It's important to note that the specific operation and features of machinery hang steel jacks may vary depending on the manufacturer and design. It's recommended to refer to the manufacturer's guidelines and instructions for the specific machinery hang steel jack being used to ensure proper and safe operation.

Turbine screw lift can be applied to many different industries and occasions, and is an effective way to carry out material transportation, equipment maintenance and cargo handling. The main application fields are listed below: Warehousing and logistics: The turbine screw elevator can transport the warehouse goods from the ground to the truck, or transport the goods from the truck/container to the warehouse. Industrial manufacturing: heavy industrial equipment and machinery can be lifted and adjusted from the ground to facilitate maintenance and repair. In addition, it can also be used for material handling in factories or process workshops. Commercial and retail: Supermarkets, shopping malls and other sales places can use turbine screw elevators to move goods to different floors, or move goods from/to vehicles. Health care: The turbine screw lift can be used in hospitals, clinics, research and development centers and other places to help improve efficiency and health quality. In short, the turbine lead screw elevator is widely used, involving many different industries and occasions, mainly in various object handling and transportation occasions. It has the advantages of heavy-load beam erection, high efficiency and space saving, which helps to improve staff efficiency, reduce work intensity and promote production efficiency.

Production process of turbine screw elevator

Design: according to the user's needs and requirements, design a special turbine screw lift scheme, including the design of turbine, screw, nut, support structure, control system, etc. Material preparation: according to the design requirements, prepare corresponding materials, such as turbine, screw rod, nut, platform, etc., and the materials shall comply with relevant national standards and requirements. Turbine manufacturing: generally, turbine materials are made of high-quality cast iron, steel and other specially processed materials, which are processed and shaped by CNC processing equipment. Manufacturing screw rod and nut: according to the design requirements, the screw rod and nut shall be manufactured, and the surface polishing and heat treatment shall be carried out. Platform processing and manufacturing: according to the design drawings, select the corresponding materials and shapes, and carry out shearing, welding, polishing and other processes. System assembly: assemble the manufactured turbine, screw rod, nut, platform and other components, and install the control system for testing and quality inspection. Commissioning and acceptance: The equipment shall be commissioned and accepted by professional personnel to ensure that the equipment meets the design requirements and meets the safety and quality standards. Delivery and installation: packaging and logistics delivery shall be carried out for the accepted equipment, and installation and commissioning shall be carried out at the customer's site to ensure the normal operation of the turbine screw lift. In short, design, material preparation, manufacturing and assembly are all crucial to the production process of the turbine screw lift. Any problem in any link will seriously affect the performance and quality of the turbine screw lift produced.
