Product Description

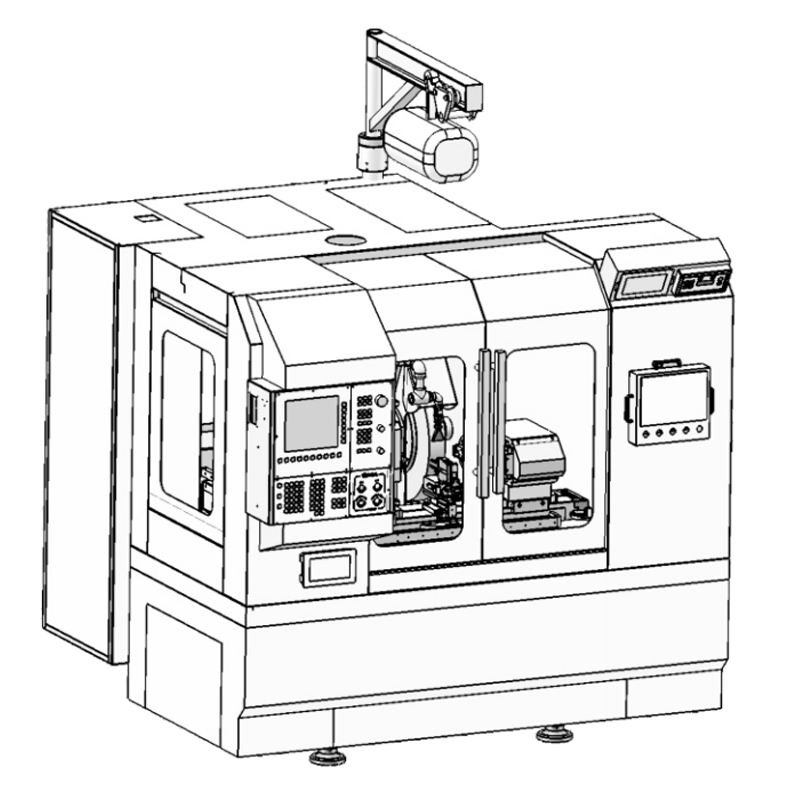

LWX5 CNC Thread Grinder

WMX series CNC cylindrical grinding machine is applicable for precise grinding of complexshaft part, stepped part, outer cylinder of tools, especially for outer cylinder of tap threadand milling tools.

Choosing Beiping machine with automatically changing Feeder, CNC three-axismanipulator, or RB6 six-axis multi- functional robot, then also with our online measurement options, small batch production or long-time unmanned automatic grinding can be easilyrealized.

Direct Drive / Linear Motors are also optional for work piece Axis (B Axis), and linear axis.An extra obvious Accuracy is created by the application of Heidenhain / Renishaw scale.Granite table is equipped for anti-collision purpose, which also reduces the negative effectcaused by temperature changes.

Our three-Axis coupling machine can grind non-cylindrical cam surfaces,improve grindinginterpolation accuracy, and ensure high tap-form, matched roughness on surface, andGrinding precison.

Grinding Spindle			Tools Range ( Grindable Too depends on its Type and Machining flequirement)
Single Spindle Tap Hole	1:5	Taper Thread	M6-M20
Power	7.5/11kw	Diameter	200mm
Diameter of Grinding Wheel	600*305mm	Length	220mm
Travel of Linear Axis			Linear Axis Controlled Resolution	0.001/0.0001mm
X Axis	300mm	Rotary Axis Controlled Resolution	0.001°
Y Axis	180mm	Linear Axis Re-Positioning Resolution	0. 0006-0. 0026mm
Rotary Axis (C Axis)			Rotary Axis Re-Positioning Resolution	1.8-8”
Standard Center Height	180mm	Automatic Loader
Max.Rotation Speed	800RPM	Diameter of Taper Thread	M6-M20
Standard Tap Hole	MT4#	Max. Length ofWork Piece	30-150mm
Measurement System ( Optional)			Connected Loading
Probe	RENISHAW/MARPOSS/XF	380V150Hz	ca.15kw
In-process measurement	MARPOSS	Size
Scale ( Optional)	HEIDENHAIN/RENISHAW	LengthxWidth	2000x1700mm
Controller	BPSYNTEC/FANUCISIEMENS	Height	1900mm
Drive and Motors	YASKAWA	Total Weight( Depends an the Configuratian )	ca.2600kg
