Wpa 80 1:40 Ratio Gearbox Nmrv Worm Gear Box Reducer

Product Description

Product Information

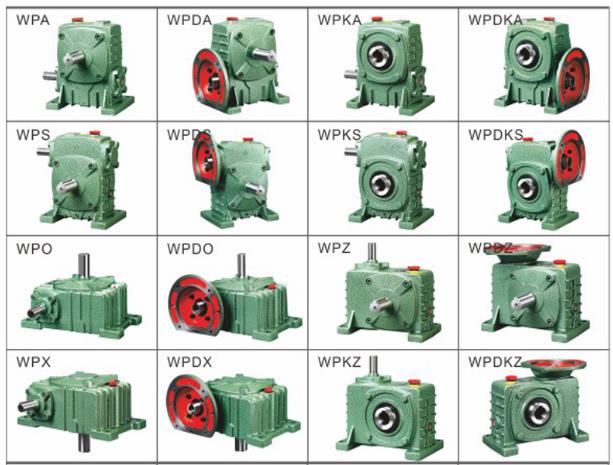

<img src='/upload/2/info/A73f59aeba88f43b99e881d6396b426001.jpg' alt='WPA 80 1:40 Ratio Gearbox NMRV Worm Gear Box Reducer' />

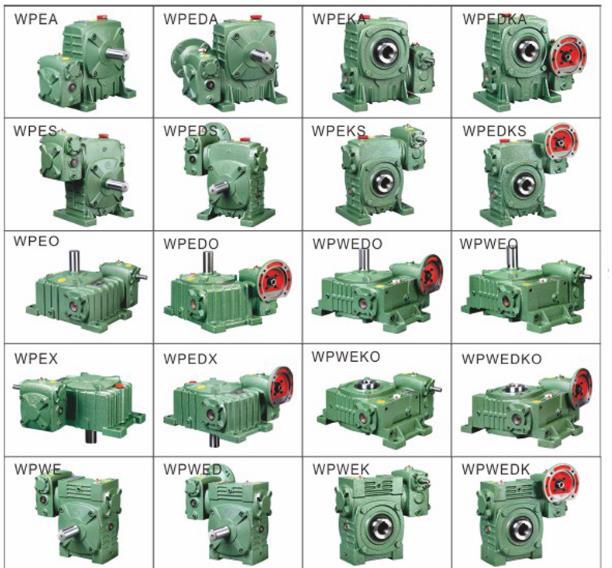

<img src='/upload/2/info/A84e9d7cb895043af89f064fc00b0b340c.jpg' alt='WPA 80 1:40 Ratio Gearbox NMRV Worm Gear Box Reducer' />

WP series reducer, worm is made of 45 # high quality steel by heat treatment, and worm wheel is cast with tin bronze. It has good wear resistance, especially in bearing capacity. It is mainly suitable for deceleration transmission of various mechanical equipment such as plastics, metallurgy, beverage, mine, lifting and transportation, chemical construction and so on.
FEATURES
--Drive smoothly, vibration, impact and noise are small, deceleration ratio is large, versatility is wide, and can be used with a variety of mechanical equipment.
--Large transmission ratio can be obtained by single-stage transmission, and the structure is compact. Most types of reducers have better self-locking performance. Braking devices can be saved for mechanical equipment with braking requirements.
--The meshing friction loss between worm tooth and worm gear tooth surface is larger, so the transmission efficiency is lower than that of gear, easy to heat and high temperature.
--Higher requirements for lubrication and cooling.
--Good compatibility, worm gear and worm are manufactured according to national standards, bearing, oil seal and other standard parts are used.

For more models, please click here!

Applicable Industries	Energy & Mining
Gearing Arrangement	Worm speed reducer
Output Torque	19-2745N.M
Input Speed	1400RPM
Output Speed	14-186RPM
Place of Origin	China
China	Zhejiang
Brand Name	EPG
Product name	Speed Reducer
Ratio	1:10,15,20,25,30,40,50,60
Weight	4-360 KG
