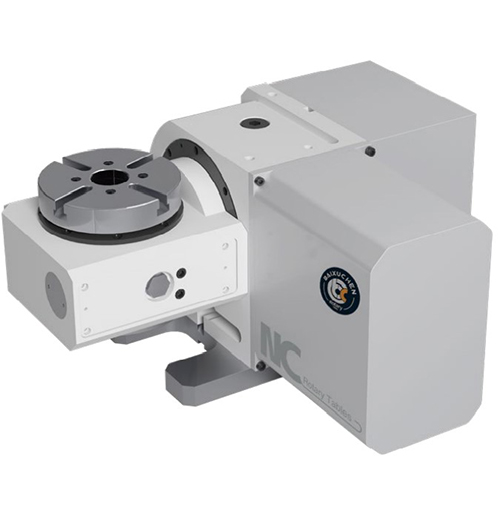

WT-RT150 Attractive Price New Type China Industrial Cnc Machining Center 5 Axis Accessories

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:347px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:-41px;margin-left:161px;width:400px;height:411px}#detail_decorate_root .magic-3{borde......Keywords:Wt-rt150 Attractive Price New Type China Industrial Cnc Machining Center 5 Axis Accessories - Buy Cnc Machining Center 5 Axis cnc Machining Center Accessories china Cnc Machining Center Product on CMN Industry Inc

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

Product Model	WT-RT150	Servo motor (optional)	β4i HF-54;β8i HF-104
Panel Size	Φ150mm	Reduction Ratio	1:90 ;1:90
Disk Aperture	Φ50mm	Maximum Rotation Speed Of Worktable	55.5r.p.m ; 55.5r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	160mm	Segmentation Accuracy	15″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	40H7mm	Locking Method	5Kg/cm²; 5Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	10Kg/m ; 25Kg/m
Net Weight (about)	95Kg	Allowable Cutting Force	18Kg.m ; 55Kg.m
Horizontal placement	40KG	Placement	20KG
