WT-RT170 Proper Price Metal Vertical Cnc 5 Axis Machining Center Accessories

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:289px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:-25px;margin-left:162px;width:324px;height:320px}#detail_decorate_root .magic-3{borde......Keywords:Wt-rt170 Proper Price Metal Vertical Cnc 5 Axis Machining Center Accessories - Buy Cnc 5 Axis Machining Center vertical Machining Center Cnc cnc Machining Center Price Product on CMN Industry Inc

Send Inquiry

Product Description

Five axis linkage machining

High segmentation accuracy, high performance and high efficiency

Strong braking system, Optional hydraulic brake

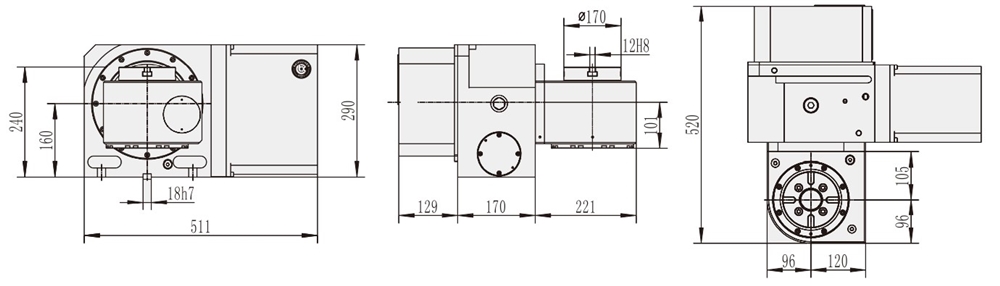

Product Model	WT-RT170	Servo motor (optional)	β4i HF-54;β8i HF-104
Panel Size	Φ170mm	Reduction Ratio	1:90 ;1:120
Disk Aperture	Φ50mm	Maximum Rotation Speed Of Worktable	55.5r.p.m; 33.3r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	240mm	Segmentation Accuracy	15″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	18H7mm	Locking Method	5Kg/cm²; 35Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	31Kg/m ; 140Kg/m
Net Weight (about)	120Kg	Allowable Cutting Force	18Kg.m; 55Kg.m
Horizontal placement	75KG	Placement	40KG

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.

FOR MORE DETAIL, PLEASE CONTACT US.
