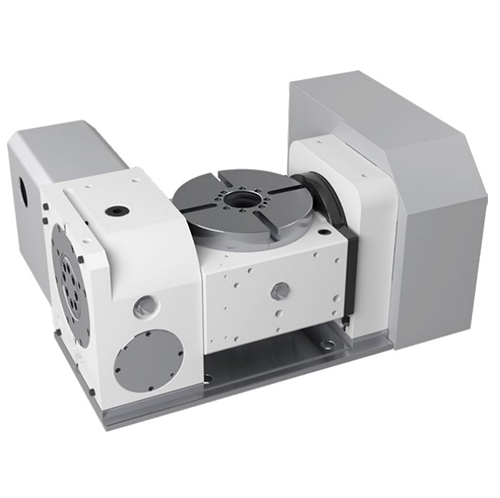

WT-S200 New Arrival Latest Design China Metal Industrial 5 Axis Cnc Machining Center Accessories

#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:307px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:-55px;margin-left:168px;width:422px;height:421px}#detail_decorate_root .magic-3{borde......Keywords:Wt-s200 New Arrival Latest Design China Metal Industrial 5 Axis Cnc Machining Center Accessories - Buy Cnc Machining Center 5 Axis,Cnc Machining Center Accessories,China Cnc Machining Center Product on CMN Industry Inc

Send Inquiry

Product Description

High precision, high performance, high efficiency

Five axis machining, modular design

Optional fixture oil circuit, Optional hydraulic brake

Product Model	WT-S200	Servo motor (optional)	β4i HF-54;β8i HF-104
Panel Size	Φ200mm	Reduction Ratio	1:90 ;1:90
Disk Aperture	Φ55mm	Maximum Rotation Speed Of Worktable	55.5r.p.m ; 55.5r.p.m
Center Trough Hole	Φ45mm	Minimum Setting Angle	0.001°deg
Disk Height	247.5mm	Segmentation Accuracy	20″sec;30″sec
Disk T-Slot	12H8mm	Repeat Positioning Accuracy	4″sec;4''sec
Positioning Button	14H7mm	Locking Method	5Kg/cm²; 5Kg/cm²
Tilt Axis Angle Range	-45 ~110°	Brake Torque	31Kg/m ; 31Kg/m
Net Weight (about)	155Kg	Allowable Cutting Force	18Kg.m ; 18Kg.m
Horizontal placement	80KG	Placement	50KG
